InteliLite4 AMF20 Global Guide
48

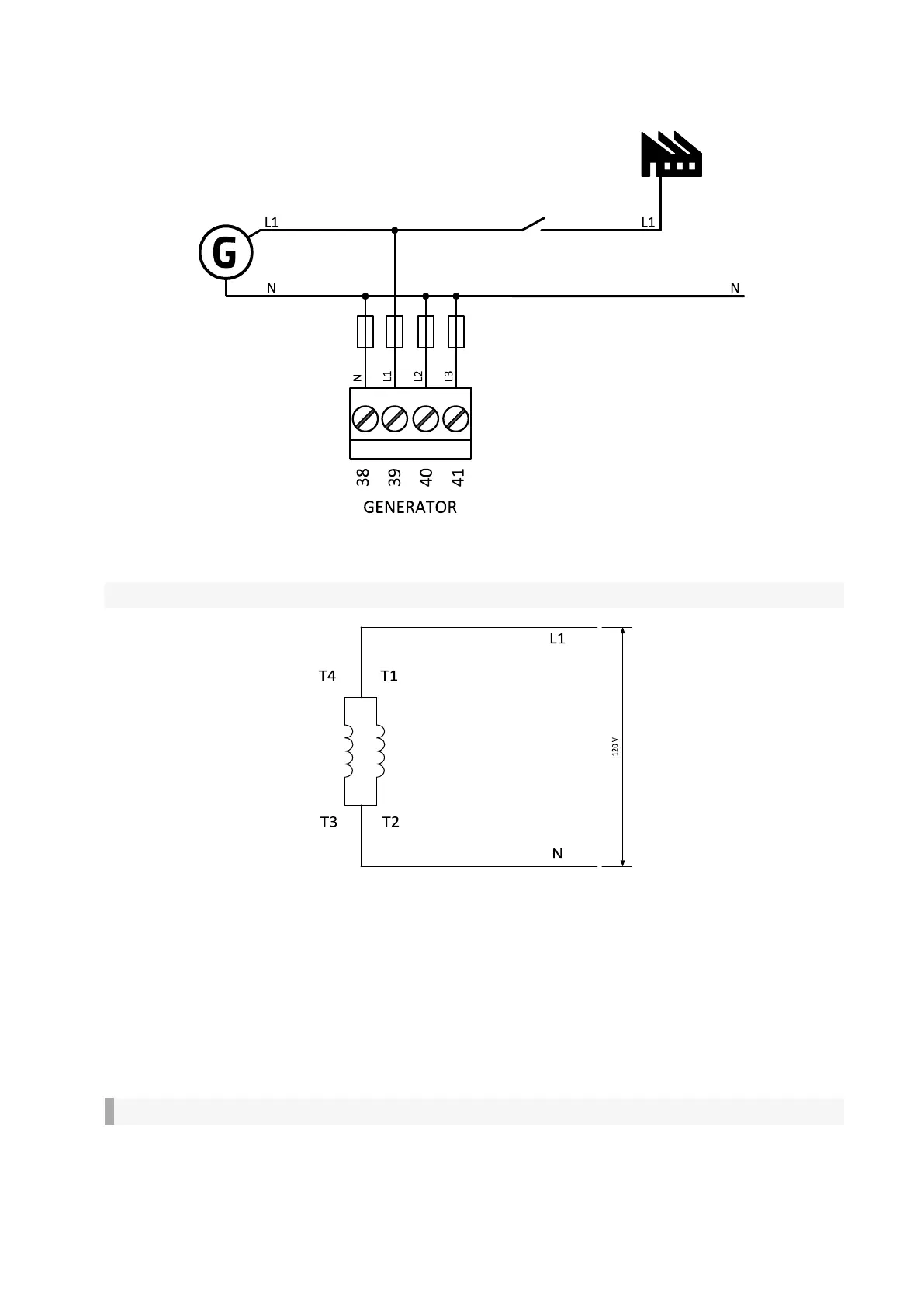

Connection Type: Mono Phase
Image 4.39 Mono phase application
Note: Fuse on "N" wire is not obligatory but recommended.
Image 4.40 Typical Mono Phase generator wiring
4.4.6 Magnetic pick-up
A magnetic speed sensor (pickup) is the most common method of engine speed measurement. To use this
method, mount the pickup opposite the engine flywheel, connect the cable to the controller as shown on the
picture below and adjust the setpoint Gear Teeth (page 215) according to the number of teeth on the
flywheel.
For the details about the pick-up input parameters see Technical data on page 198.
IMPORTANT: To ensure proper function use a shielded cable.
