ComAp InteliLite 4 AMF 20 User Manual

InteliLite4 AMF20 Global Guide
24
4.3 Terminal Diagram
① GENERATOR
CURRENT
MEASUREMENT
② GENERATOR
VOLTAGE
MEASUREMENT
③ MAINS VOLTAGE
MEASUREMENT
④ BINARY INPUTS
T30 COM T38 N T42 N T46 BI1
T31 L1 T39 L1 T43 L1 T47 BI2
T32 L2 T40 L2 T44 L2 T48 BI3
T33 L3 T41 L3 T45 L3 T49 BI4
T50 BI5
T51 BI6

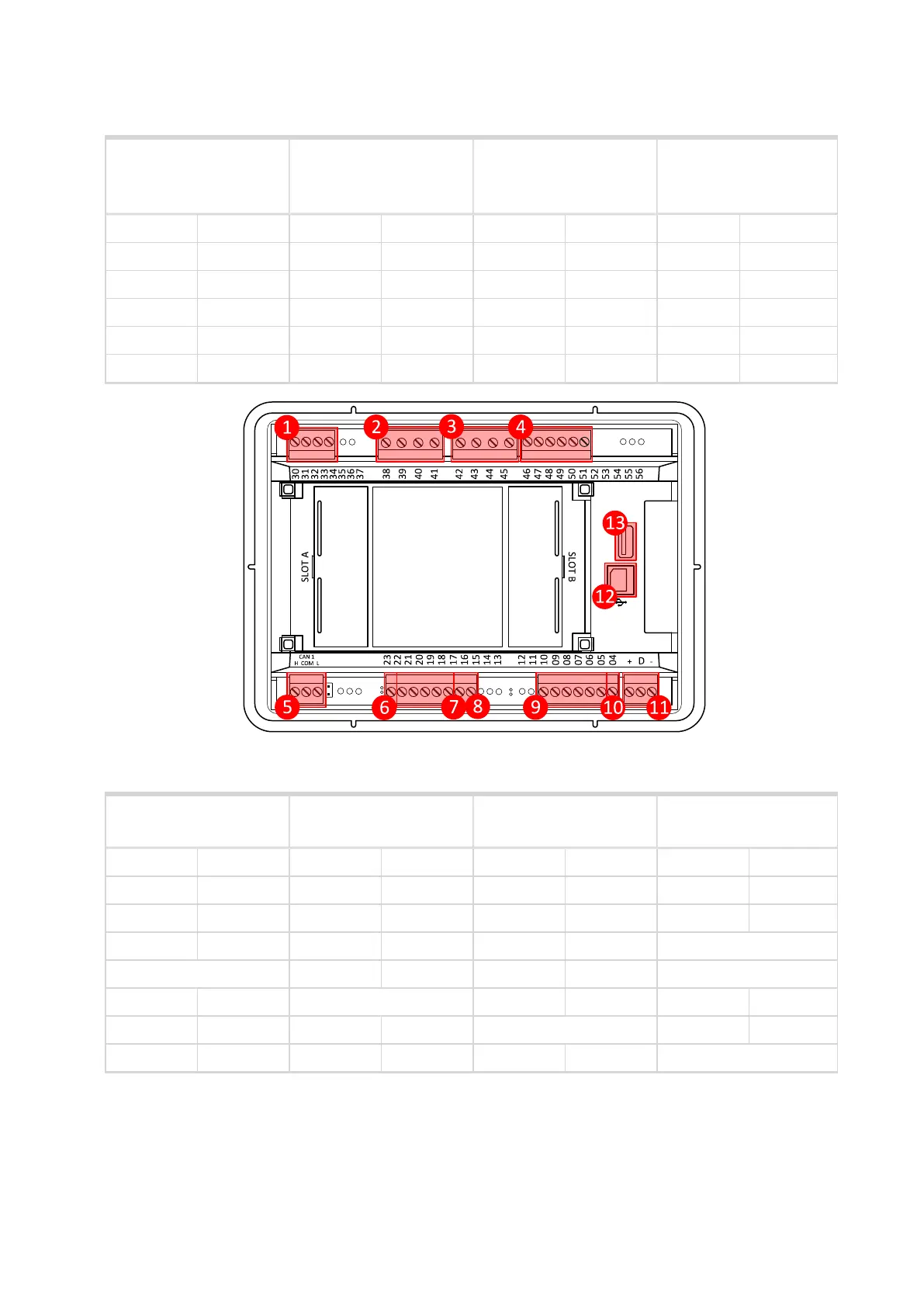

Image 4.1 Terminal diagram for InteliLite 4 AMF 20
⑤ CAN1 ⑦ ANALOG INPUTS ⑨ BINARY OUTPUTS ⑪ POWER SUPPLY,
D+
T27 L T22 N/A T10 BO6 T01 BATT -
T28 COM T21 AI3 T09 BO5 T02 D+
T29 H T20 AI2 T08 BO4 T03 BATT +
T19 AI1 T07 BO3 ⑫ USB
⑥ +5V T18 ACOM T06 BO2 ⑬ USB HOST
T23 +5V ⑧ RPM T05 BO1
T17 RPM IN ⑩ E-STOP
T16 RPM GND T04
