will not trigger showing the screen. The screen is then shown until the operator switches it to another one.
Alarm list screen has lower priority so even if a new alarm appears, the After-treatment screen is still
displayed. To avoid displaying a blank screen, inactive lamps are represented by "dotted" icons. For no active
lamp the screen shows all dotted icons. Please see examples below:

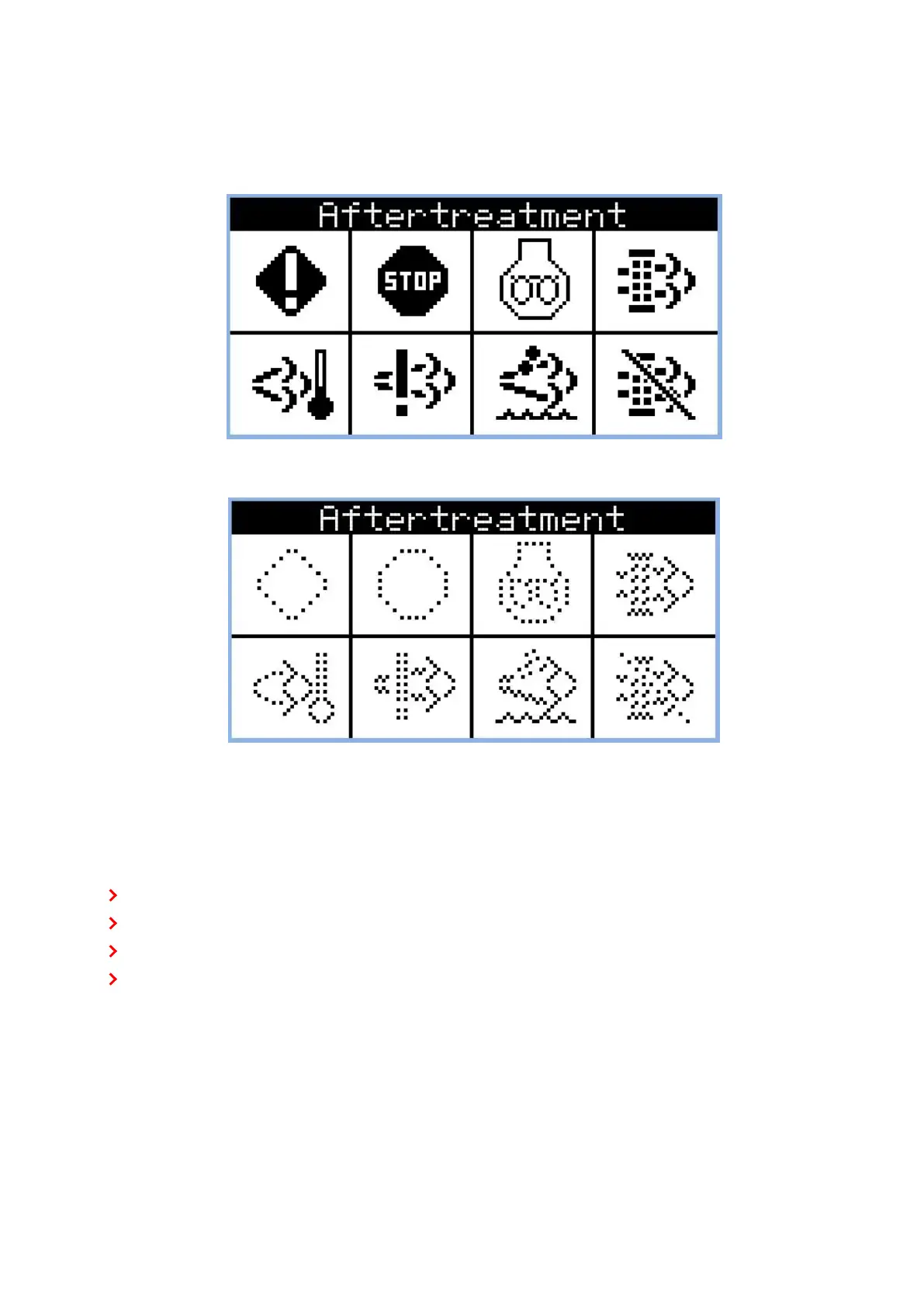

Image 5.44 Example of active After-treatment screen
Image 5.45 Example of inactive After-treatment screen
Universal lamps (icons)
Universal lamp icons are shown on the After-Treatment screen. Based on specific value read in specific
frame with specific SPN, every lamp icon is either:
shown
hidden
blinking slow (1 Hz)
blinking fast (2 Hz)
