SplPhL1L3 application

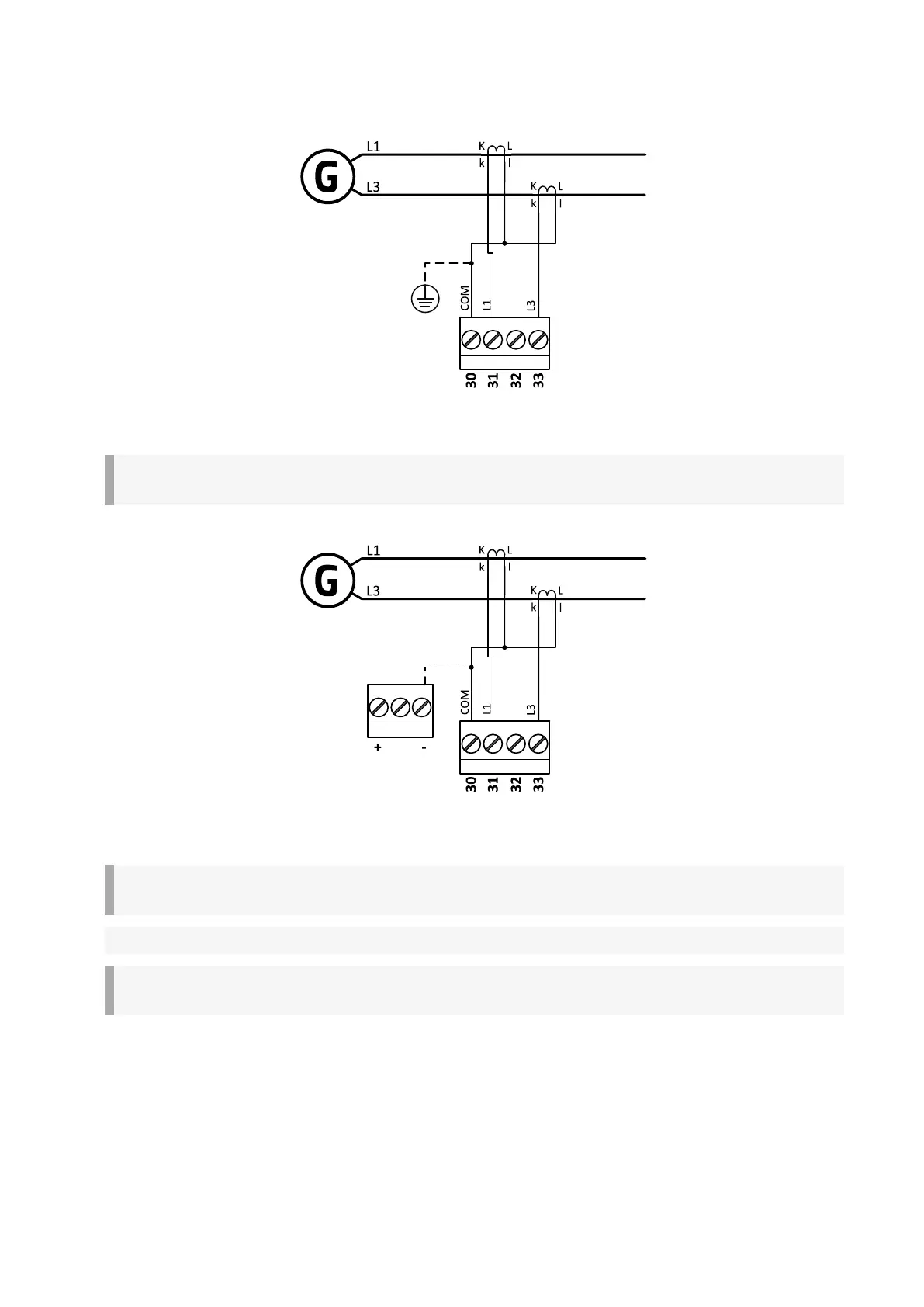

Image 4.7 SplPhL1L3 application
IMPORTANT: It is necessary to ensure that potential difference between current COM terminal
and power supply "–" terminal is maximally ±2 V. To do so ground properly both terminals.
Image 4.8 SplPhL1L3 application
IMPORTANT: It is necessary to ensure that potential difference between current COM terminal
and power supply "–" terminal is maximally ±2V. To do so interconnect these two terminals.
Note: This wiring is recommended for Indian market.
IMPORTANT: The second phase of split phase connection is connected to the terminal, where the
third phase is normally connected.
