InteliLite4 AMF20 Global Guide
596

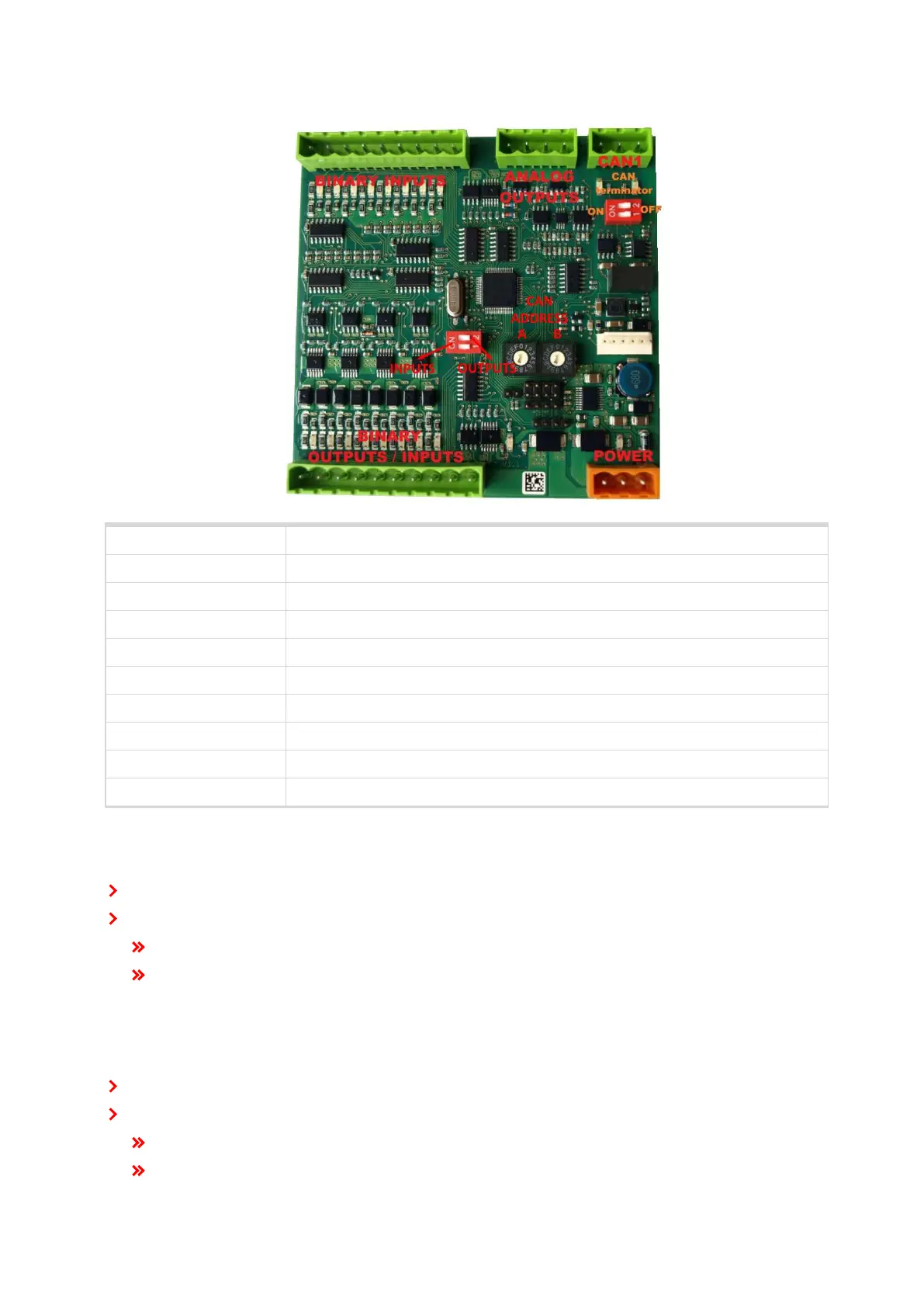

Terminals
Binary inputs 8 binary inputs
Binary outputs 8 binary outputs (8 binary inputs)
Analog outputs 2 analog outputs
CAN CAN1 line
Power Power supply
Binary inputs LEDs 8 LEDs for binary input indication
Binary outputs LEDs 8 LEDs for binary output indication
CAN LED Indication transmitted or received data
Status LED indication of correct function
CAN terminator Terminating CAN resistor (active in position "ON" – switch both switches)
Inputs and outputs
Binary inputs
8 channels
can be configured as:
pull up
pull down
All 8 inputs are configured to one type together.
All inputs can be configured to any logical function or protection.
Binary outputs
8 channels
can be configured as:
High side switch
Low side switch
