ComAp InteliLite AMF25 User Manual

InteliLite Global Guide
149
Setpoints
Click to the SETPOINTS link in the toolbar to display the setpoints page.
Click to the required group name in the left box to display setpoints of the group in the right box.
Click to the required setpoint name or value to change the value. If the respective setpoint is protected by
password, which is indicated by a lock icon by the setpoint name, you have to click on the "Controller
password" icon located in the toolbar and then enter valid password.

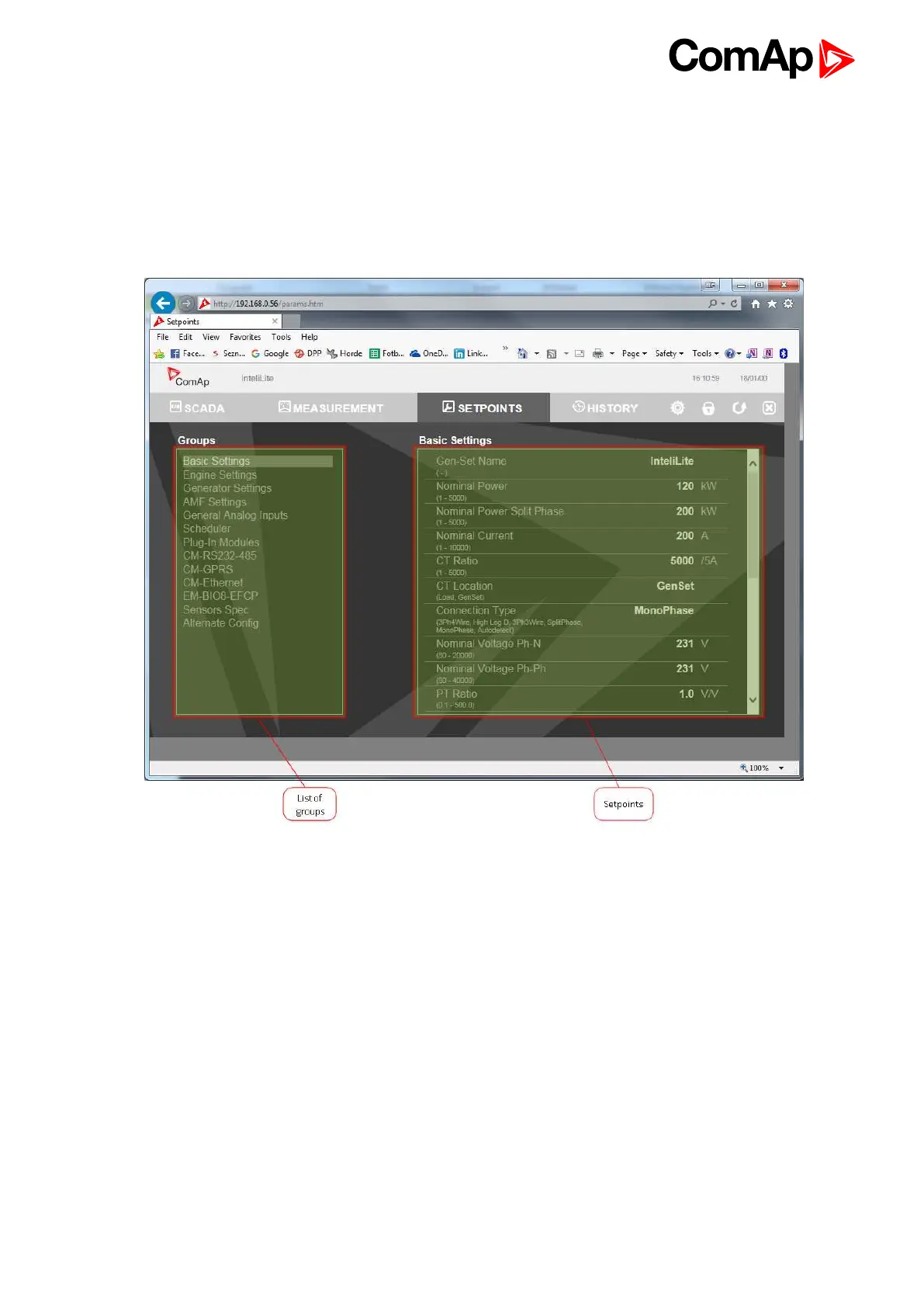

Image 6.10 Web Server - Setpoints screen

ComAp InteliLite AMF25 Specifications

General

Inputs	8 binary inputs
Outputs	8 binary outputs
Power Supply	8-36 V DC
Communication	RS232, RS485
Operating Temperature	-20°C to +70°C
Supported Generators	Diesel, gas
Controller Type	Automatic Mains Failure Controller
Protection	IP65
