ComAp InteliLite AMF25 User Manual

InteliLite Global Guide
148
Measurement
Click to the MEASUREMENT link in the toolbar to display the measurement page. Then click to the required
group name in the left box to display values of the group in the right box.
Note: The measurement page is automatically refreshed every 60 seconds (this time cannot be changed).

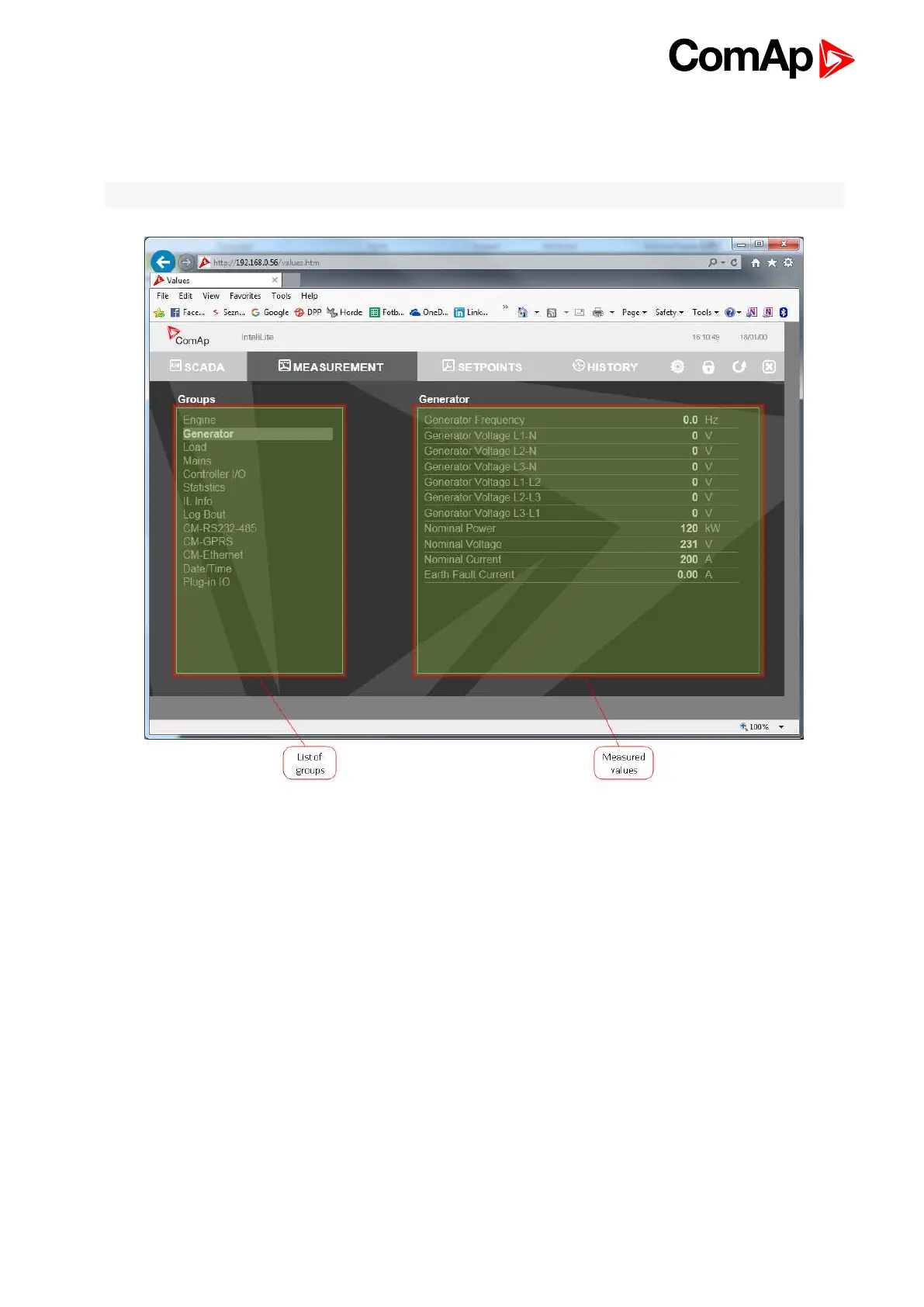

Image 6.9 Web Server - measurement screen

ComAp InteliLite AMF25 Specifications

General

Inputs	8 binary inputs
Outputs	8 binary outputs
Power Supply	8-36 V DC
Communication	RS232, RS485
Operating Temperature	-20°C to +70°C
Supported Generators	Diesel, gas
Controller Type	Automatic Mains Failure Controller
Protection	IP65
