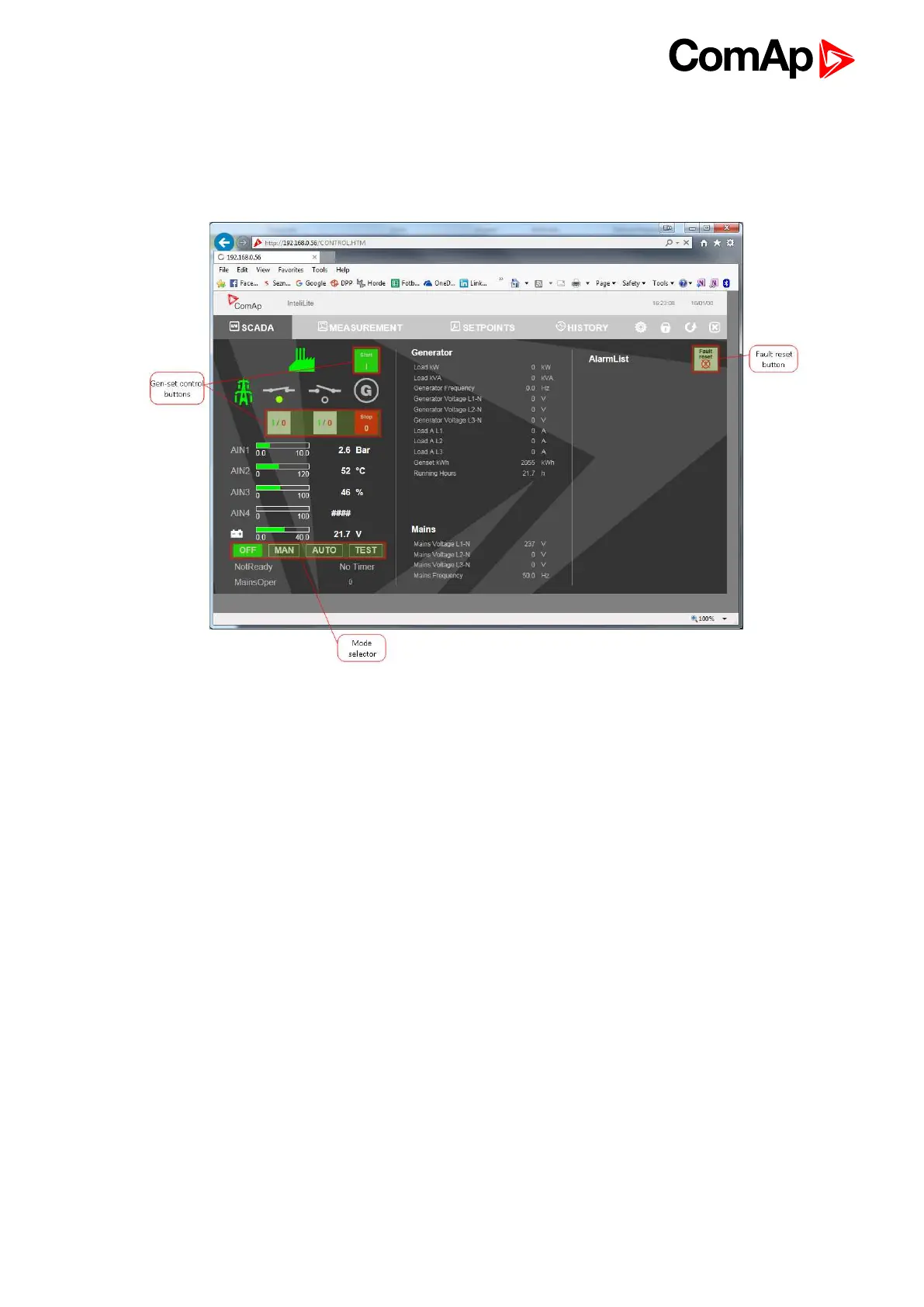

InteliLite Global Guide
147
DPFAshLoad (page 478)
DPFSootLoad (page 478)
DEF Level (page 478)
Control of After-Treatment regeneration function
User can force or inhibit regeneration process by activating appropriate binary inputs of the controller. Please
see the list of binary inputs below:
FORCE REGENERATION (PAGE 554)
REGENERATION INHIB (PAGE 562)
5.5.25 Alternate configuration
In controller are 3 sets of configuration.
Configuration set 1 Configuration set 2 Configuration set 3
Nominal Power Split Phase 1
(page 357)
Nominal Power 1 (page 357)
Nominal RPM 1 (page 355)
Nominal Frequency 1 (page 355)
Nominal Voltage Ph-N 1 (page
356)
Nominal Voltage Ph-Ph 1 (page
356)
Nominal Current 1 (page 355)
Connection Type 1 (page 353)
ECU Speed Adjustment 1 (page
366)
Nominal Power Split Phase 2
(page 361)
Nominal Power 2 (page 361)
Nominal RPM 2 (page 360)
Nominal Frequency 2 (page 359)
Nominal Voltage Ph-N 2 (page
360)
Nominal Voltage Ph-Ph 2 (page
360)
Nominal Current 2 (page 359)
Connection type 2 (page 357)
ECU Speed Adjustment 2 (page
366)
Nominal Power Split Phase 3
(page 365)
Nominal Power 3 (page 365)
Nominal RPM 3 (page 364)
Nominal Frequency 3 (page 363)
Nominal Voltage Ph-N 3 (page
364)
Nominal Voltage Ph-Ph 3 (page
364)
Nominal Current 3 (page 363)
Connection type 3 (page 361)
ECU Speed Adjustment 3 (page
367)
Configuration sets can be changed via logical binary inputs ALTERNATE CONFIG 2 (PAGE 525) and ALTERNATE
CONFIG 3 (PAGE 525). Configuration set 1 is active when there is no input activated. In case that inputs
ALTERNATE CONFIG 2 (PAGE 525) and ALTERNATE CONFIG 3 (PAGE 525) are active at the same time, the
configuration set 3 is took in account.
ALTERNATE CONFIG 2 (PAGE 525) ALTERNATE CONFIG 3 (PAGE 525) Active configuration set
0 0 1
1 0 2
0 1 3
1 1 3
IMPORTANT: If LBO ECU POWER RELAY (PAGE 600) is used, change of alternate configuration can
be made only in prestart phase. So prestart has to be set up for enough long time.
