ComAp InteliLite AMF25 User Manual

InteliLite Global Guide
320
When the Rental Timer 2 (page 319) elapsed during engine run the gen-set will not stop immediately. The
adjustable Rental Timer BOC (page 321) timer will start in this moment. The engine will be cooled and
stopped when the Rental Timer BOC (page 321) time elapsed.

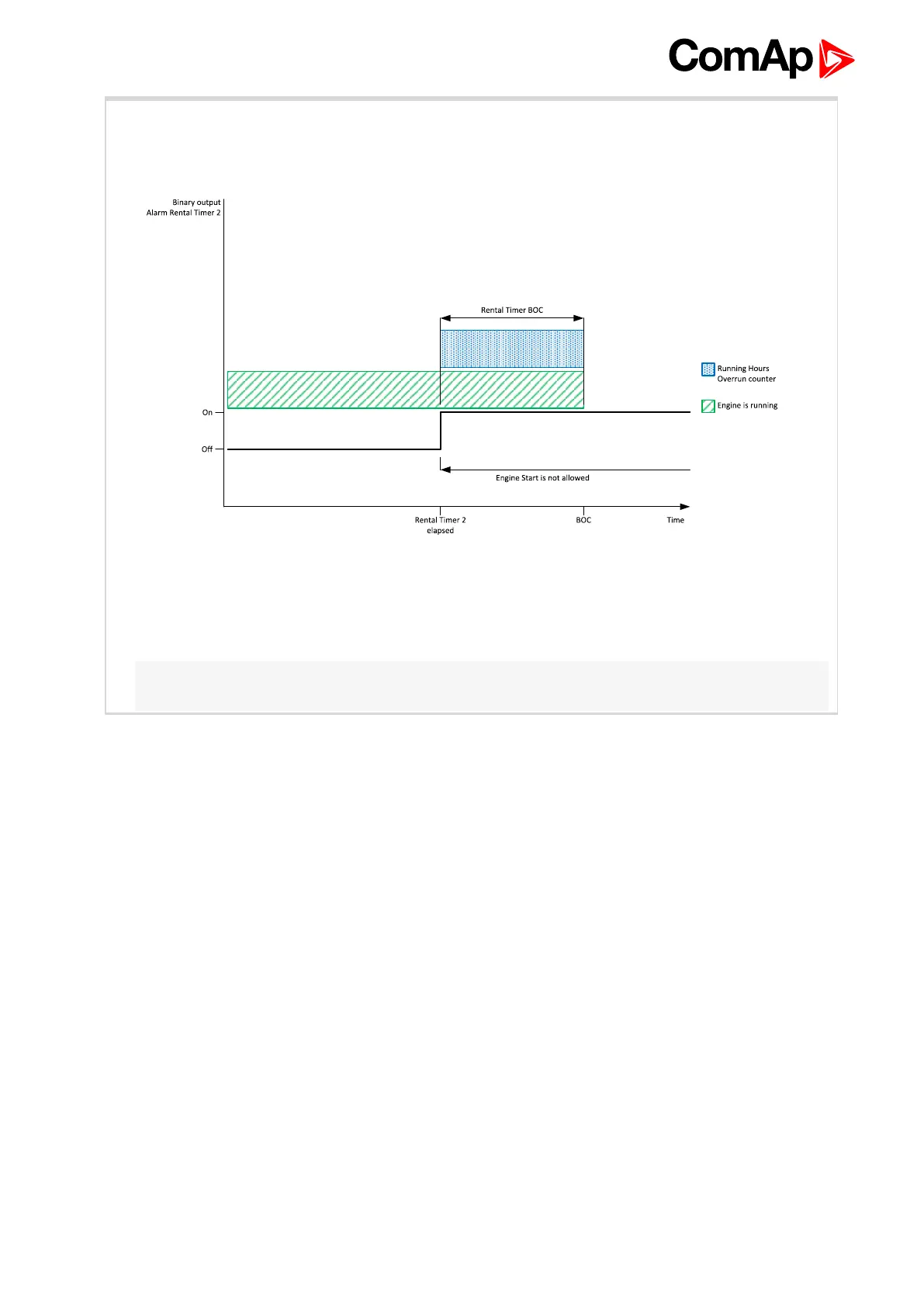

Image 8.62 Rental Timer 2
The Running Hours Overrun counter will start increment when the engine is continue running after the Rental
Timer 2 (page 319) elapsed.
Note: There is no priority between Rental Timer 1 and Rental Timer 2. The sooner timer will activated the
Rental Timer BOC (page 321) protection.
6 back to List of setpoints

ComAp InteliLite AMF25 Specifications

General

Inputs	8 binary inputs
Outputs	8 binary outputs
Power Supply	8-36 V DC
Communication	RS232, RS485
Operating Temperature	-20°C to +70°C
Supported Generators	Diesel, gas
Controller Type	Automatic Mains Failure Controller
Protection	IP65
