IGS-NT Installation Guide
116

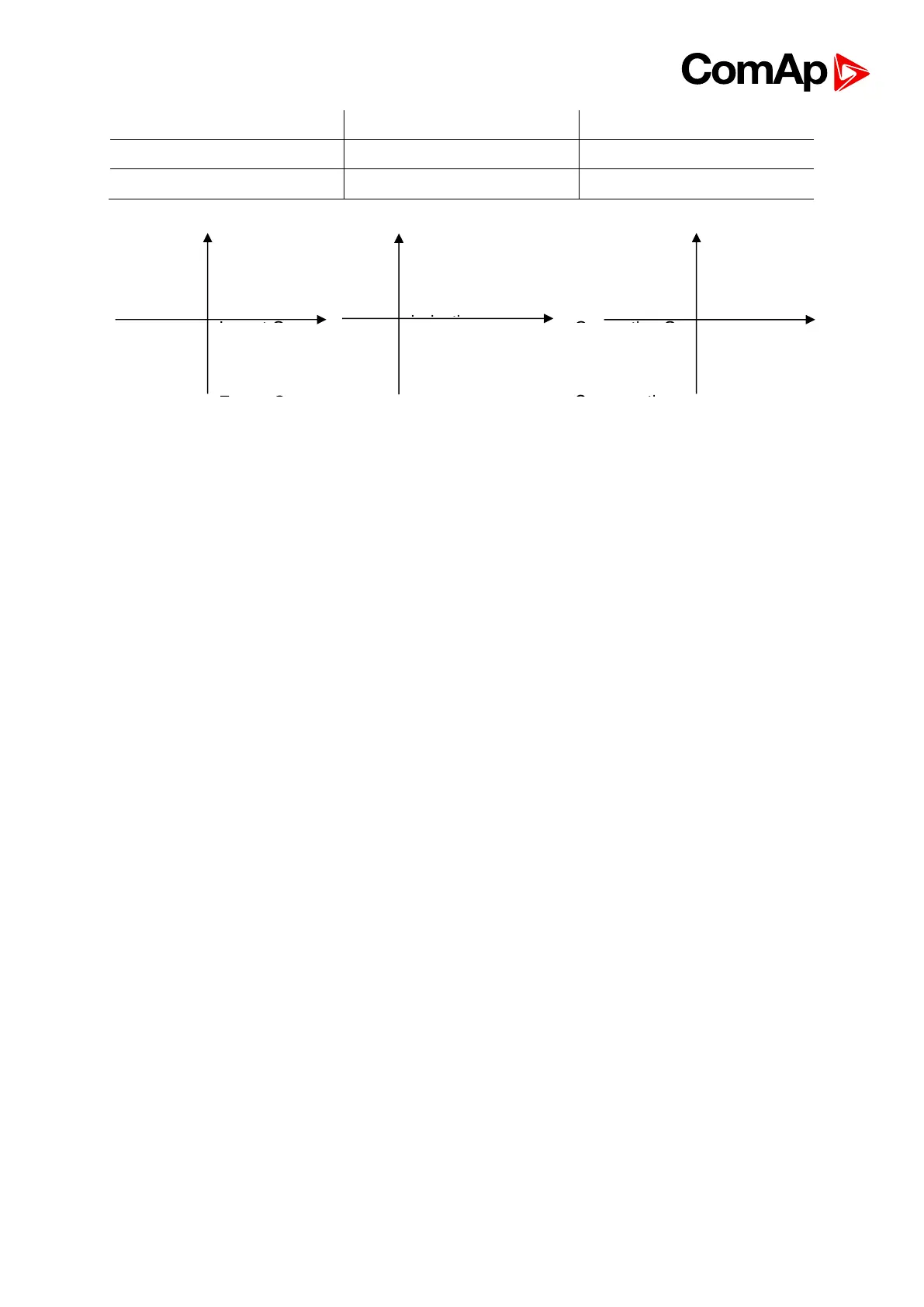

MAINS
LOAD
GEN
P > 0 Import
P > 0 Consumption
P> 0 Generation
Q> 0 Import
Q> 0 Consumption
Q> 0 Generation
17.1.4.1. Mains
Exported active power is supplied to the mains. It is displayed in negative numbers e.g. –
20kW.
Imported active power is consumed from the mains. It is displayed in positive numbers e.g.
+20kW.
When reactive power is imported (>0) InteliMains-NT displays L (inductive) character of the
load.
When reactive power is exported (<0) InteliMains-NT displays C (capacitive) character of the
load.
17.1.4.2. Load
Active power consumed by Load is displayed in positive numbers e.g. 20kW.
When reactive power is positive (>0) InteliMains-NT displays L (inductive) character of the
load.
When reactive power is negative (<0) InteliMains-NT displays C (capacitive) character of the
load.
17.1.4.3. Genset
Generated active power is displayed in positive numbers e.g. 20kW.
When reactive power is positive (>0) IGS-NT displays L (inductive) character of the load.
When reactive power is negative (<0) IGS-NT displays C (capacitive) character of the load.
17.2. Volt/PF control adjustment
17.2.1. IG-AVRi output connection
Every time refer to corresponding AVR manual before interface connecting. Do not use AVR
with Droop activated.
IG-AVRi-TRANS (AC power supply for AVRi) has to be supplied from gen-set voltage.
Cos > 0 C
Consumption P
Capacitive LOAD
Cos > 0 L
Consumption
P
Inductive
P
Q
Cos < 0 L
Export P
Import Q
Cos < 0 C
Export P
Export Q
Cos > 0
C
Import P
Export Q
Cos > 0
L
Import P
Import Q
P
Q
Cos < 0 L
Consumption
P
Generation Q
Cos < 0 C
Consumption
P
Consumption
Cos > 0 C
Generation P
Consumption Q
Cos > 0 L
Generation P
Generation Q
P
Q
