IGS-NT Installation Guide
52
7.3. IS-NT-BB

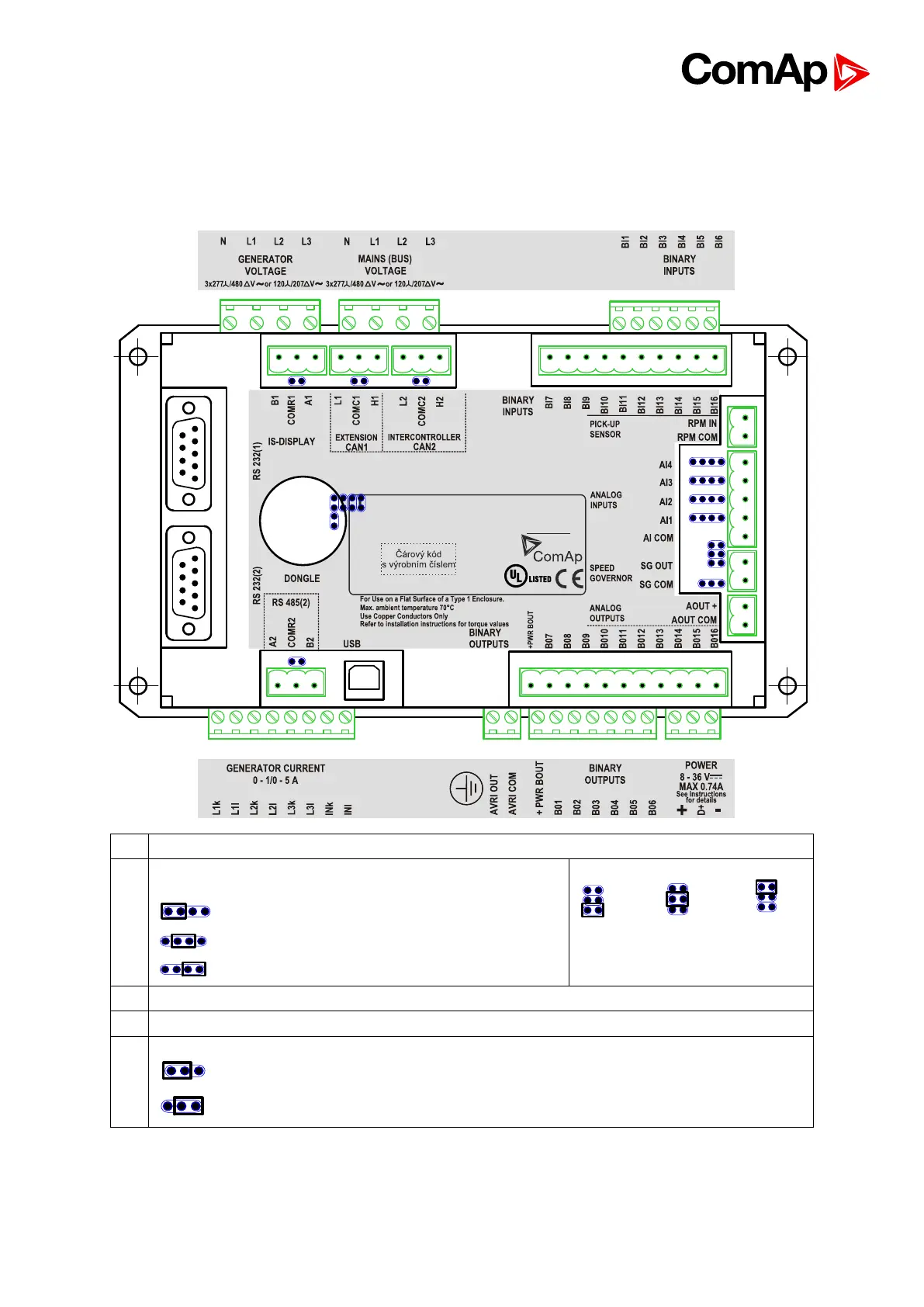

7.3.1. Schematics
InteliSys BaseBox
NT
Order code: IS-NT-BB
LB 6
CAUTION -
( PROG. CNTRL.)
4XC2
No User Serviceable Parts Inside.
Refer servicing To Qualified Service Personnel.
Risk of Electric Shock, Do Not Remove Cover.
www.comap.cz
Made in EU, Czech Republic
LB 7
LB 7

Left to right: Pull down Bias / 120Ω / Pull up Bias / 120Ω / 120Ω

Down: AI4 setting / AI3 setting / AI2 setting / AI1
setting
Current input 0-25mA
Voltage input 0-5V
Resistance input 0-2400 Ω
SG OUT setting
PWM VoutR VOut
For more info see the chapter
Speed Governor Output

Boot jumper (lower one, rest of the jumpers is for internal use only)

Left to right: Pull up Bias / 120Ω / Pull down Bias

AOUT setting
Voltage 0-10VDC
Current 0-20mA





