ComAp IS-NTC-BB Installation Guide

IGS-NT Installation Guide
30

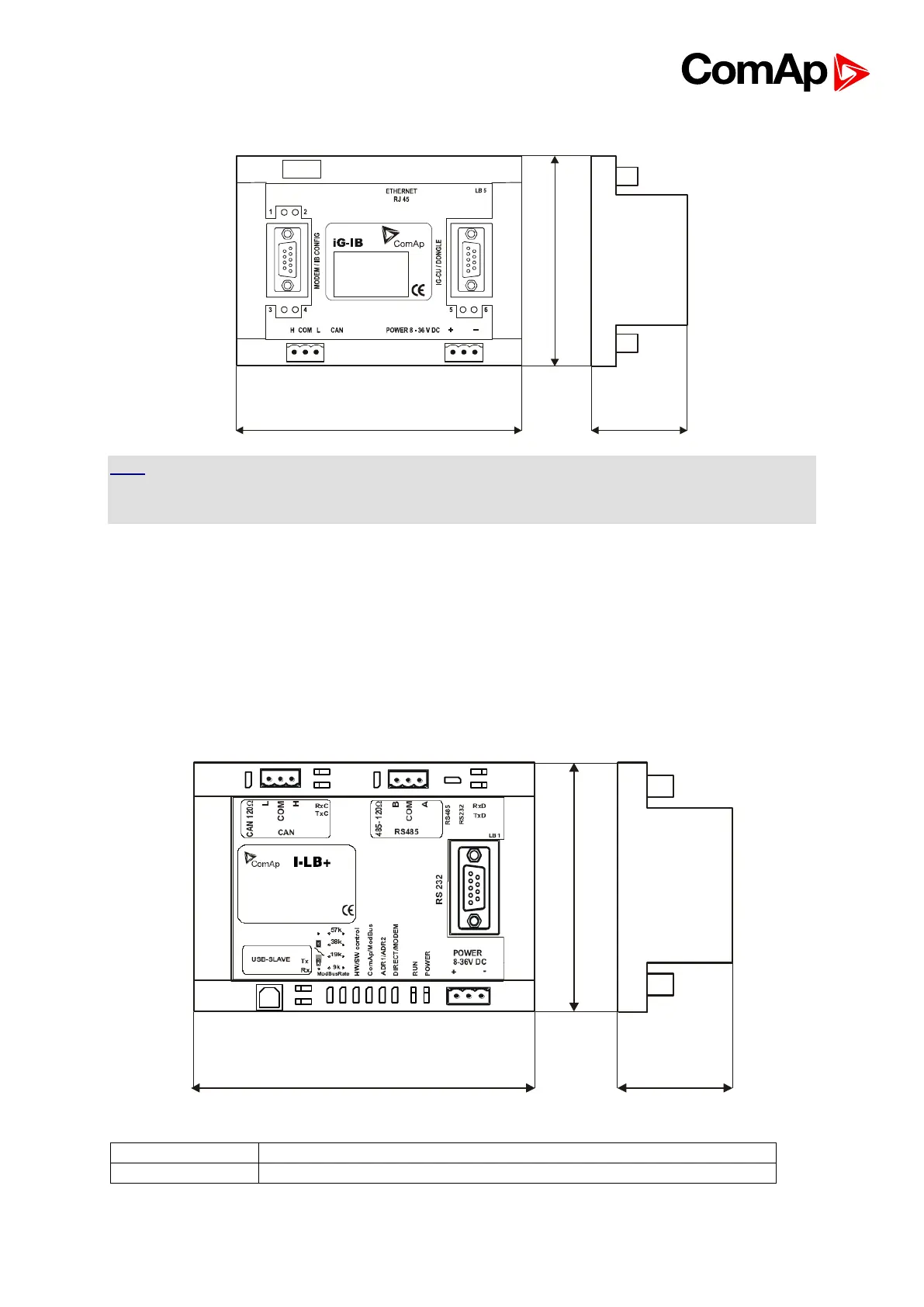

5.3.9. IG-IB Internet bridge
95 mm
(3,7´´)
43 mm
(1,7´´)
96 mm (3,8´´)
HINT
See InteliCommunicationGuide for further information.
It is recommended to use IG-IB firmware version 2.0.
IG-IB unit can be mounted on DIN rail (35 mm).
5.3.10. I-LB+ Local Bridge
I-LB+ is a successor of the IG-MU and I-LB units designed to be used with IG/IS-NT and IM-
NT controllers.
It therefore provides additional communication port and higher communication speed.
Speed for direct/modem connection can be up to 57600 bps (IG-MU provided only 19200
bps).
95 mm
(3,7´´)
43 mm
(1,7´´)
96 mm (3,8´´)
D1D2P1P2P3P4P5P6
P7
120 120
RxD
TxD
RxC
TxC
Tx
Rx
Indication LED:
TxC, RxC
Indicates data transfer on the CAN line.
TxD, RxD
Indicates data transfer on the RS232 line.
