9.4. Single Phase Applications
There is no special archive file or software for single phase applications. Use standard
archive.

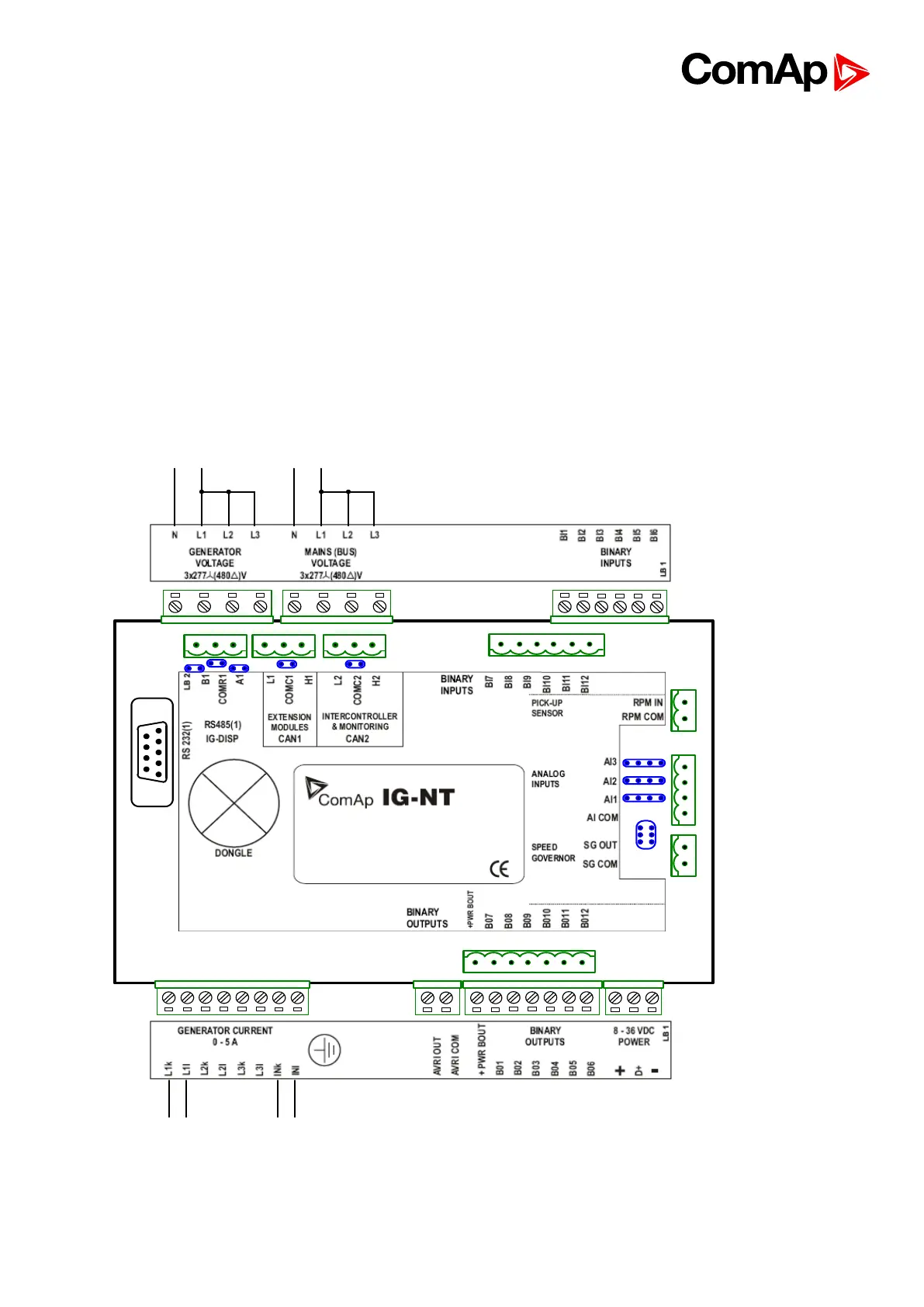

9.4.1. Recommended wiring
Generator (Mains) single phase voltage has to be connected to all three voltage terminals
L1, L2, L3.
Generator current has to be connected to L1k, L1l terminals only.
Adjust setpoint Gener protect:Gen I unbal to 200%.
For single phase measurement of Mains import/export power connect L3 current transformer
to Ink and Inl terminals of the controller. Measured power is internally multiplied by 3. Adjust
correctly setpoints Basic settings:Im3/ErFlCurCTp and Im3/ErFlCurCTs.
