IGS-NT Installation Guide

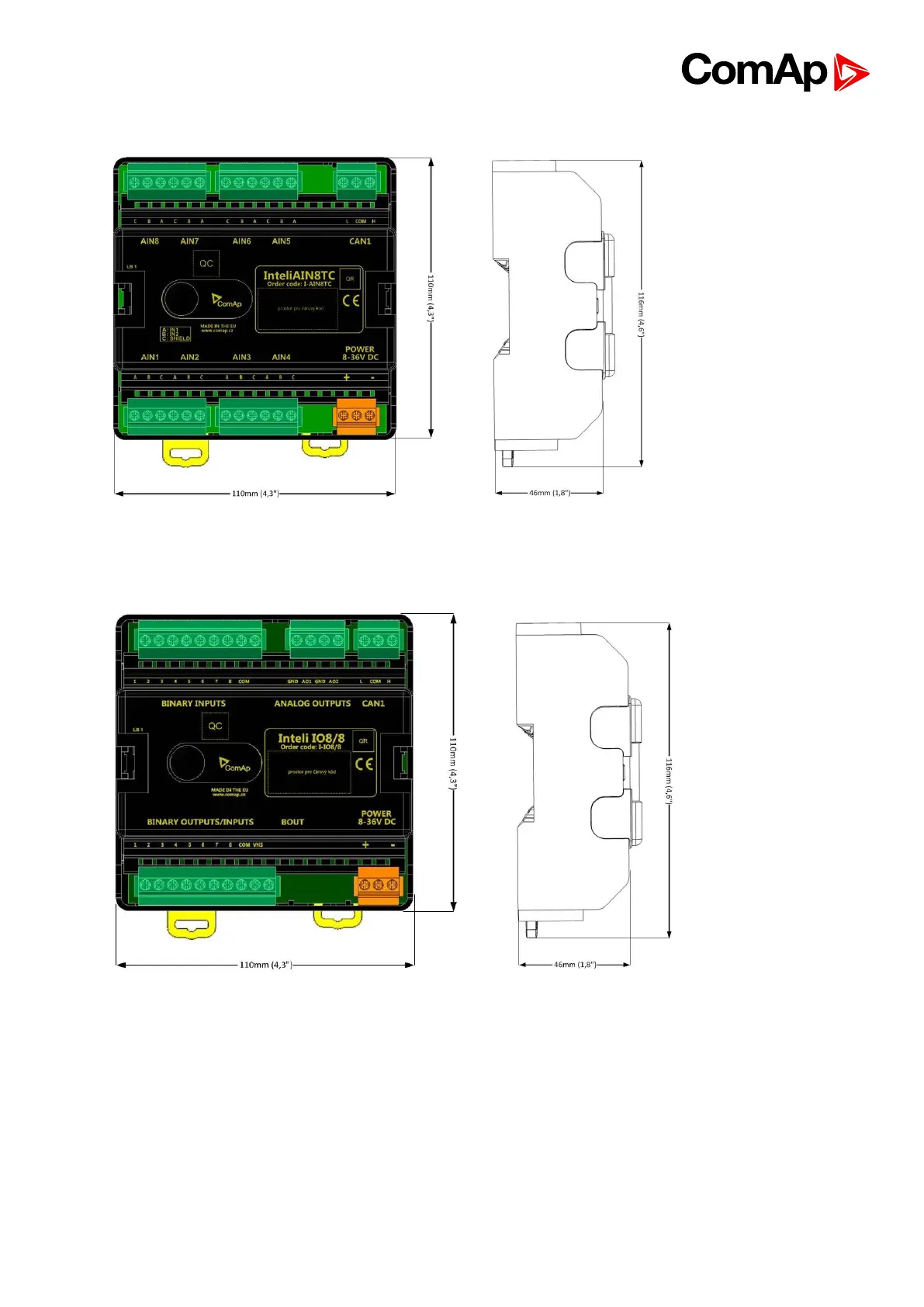

5.3.3. Inteli Ain8TC

Inteli AIN8TC unit can be mounted on DIN rail (35mm).

5.3.4. Inteli IO8/8 (can be switched to IO16/0)

Inteli IO8/8 unit can be mounted on DIN rail (35mm).
