ComAp IS-NTC-BB Installation Guide

IGS-NT Installation Guide
88
Controller
Battery 24V
DC
+ -
Controller
Battery 24V
DC
+ -
+PWR BOUT
NOTE:
If +PWR BOUT is used, it increases power consumption of the controller.
Outputs can provide steady current of up to 2A. Every single binary output can provide up to
0.5A of steady current unless the total current of group of outputs does not exceed 2A.
9.10.2. Controllers with High-Side Low-Side Switch
This portion of Instalation instructions is dedicated to
controllers with High-Side Low-Side Switch. These
controllers include: IG-NT-BB, IG-NTC-BB, IS-NTC-BB, IM-
NT-BB and IM-NTC-BB

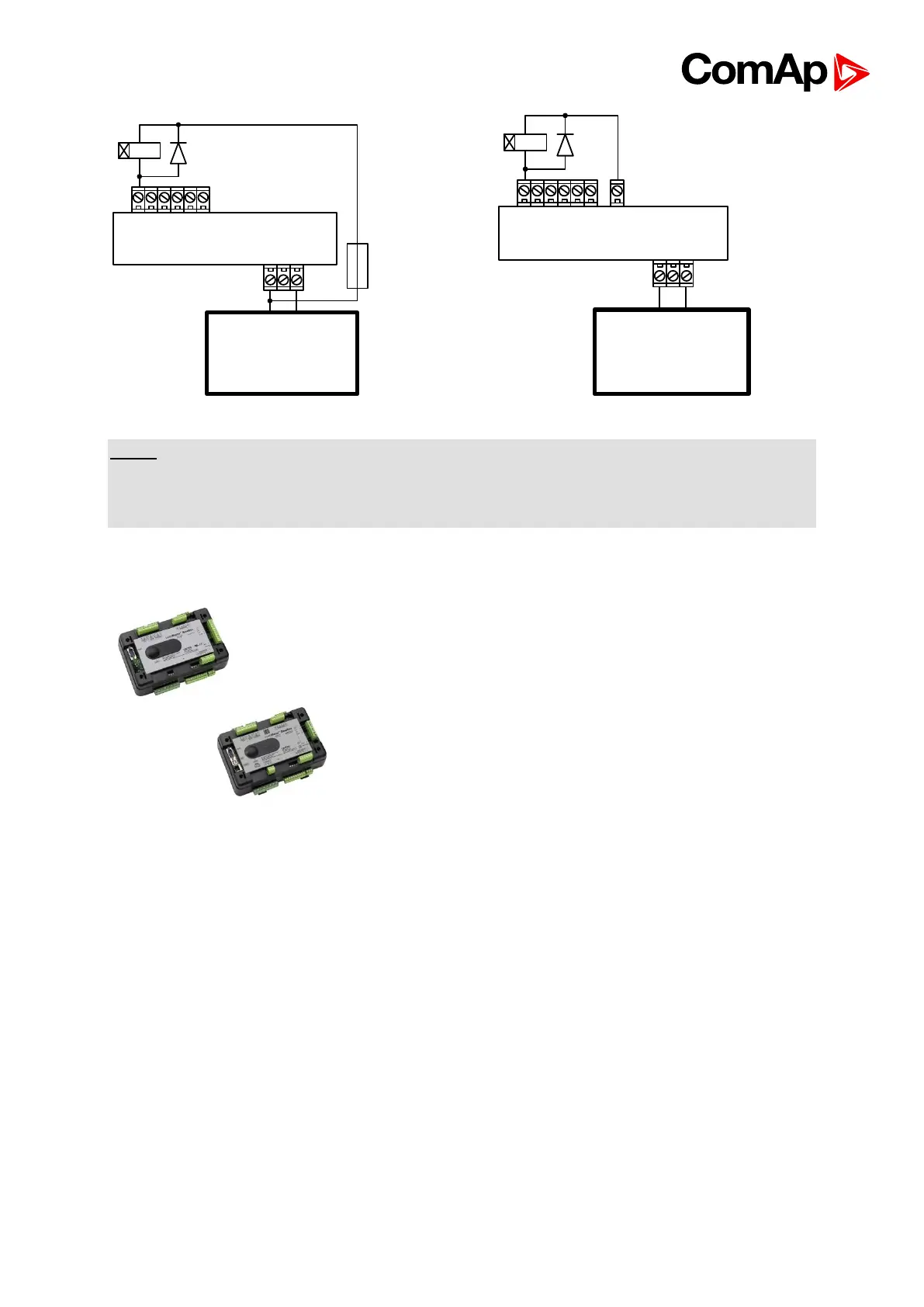

It is possible to use binary outputs as low side switch or high side switch in BaseBox type of
controller. For correct wiring in both cases please refer to the following diagrams.
Low side switch High side switch
