IGS-NT Installation Guide

Battery 24V

+ -

AI3

AI COM

Internal

AOUT

COM

AOUT +

AI2

Battery 24V

+ -

AI3

AI COM

Internal

AOUT

COM

AOUT +

AI1

10K

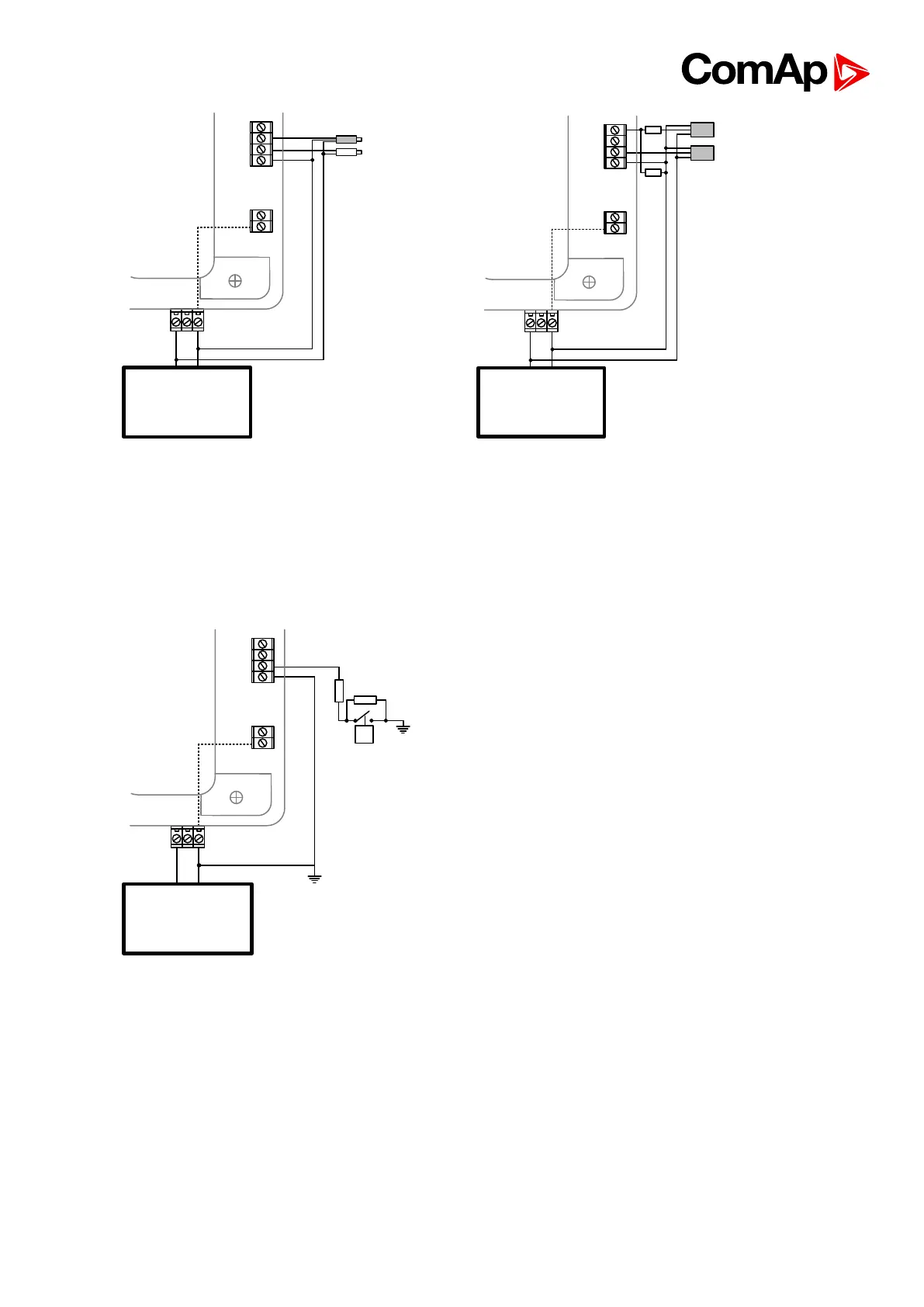

Tristate sensor (binary sensor with fail

detection) on Analog input 3

Below 750Ω = Inactive

Between 750Ω and 2400Ω = Active

Below 10 Ω or Over 2400Ω = sensor failure

(wire shorted or interrupted)

Battery 24V

+ -

AI3

AI COM

Internal

AOUT

COM

AOUT +

100R

1k5

9.15. Analog Inputs on IS-AIN8

IS-AIN8 extension module analog inputs can be configured to

• Resistor two wire input

• Resistor three wire input

• Current input

Table of Contents2
Document Information8
Clarification of Notation8
Symbols9
Conformity Declaration9
Revision Notes9
Available Related Documentation10
General Guidelines12
Safety Instructions12
Required and Optional Modules13
Inteli New Technology Controllers13
Accessories13
Dongle Overview14
Available PC Software15
Marine Application Notes16
Safety Requirements16
Power Supply17
Default Configuration18
Override Function18
Terminals and Dimensions19
Controller Terminals and Dimensions19
Ig-Nt, Ig-Ntc, IM-Nt19
Is-Nt-Bb19
Ig-Nt-Bb (Ig-Ntc-Bb, Is-Ntc-Bb)21
IM-Nt22
IM-NT-BB and IM-NTC-BB22
Display Terminals and Dimensions23
IG-Display23
IS-Display23
Intelivision 524
Intelivision 824
Peripheral Modules Terminals and Dimension25
IG-Avri + IG-Avri TRANS25
Inteli AIN825
Inteli Ain8Tc26
Inteli IO8/8 (Can be Switched to IO16/0)26
Is-Bin16/827
Is-Ain828
IGL-RA15 Remote Annunciator28
Igs-Ptm29
IG-IB Internet Bridge30
I-LB+ Local Bridge30
I-CB Communication Bridge31
I-RB16, I-RB16/231 Relay Board31
I-CR CAN Repeater32
I-Aout833
I-Lba35
Interface37
Front Panels37
Inteligen NT Controller37
Intelimains NT Controller37
Intelisys NT Controller38
Intelivision 538
Intelivision 838
Display Wiring40
IG-Display Wiring40
IS-Display Wiring41
Intelivision 5 Wiring42
Intelivision 8 Wiring43
Terminals, Jumpers and I/O Overview47
Ig-Nt Gc47
Schematics47
Terminals, Inputs and Outputs48
Ig-Ntc Gc49
Schematics49
Terminals, Inputs and Outputs50
Is-Nt-Bb52
Schematics52
Terminals, Inputs and Outputs53
Ig-Nt-Bb55
Schematics55
Terminals, Inputs and Outputs56
Ig-Ntc-Bb57
Schematics57
Terminals, Inputs and Outputs58
Is-Ntc-Bb59
Schematics59
Terminals, Inputs and Outputs60
IM-Nt62
Schematics62
Terminals, Inputs and Outputs63
IM-Nt-Bb64
Schematics64
Terminals, Inputs and Outputs65
IM-Ntc-Bb66
Schematics66
General Jumper Settings67
Analog Inputs and Outputs67
Speed Governor Output68
Measurement and Power Supply Wiring69
General69
Grounding69
Power Supply69
Power Supply Fusing70
Magnetic Pick-Up70
Voltage and Current Inputs71
Measurement Wiring71
Voltage Measurement Separation73
Mains Power and PF Measuring in IGS (E.g. Sptm Application)73
Earth Fault Protection (E.g. MINT Application)73
Recommended Wiring75
Sptm Application75
SPI Application76
MINT Application77
Single Phase Applications78
Recommended Wiring78
Intelimains - MCB Application79
Basebox Controller79
Controller with Built-In Display80
Intelimains - MGCB Application81
Basebox Controller81
Controller with Built-In Display82
Intelimains - BTB Application83
Basebox Controller83
Controller with Built-In Display84
Intelimains - FDR Application85
Basebox Controller85
Controller with Built-In Display86
Binary Input Wiring87
Binary Output Wiring87
Controllers Without High-Side Low-Side Switch87
Controllers with High-Side Low-Side Switch88
Examples of BI and BO Wiring90
Binary Outputs Wiring with I-RB1690
Binary Inputs and Outputs Wiring90
Binary I/O on IS-BIN16/891
Binary Inputs on IS-BIN16/891
Binary Outputs on IS-BIN16/892
Binary Output Protections92
Analog Input and Output Wiring93
Analog Inputs on IS-AIN894
Outputs Refresh Rates97
External Modules Connection98
Lost Communication Protection98
IS-BIN16/8 and IS-AIN898
IS-AIN8, IS-BIN8/16 Address Setting99
IS-AIN8, IS-BIN8/16 SW Version Check99
Example of Wiring99
IGS-PTM and IGL-RA15100
Example of Wiring100
Connection of ECU on CAN1 with Other Modules Connected101
I-CB Wiring and Configuration102
Communications103
Available Communication Ports103
Possible Connections Per Port104
CAN Bus105
CAN Bus Tx, Rx LED Indication105
CAN and RS485 Bus Wiring105
Wiring Examples106
Dongle Installation108
Sensors109
Sensor Fail Detection (FLS)109
Default Sensors109
Regulation Loops111
PI Regulation Adjustment112
Speed Governor and AVR General Settings114
Sync/Load Control Adjustment114
Speed Governor Output Characteristics114
Synchronizer Adjustment114
Load Control Adjustment115
Active and Reactive Power Terminology115
Volt/Pf Control Adjustment116
IG-Avri Output Connection116
Voltage Control Adjustment117
PF Control Adjustment118
Speed Governor Interface List119
Electronic Engines Interface119
Communication Bridge Unit119
Speed Governor Interface119
Controller Speed Reg out Voltage Limits119
Interface List119
AVR Interface List127
Technical Data138
Power Supply138
Operating Conditions138
Dimensions and Weight139
Measurements139
Current Inputs139
Voltage Inputs - IG/IS-NT and Modifications140
Binary Inputs and Outputs140
Binary Inputs140
Binary Open Collector Outputs140
Analog Inputs141
D+ Function141
Speed Pick-Up Input141
Communication Interface141
RS232 Interface141
RS485 Interface141
CAN Bus Interface142
Analog Outputs142
IG-Avri142
IG-Avri Trans/Lv143
IG-Avri Trans/100143
Igs-Ptm143
Binary Inputs143
Binary Open Collector Outputs143
Analog Inputs144
Analog Output144
Is-Ain8144
I-Aout8145
Is-Bin16/8145
Binary Inputs146
Open Collector Outputs146
Frequency Inputs146
Igl-Ra15146
Power Supply146
Operating Conditions146
Dimensions and Weight147
Horn Output147
I-Cb, I-Cr147
Power Supply147
Operating Conditions147
CAN Bus Interface147
RS232 Interface148
I-Lb148
Ig-Ib148
I-Rbxx148
Ig-Mtu148
Ig-Mtu-2-1149
