Mounting procedure: dimensions, space and handling
22
HS-RC-C5E-TIN_02.fm
00/0411
3.4 Weight and size including package
Depending on the version, check the following sections:
– C5G standard version
– C5G featuring rising socket
– C5G featuring Application Box
– C5G featuring rising socket and Application Box

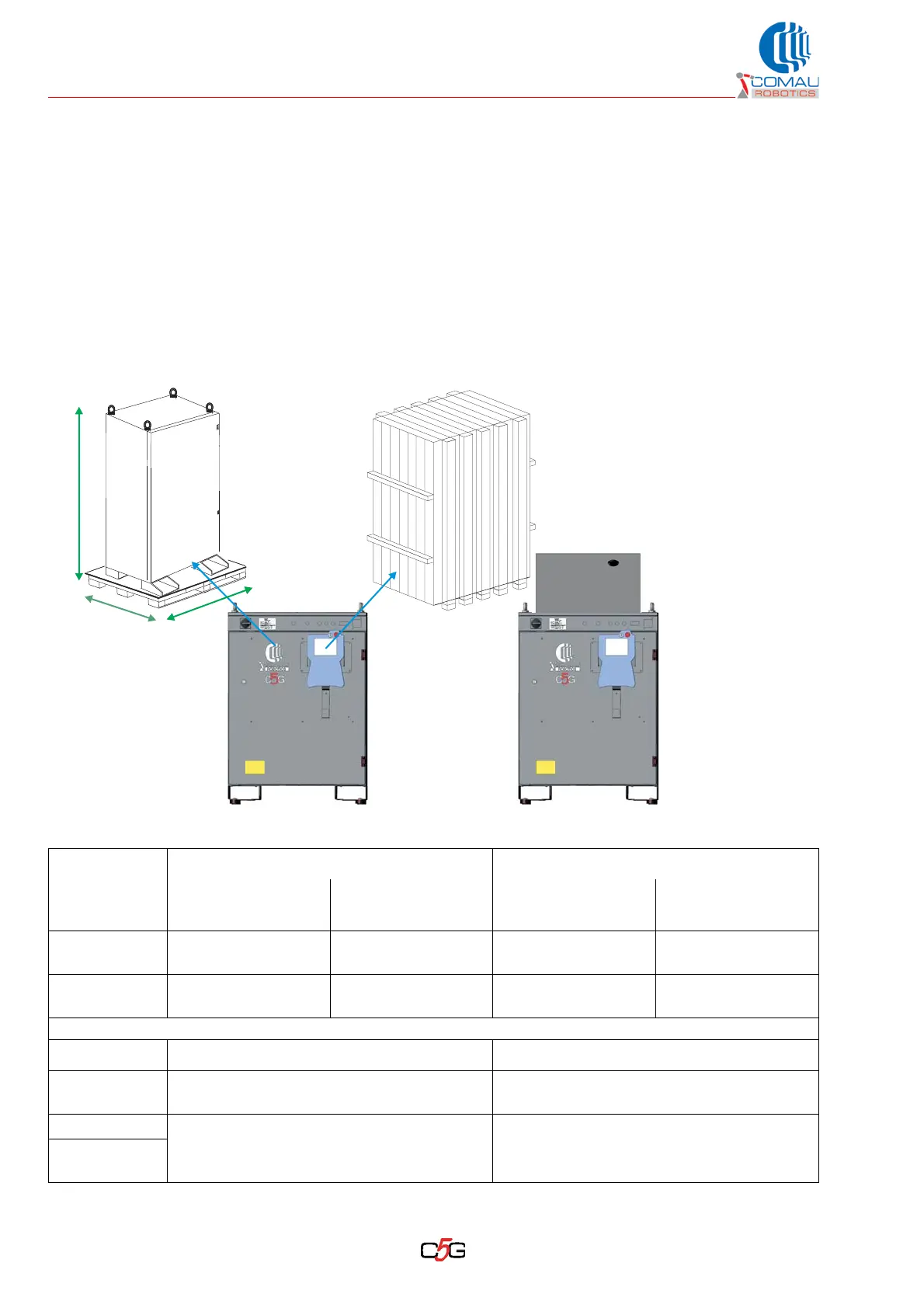

3.4.1 C5G standard version
Supply
modality
Without conditioner (C) With conditioner (D)
On pallet
(A)
In closed crate
(B)
On pallet
(A)
In closed crate
(B)
Weight
145 kg
320 lb
190 kg
419 lb
180 kg
397 lb
225 kg
496 lb
Size *¹
1200x800x1330 mm
47.2 x 31.5 x 52.4 in
1000x800x1400 mm
39.4 x 31.5 x 55.1 in
1200x800x1670 mm
47.2 x 31.5 x 65.7 in
1000x800x1740 mm
39.4 x 31.5 x 68.5 in
*¹ approximate size (width x depth x height)
No package, without conditioner (C) No package, with conditioner (D)
Weight
125 kg
275 lb
160 kg
353 lb
Size
see par. 3.5 see par. 3.6
Installation
position
A
C
B
D
w
d
h
