Mounting procedure: dimensions, space and handling
32
HS-RC-C5E-TIN_02.fm
00/0411
3.7.3 Lifting the C5G without package
Lifting data
Weight to be lifted *¹: 120 to 240
kg
265 to 529
lb
*¹ The weight may differ depending on the
version, in particular in case it deals with the
one supplied with Application Box. Always
refer to the plate posted on the Control Unit.

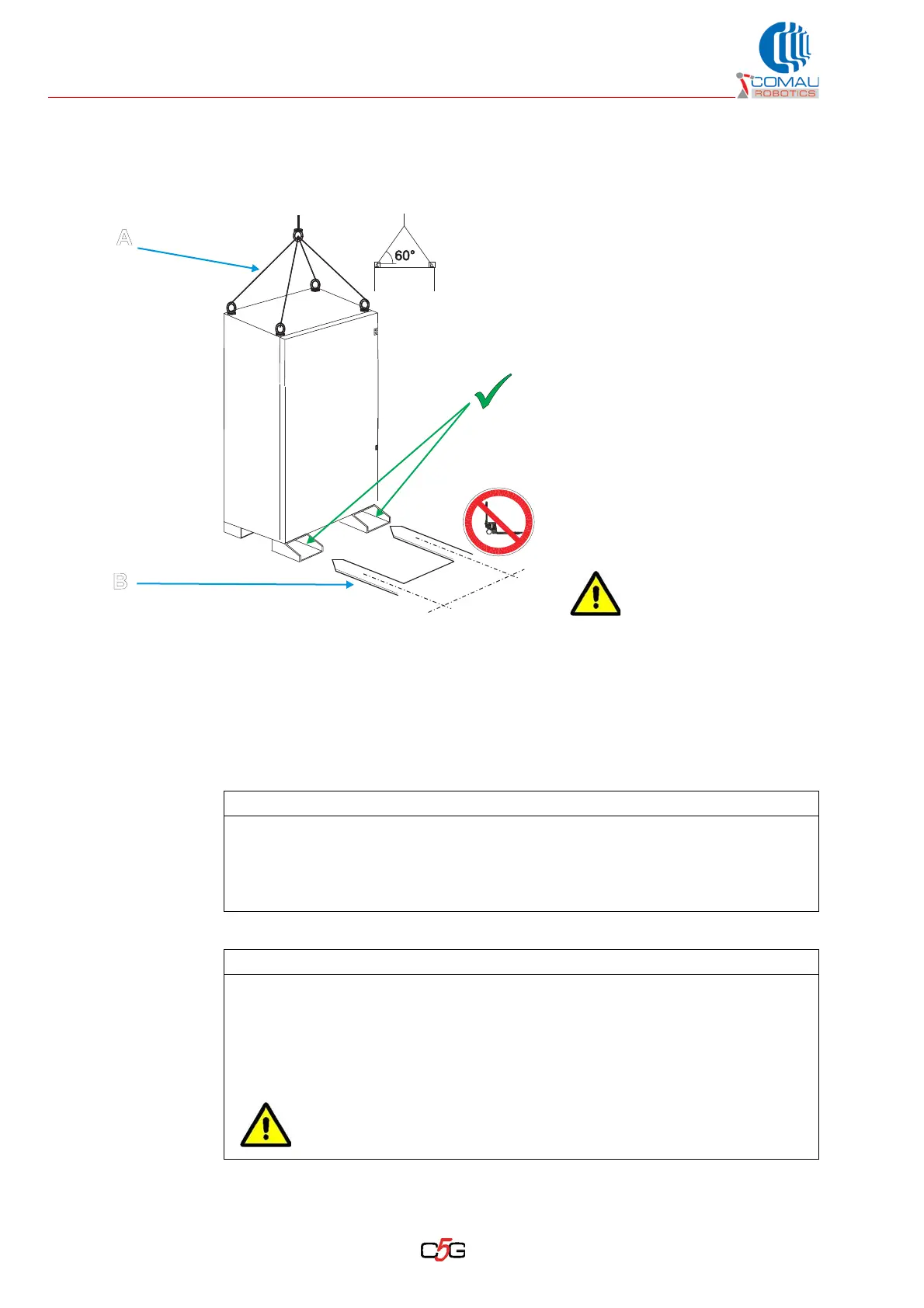

With crane or bridge crane (A)
Rope no.: 4
Rope length: 1000 mm
With lift truck (B)
Fork length: > 900 mm
Distance between fork
centers:
620 mm
Fork receiving hole: 175 mm
Do not use a hand
pallet truck, as it may
cause the item
overturning and the
cabinet damaging.
Eyebolts
On Control Unit: 4 x M12
female
Operating procedure with crane or bridge crane (A)
a. Check the fastening of the 4 eyebolts already installed on the box upper part.
b. Fasten hooks and ropes to the 4 eyebolts on the cabinet as shown in the drawing.
c. Lift keeping in balance and move near the installation position.
Operating procedure with lift truck (B)
a. Place the forks as requested.
b. Make sure the fork ends jut out the crate oppite side.
c. Lift keeping in balance and keep it parallel to the floor then move near the
installation position.
While moving:
•Do not lift item over 50 cm.
•Keep it flat balanced and do not incline or overturn the Control Unit .
