Comau Robotics C5G Instruction Handbook

Mounting procedure: dimensions, space and handling
28
HS-RC-C5E-TIN_02.fm
00/0411

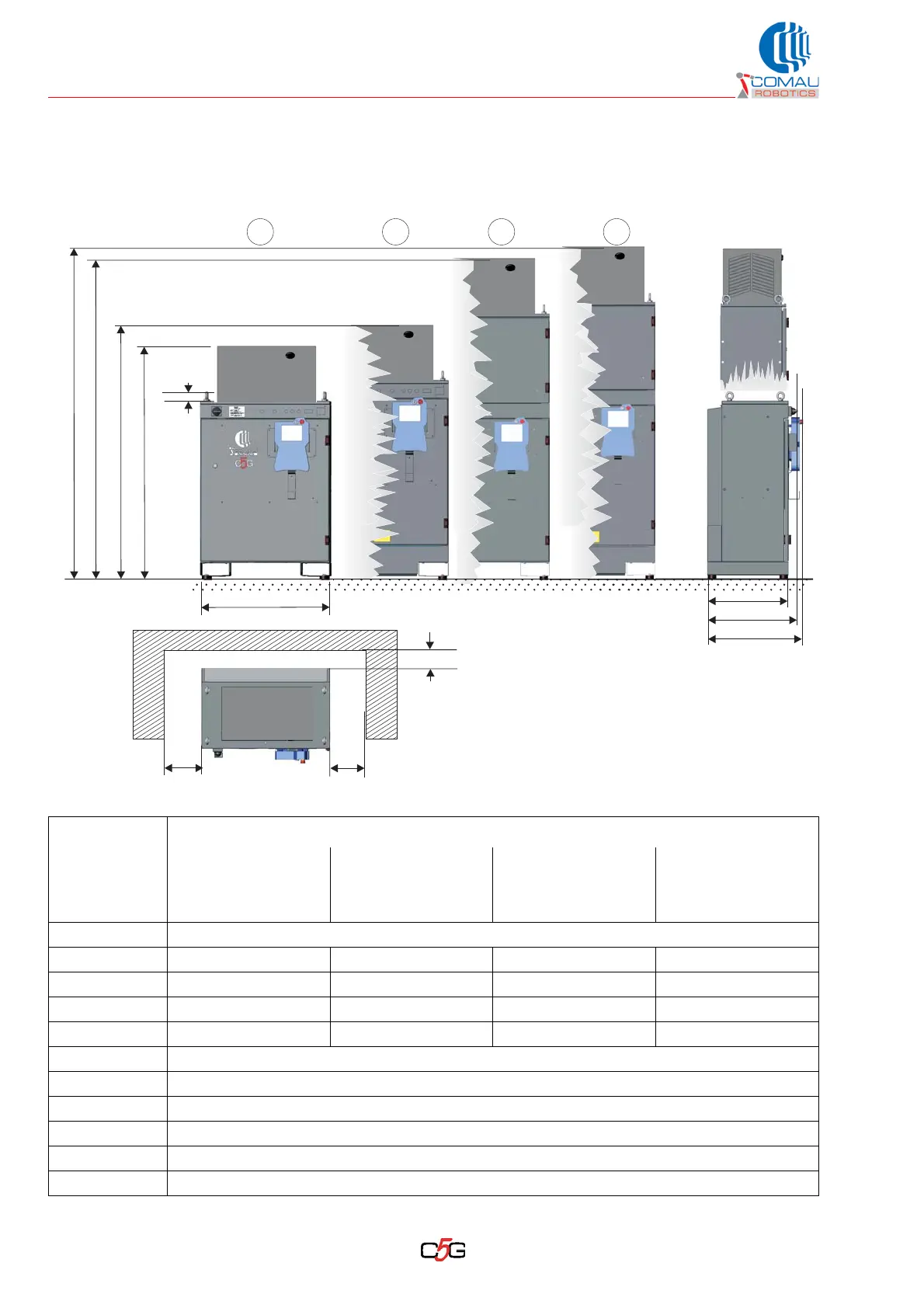

3.6 Overall dimensions and installation space
required for the C5G
(with conditioner)
Item
C5G Control Unit version (with conditioner)
Standard With rising socket With Application Box
With rising socket
and Application Box
(1) (2) (3) (4)
A 800 mm (31.49 in)
B 1450 mm (57.09 in) -- -- --
B’ -- 1550 mm (61.02 in) -- --
B’’ -- -- 1990 mm (78.35 in) --
B’’’ -- -- -- 2090 mm (82.28 in)
C 510 mm (20.08 in)
C’ 560 mm (22.05 in)
C’’ 590 mm (23.23 in)
D 70 mm (2.75 in)
E 400 mm (15.75 in) *¹
F 200 mm (7.87 in) *¹
C
C’
C’’
E
F
E
A
BB’B’’
D
B’’’
431 2
