Mounting procedure: dimensions, space and handling
30
HS-RC-C5E-TIN_02.fm
00/0411
3.7.1 Lifting the C5G packaged in closed crate
Lifting data
Weight to be lifted *¹: 190 to 270
kg
419 to 595
lb
*¹The weight may differ depending on the
version, in particular in case it deals with the
one supplied with Application Box. Always
refer to the plate posted on the Control Unit.
With crane or bridge crane (A)
Rope no.: 2
Rope length (approx.): 6000 mm*²
*²Adjust in case of version with Application
Box, keeping the 60° inclination angle
unaltered as shown in the picture
With lift truck (B)
Fork length: >1000 mm
Distance between fork
centers:
530 mm
Operating procedure with crane or bridge crane(A)

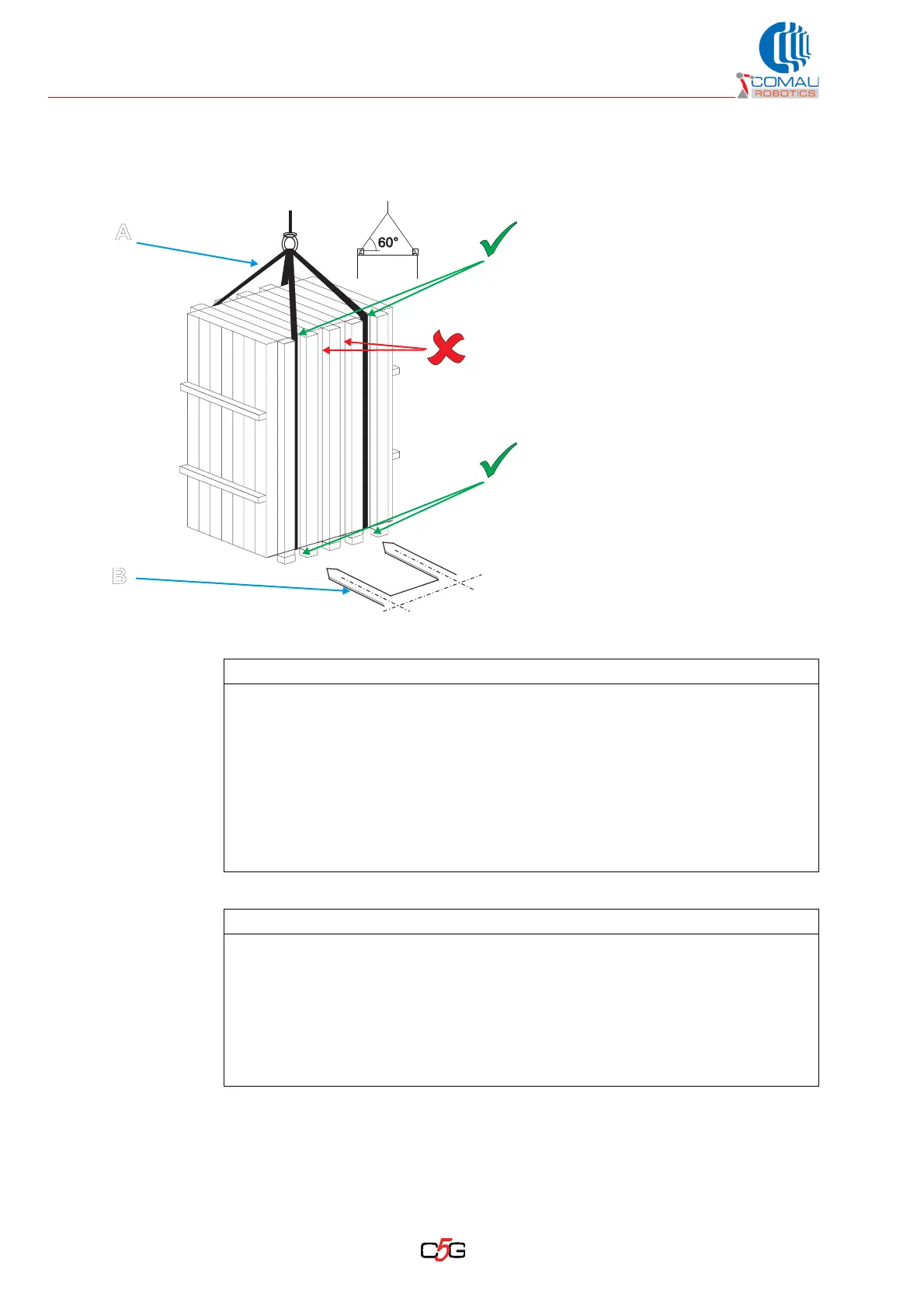

a. Place the 2 ropes underneath the crate as shown in the drawing.
b. Join the ends by the lifting hook.
c. Lift and move near the installation position.
d. After reaching the installation position, remove the ropes.
e. Carry out the procedure described in par. 3.8 Procedure to remove the crate,
protection cloth and pallet on page 33.
Operating procedure with lift truck (B)
a. Place the forks as required.
b. Make sure the fork ends jut out the crate opposite side.
c. Lift and move near the installation position.
d. Carry out the procedure described in par. 3.8 Procedure to remove the crate,
protection cloth and pallet on page 33.
