Mounting procedure: dimensions, space and handling
24
HS-RC-C5E-TIN_02.fm
00/0411

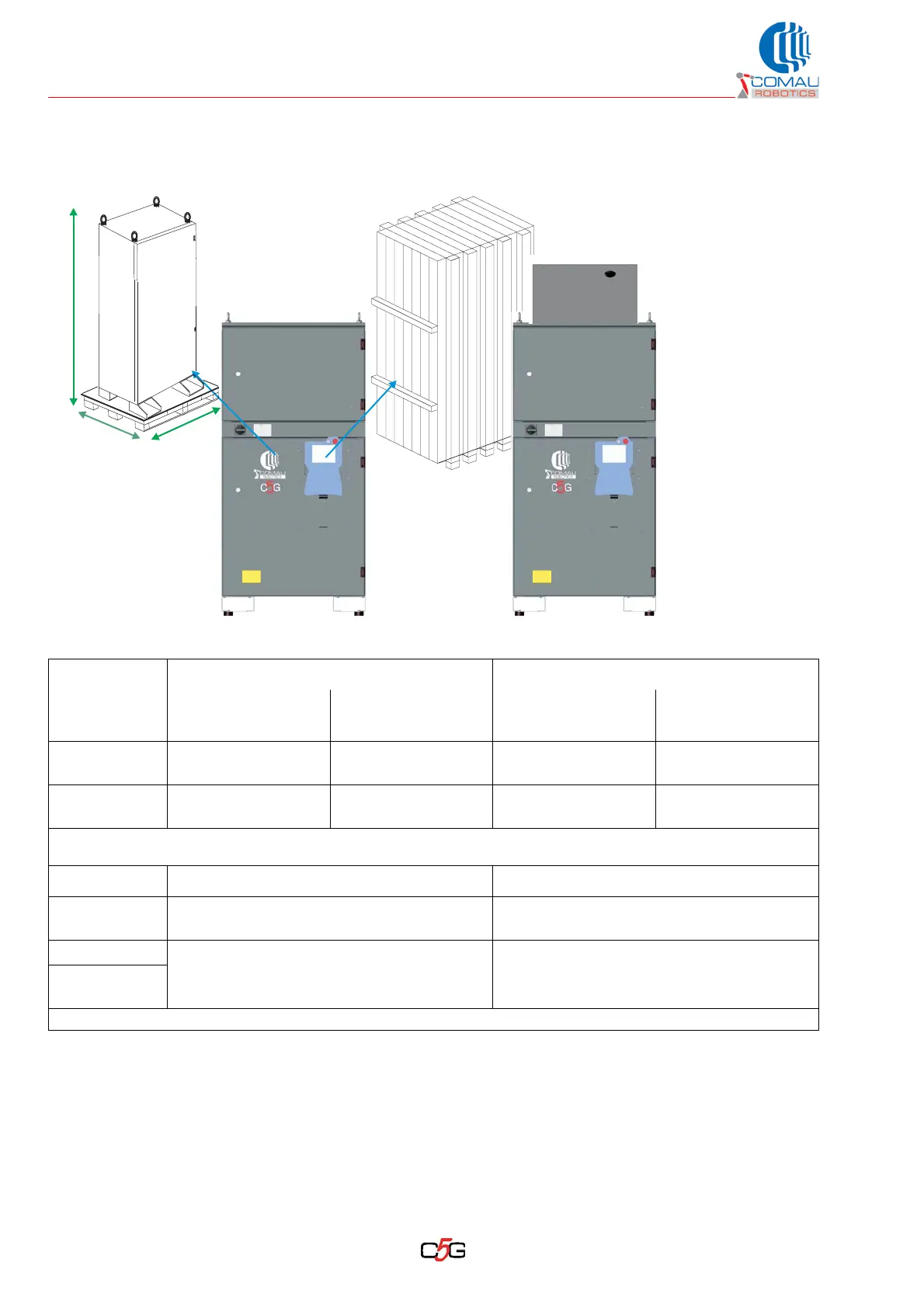

3.4.3 C5G featuring Application Box
Supply
modality
Without conditioner (C) With conditioner (D)
On pallet
(A)
In closed crate
(B)
On pallet
(A)
In closed crate
(B)
Weight *¹
180 kg
397 lb
225 kg
496 lb
215 kg
474lb
260 kg
573 lb
Size *²
1200x800x1870 mm
47.2 x 31.5 x 73.6 in
1000x800x1900 mm
39.4 x 31.5 x 74.8 in
1200x800x2210 mm
47.2 x 31.5 x 87.0 in
1000x800x2240 mm
39.4 x 31.5 x 88.2 in
*¹ typical weight. It may differ depending on the equipment installed inside. Refer to the identification plate posted on the Application Box.
*² approximate size (width x depth x height)
No package, without conditioner (C) No package, with conditioner (D)
Weight *¹
160 kg
363 lb
195 kg
430 lb
Size
see par. 3.5 see par. 3.6
Installation
position
*¹ typical weight. It may differ depending on the equipment installed inside. Refer to the identification plate posted on the Application Box.
C
B
D
A
w
d
h
