Comau Robotics C5G Instruction Handbook

Mounting procedure: dimensions, space and handling
26
HS-RC-C5E-TIN_02.fm
00/0411

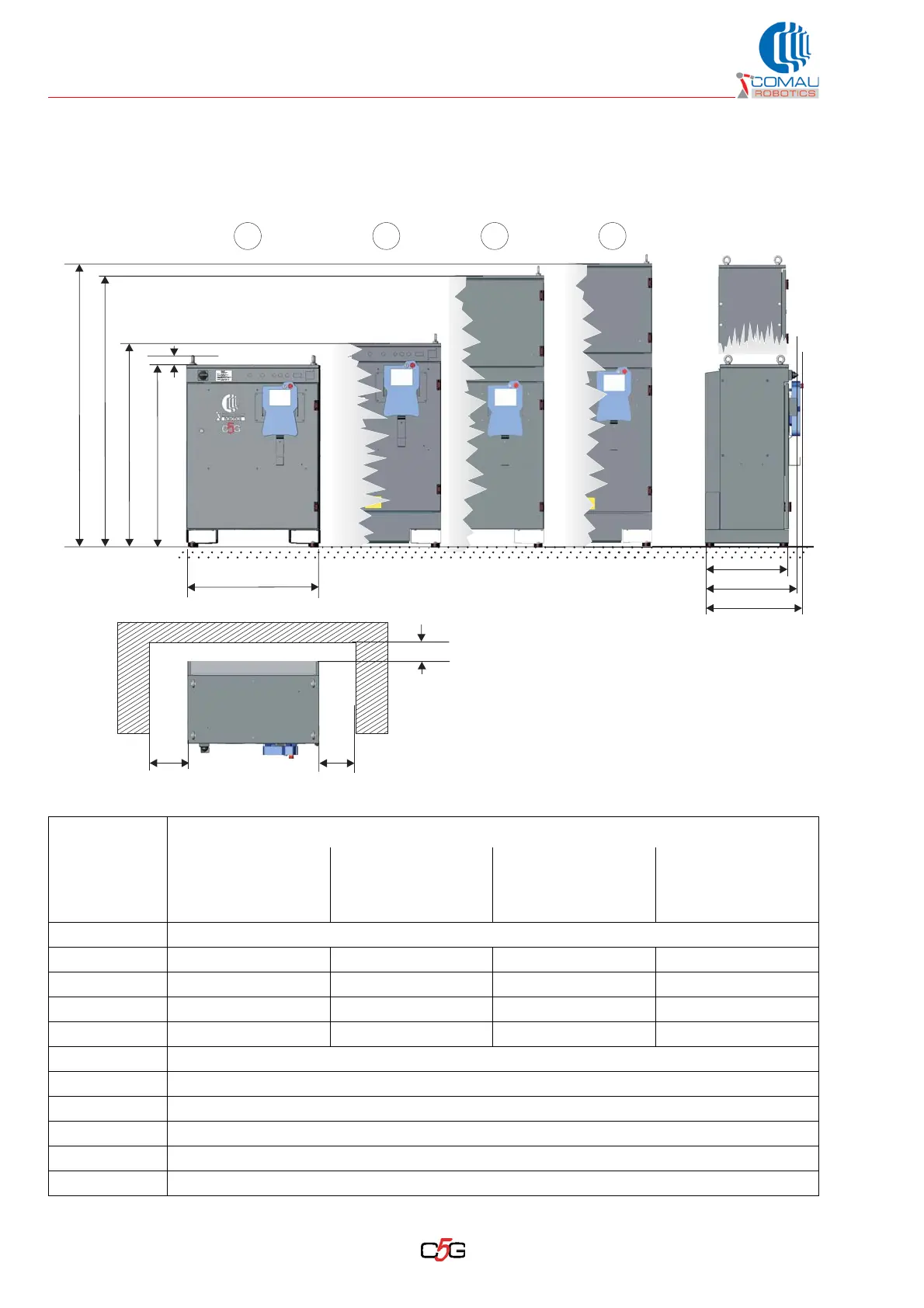

3.5 Overall dimensions and installation space
required for the C5G
(without conditioner)
Item
C5G Control Unit version (without conditioner)
Standard With rising socket With Application Box
With rising socket
and Application Box
(1) (2) (3) (4)
A 800 mm (31.49 in)
B 1110 mm (43.70 in) -- -- --
B’ -- 1210 mm (47.63 in) -- --
B’’ -- -- 1650 mm (64.96 in) --
B’’’ -- -- -- 1750 mm (68.90 in)
C 510 mm (20.08 in)
C’ 560 mm (22.05 in)
C’’ 590 mm (23.23 in)
D 70 mm (2.75 in)
E 400 mm (15.75 in) *¹
F 200 mm (7.87 in) *¹
C
C’
C’’
E
F
E
43
A
B
B’
B’’B’’’
D
1 2
