Mounting procedure: dimensions, space and handling
31
HS-RC-C5E-TIN_02.fm
00/0411

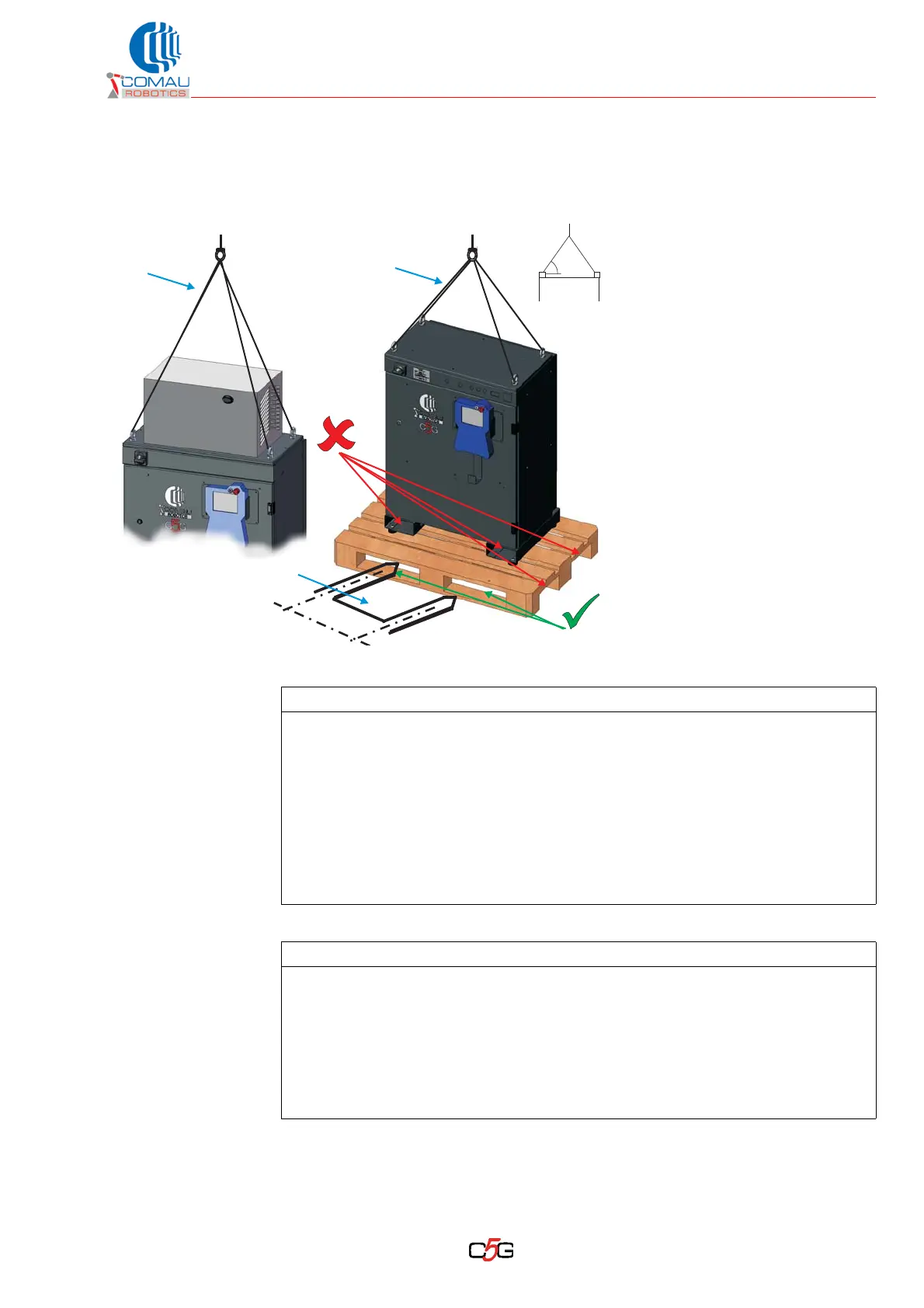

3.7.2 Lifting the C5G on pallet without crate (Europallet 1200 x
800 mm)
Lifting data
Weight to be lifted*¹: 145 to 260
kg
320 to573
lb
*¹ The weight may differ depending on the
version, in particular in case it deals with the
one supplied with Application Box. Always
refer to the plate posted on the Control Unit.
With crane or bridge crane (A)
Rope no.: 4
Rope lenght: 1000 mm
With lift truck (B)
Fork length: >1000 mm
Distance between forks
centers:
530 mm
Eyebolts
On Control Unit: 4 x M12
female
Operating procedure with crane or bridge crane (A)
a. Check the fastening of the 4 eyebolts already indtalled on the box upper part.
b. Fasten hooks and ropes to the 4 eyebolts on the cabinet, as shown in the
drawing, (also when the conditioner is installed).
c. Lift while keeping in balance and move near the installation position.
d. After reaching the installation position, it is not necessary to remove ropes and
hooks. Carry out the procedure described in par. 3.8 Procedure to remove the
crate, protection cloth and pallet on page 33.
Operating procedure with lift truck (B)
a. Place the forks as required.
b. Make sure the fork ends jut out the crate opposite side.
c. Lift while keeping in balance and move near the installation position.
d. Carry out the procedure described in par. 3.8 Procedure to remove the crate,
protection cloth and pallet on page 33.
A
B
A
>=60°
