Safety circuits: minimum requirements for integration
59
HS-RC-C5E-TIN_05.fm
00/1010

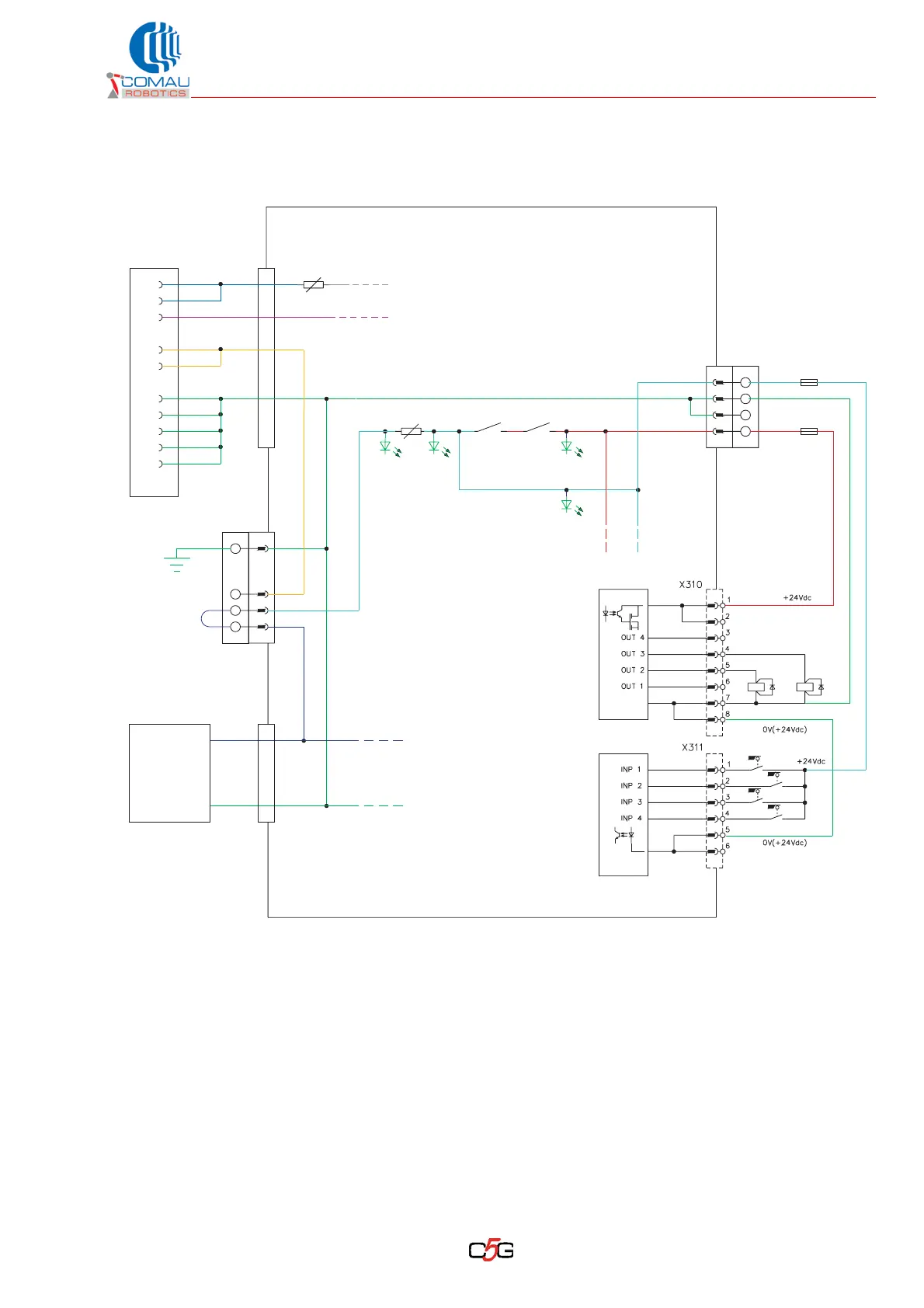

Fig. 6.4 - 24 Vdc power supply cutoff circuit on X106/SDM:
outline diagram
Provide for suitable protections against overloads and short circuits down the X106/SDM connector.
Refer to the technical features in Tab. 6.4 - X106/SDM: pin structure and features on page 60
