Comdial G0408 - Page 75

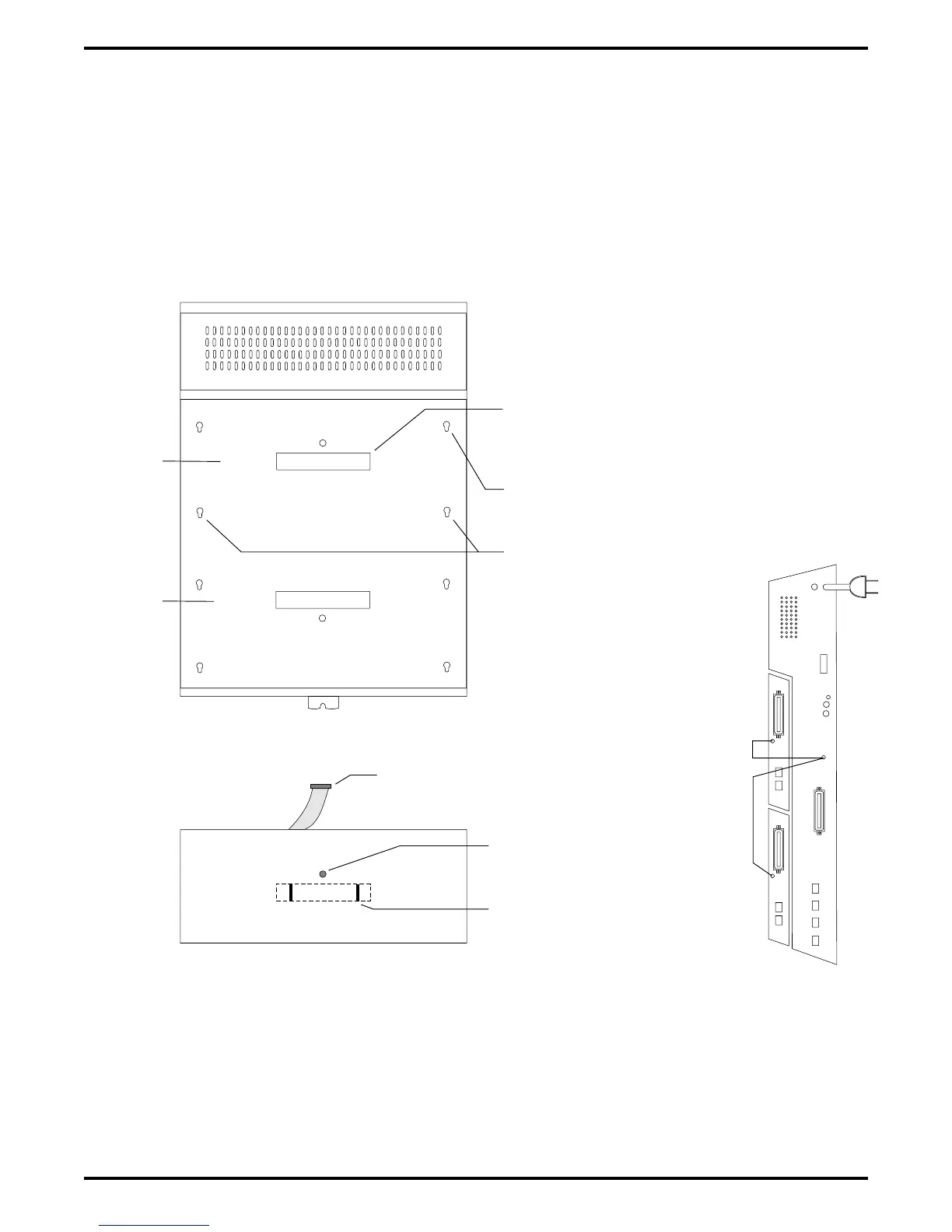

Figure 2–21: Installing The Add-On Expansion Module
Typical Base Unit
Typical Add-On Module
(8-Line, 16-Station Base Unit)
Nameplate
(Remove to expose base
unit connectors)
Top
Location
Bottom
Location
Upper Mounting Holes
(2 Places)
Lower Mounting Holes
(2 Places)
Connecting Cable
and Plug
Snap Slots for
Nameplate
Securing
Screw
Ground
Modules
to Base
Unit
AM012
IMI66–107 Digital Telephone System
Installing The DSU 2 – 45
