2. Remove any paper and the tractor-feed mechanism (if installed).
Remove the paper feed knob.
3. Remove the printer cover and ribbon cartridge.
4. Remove the retaining screw that secures the upper case. It is
located
just above the MPS 1200 logo where the ribbon car-
tridge sits (see Fig.ure A-1).
5. With a screwdriver, release the two tabs at the front of the upper
case. Lift up the front of the case and free the upper case from
the rear of the printer. Set the upper case aside for now.

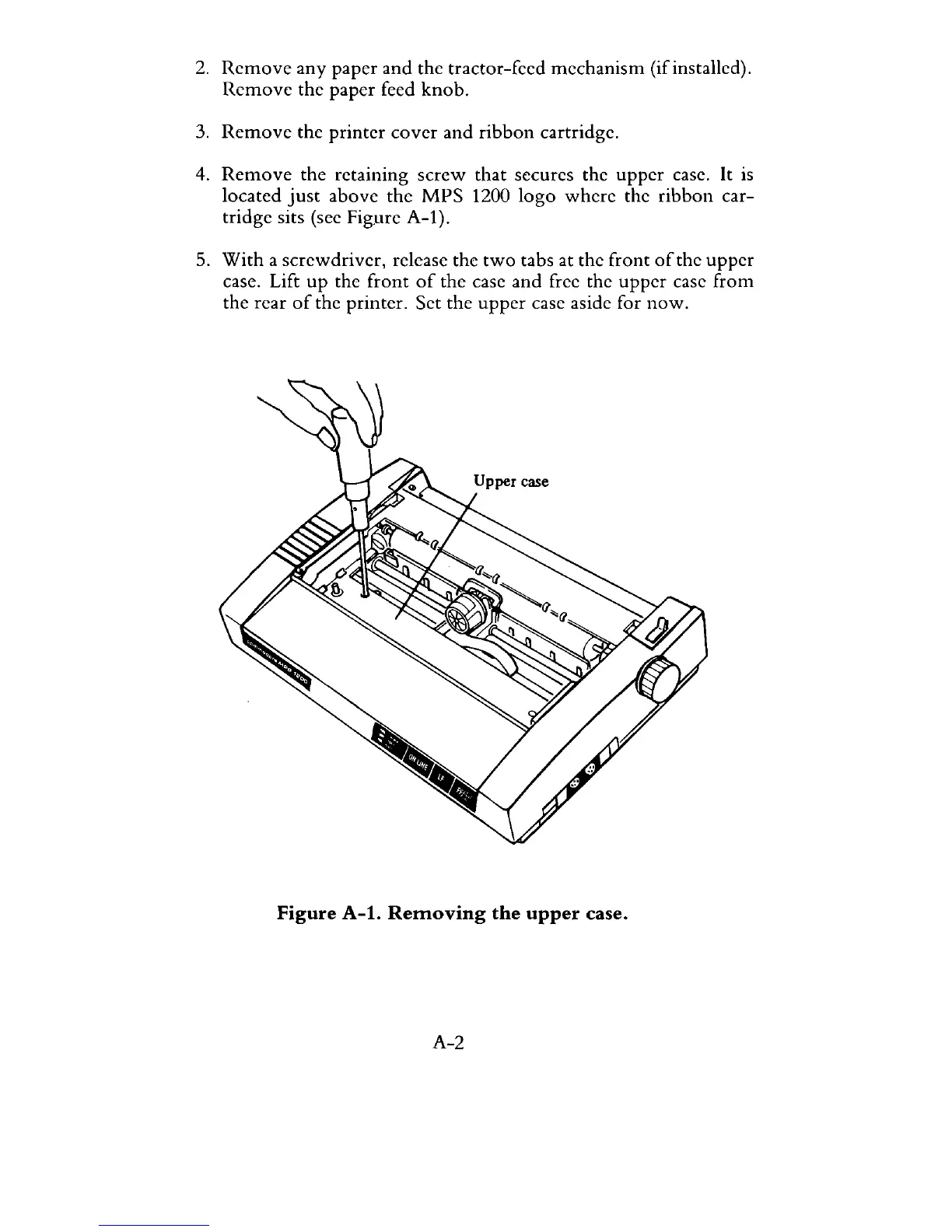

Figure A-1. Removing the upper case.
A-2
