2.
Push
in the
two
release levers
on
the back
of
each
end
of
the
tractor-feed,
and
place the plastic
hooks
on
the
bottom
of
the
tractor
into
the tabs
on
the printer.
The
casing
of
the
printer
is
shaped
to
accommodate
the tractor-feed,
which
makes it easy
to
place in the correct position.
3.
When
you've
set the tractor-feed in position
on
the printer,
you
can
now
let
go
of
the
release levers to lock the
unit
into
place.
4. Install the
paper
supports
and space
them
evenly
on
the tractor
unit.
You
can replace the printer
cover
if
you
like.
Release lever on the back

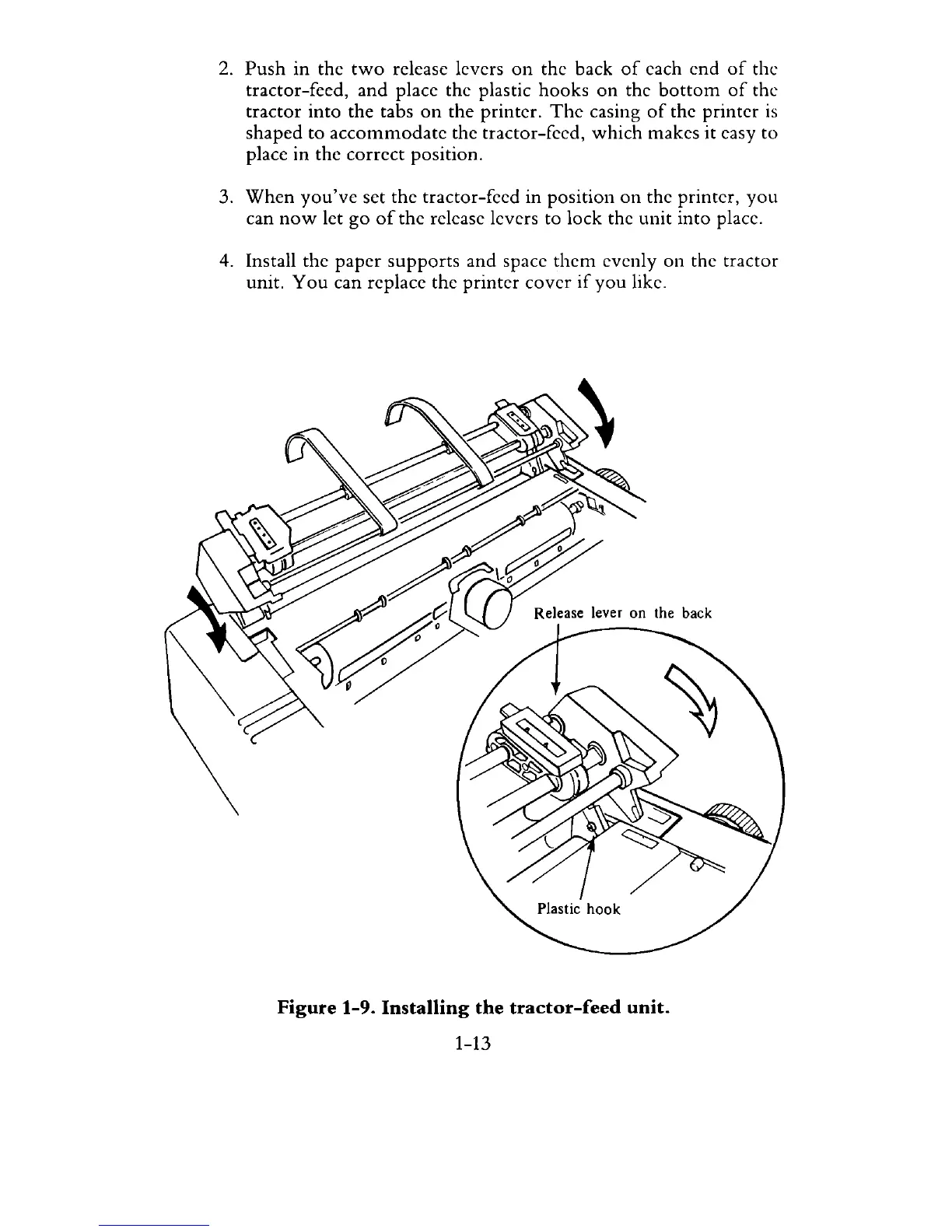

Figure 1-9.
Installing
the
tractor-feed
unit.
1-13
