Medium Power Carrier Access Point Installation Guide
© October 2018 CommScope, Inc. Page 33
Installing CAP Ms
7 FrombothsidesofCAPM-1:
a LoosentheM6pins,leavingitswasherinplace.
b RemovethetwoM6screwsandtheirM6plainandM6split-lockwashers;reservethescrewsand
washersasyouwilllaterreinstallthem.

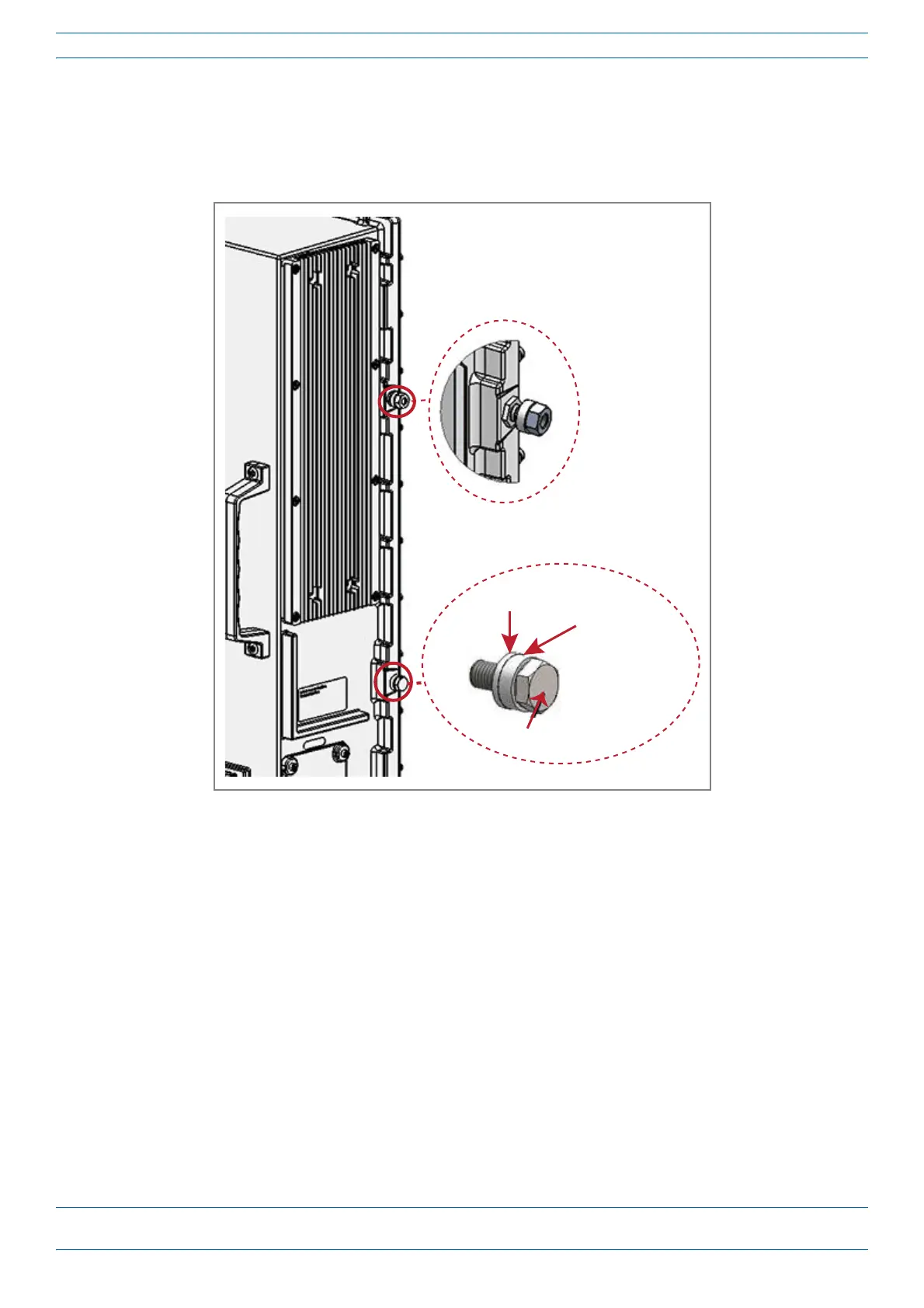

M6 plain washer
M6 split-lock washer
M6x12 screw
Loosen the M6 pin
Remove the M6x12 screw and its washers
