Compal JHL90 - Removing the Power Board

JHL90 Service Manual
1.6 Removing the Power Board
To remove the LCD module, first remove the keyboard. Then follow the steps
below:

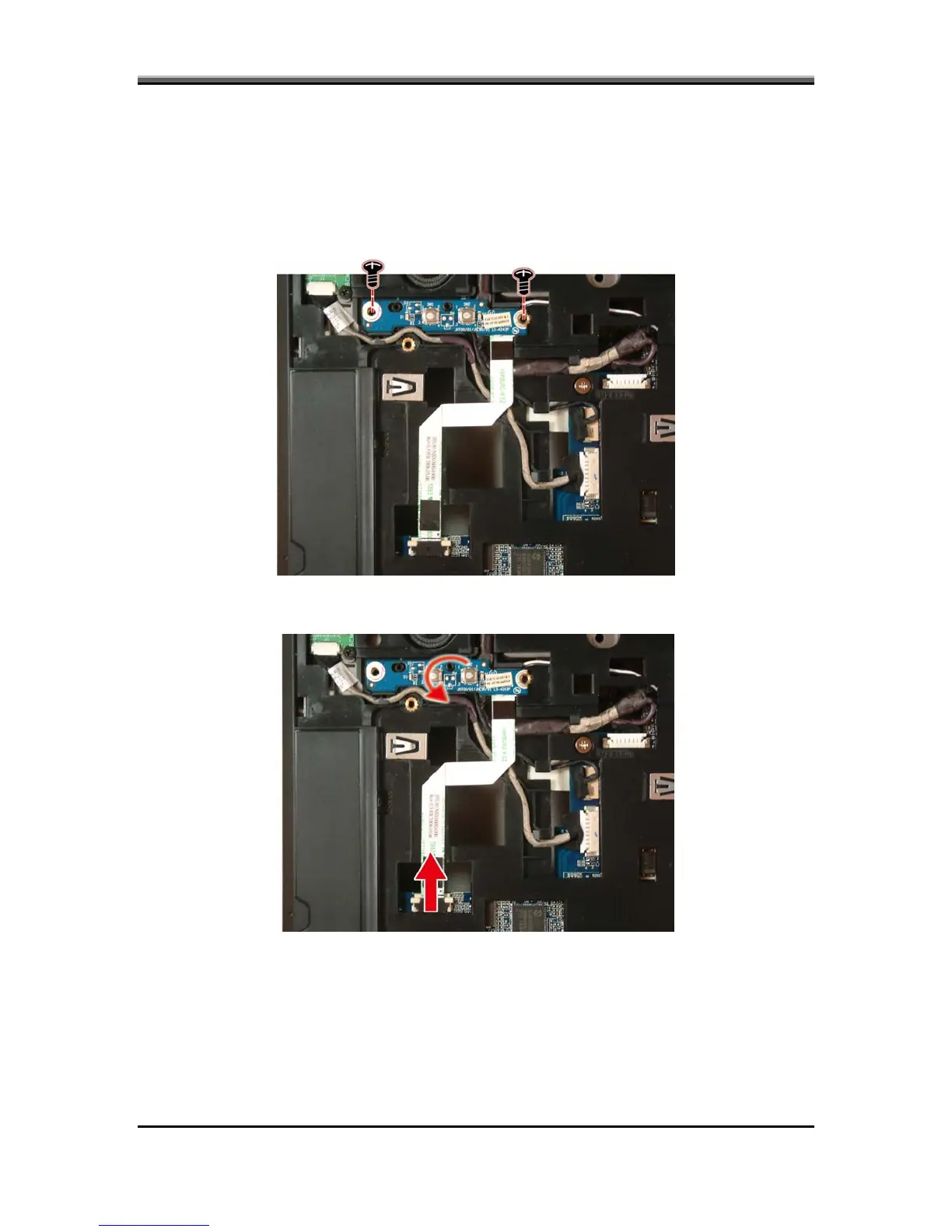

1. Remove two screws securing the power board to the logic upper.
2. Disconnect the power board cable as shown and remove the power board.
5-12
