Compal JHL90 - Removing the Fingerprinter Module

JHL90 Service Manual
1.23 Removing the Fingerprinter Module
To remove the fingerprinter module, first remove the logic upper as described in
the preceding sections. Then follow the steps below:

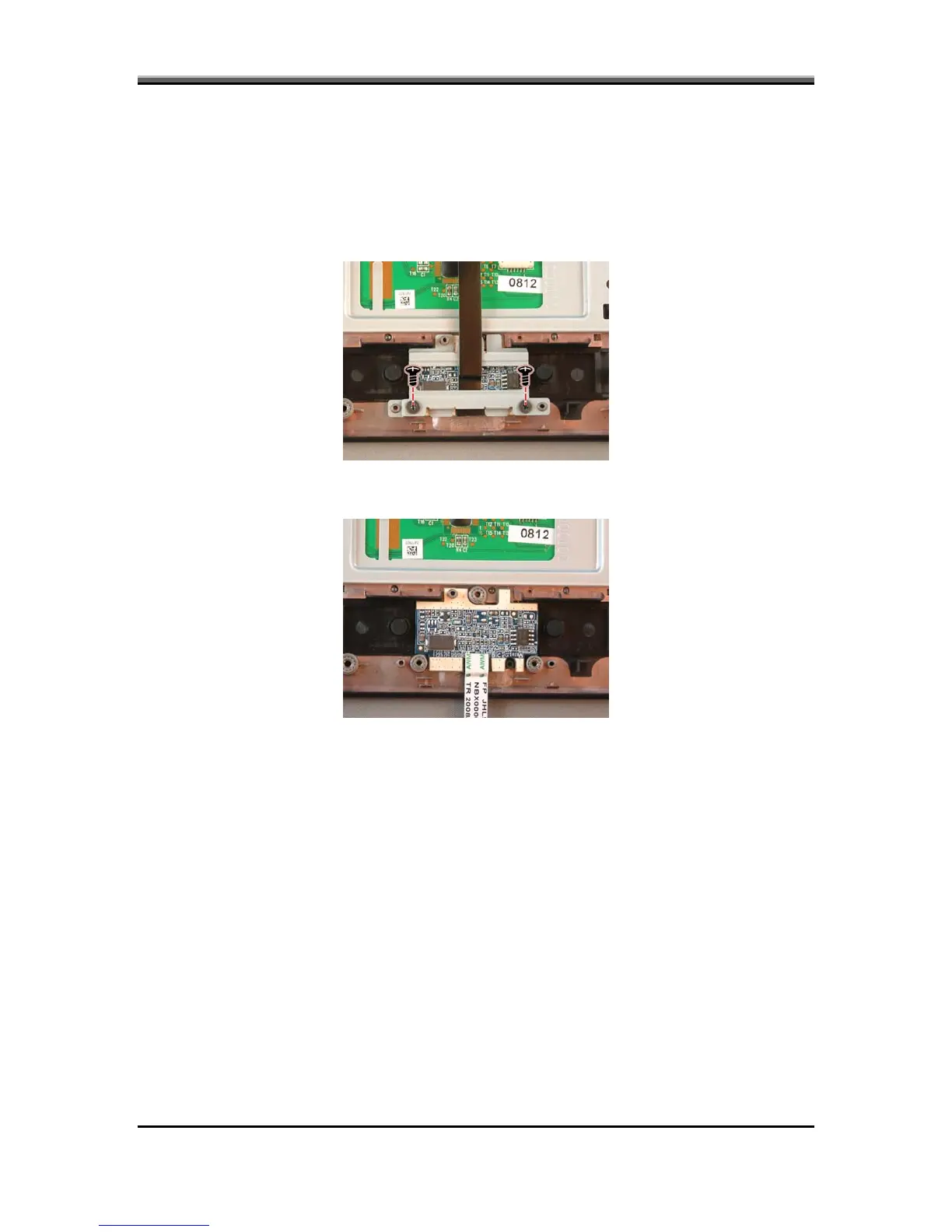

1. Remove the screw securing the fingerprinter module to the rear side of the
logic upper.
rinter module. 2. Remove the fingerp
5-35
