JHL90 Service Manual

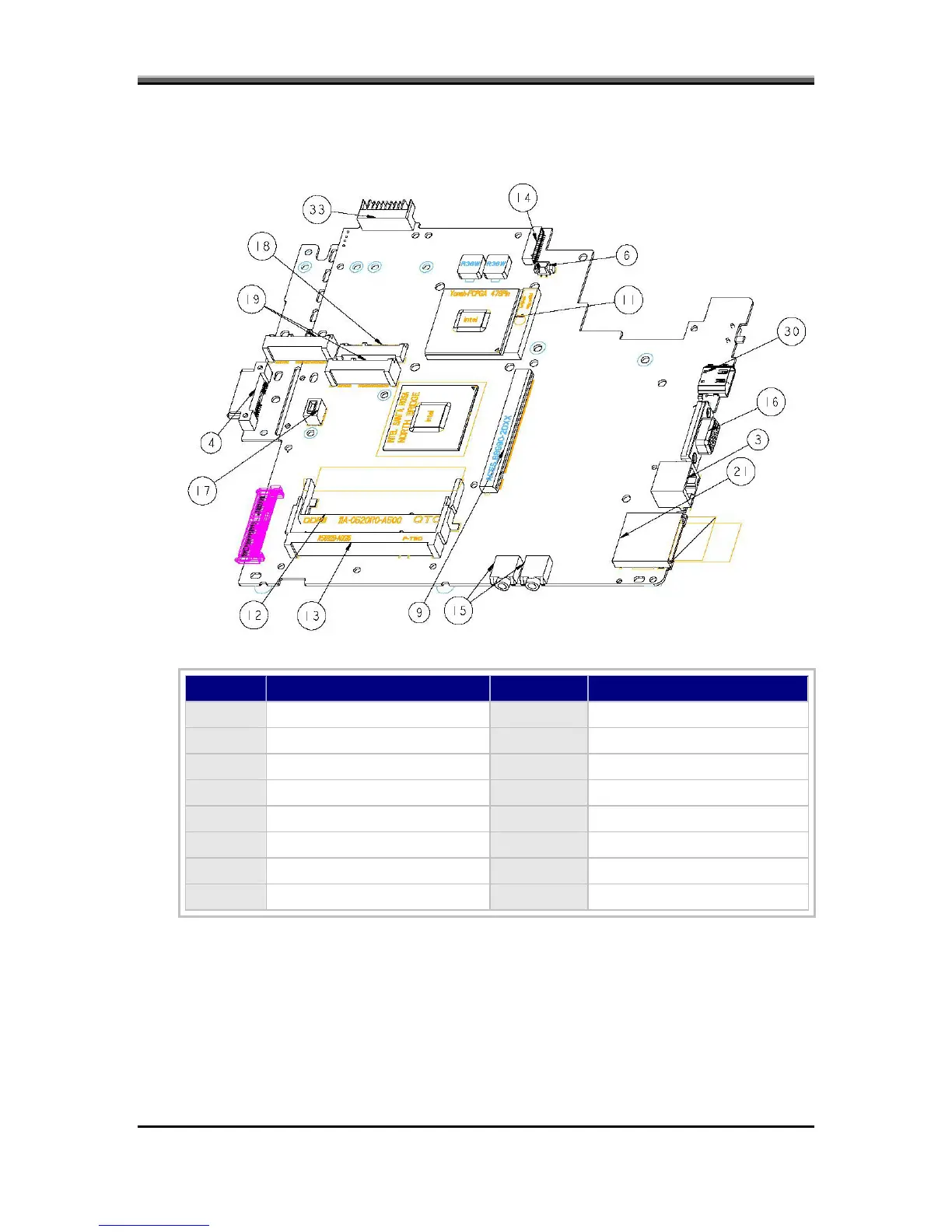

2. Bottom view
Position Description Position Description
3 RJ45 15 Audio Jack (black)
4 ODD Conn 16 D-sub
6 FAN to MLB 17 MDC Conn
9 MXM Board Conn 18 Mini PCI Express Conn (H=4.0mm)
11 CPU SOCKET 19 Mini PCI Express Conn (H=9.9mm)
12 H5.2 DDRII 21 3 IN 1 CARD
13 H9.2 DDRII 30 HDMI CONN
14 LVDS 33 Battery Conn
3-2
