JHL90 Service Manual
• Major Sub-assembly Specification
• System interconnection (For JHL90)

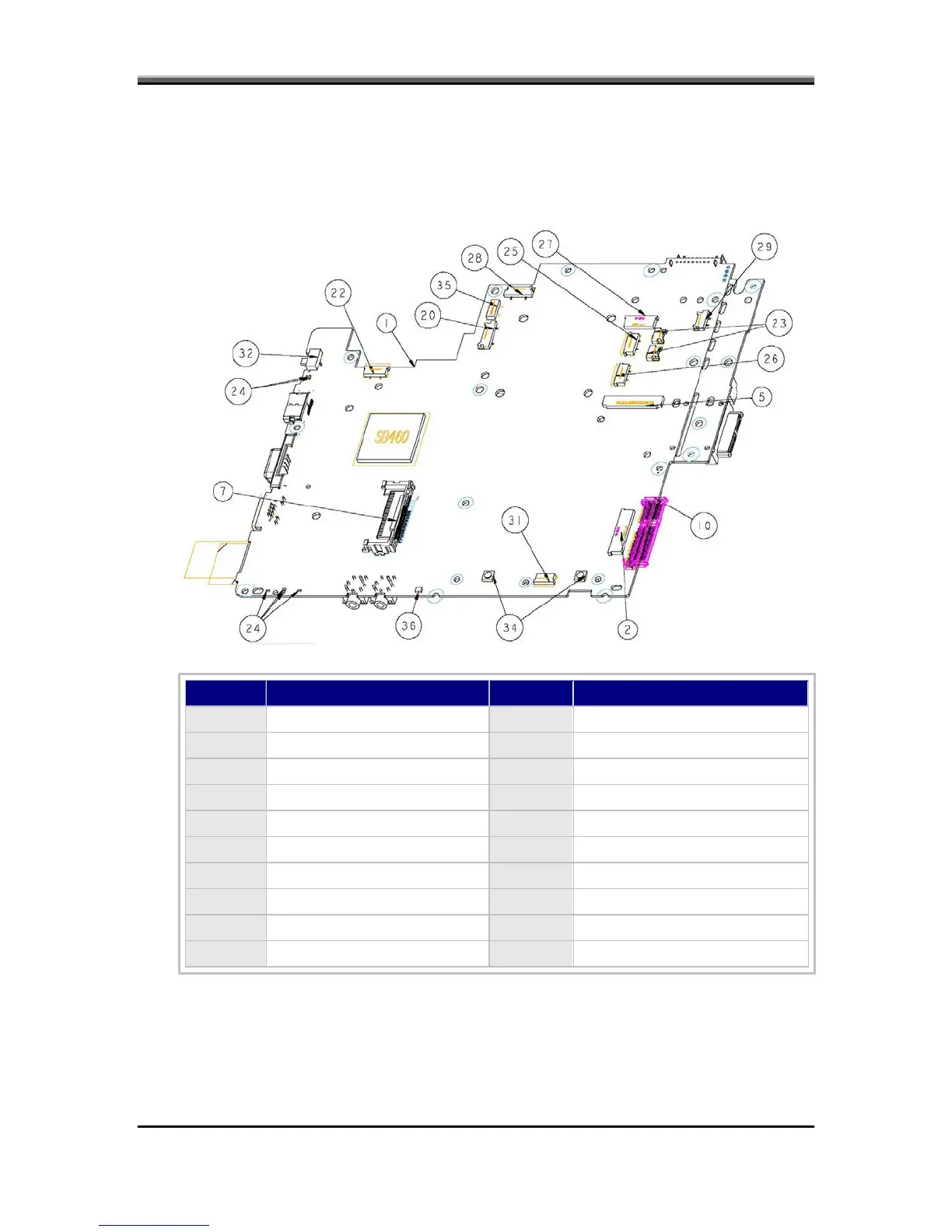

1. Top View
Position Description Position Description
1 MB_PCB 26 F/P Board to MLB
2 USB/Board 27 Function Board to MLB
5 K/B to MLB (25 PIN) 28 Inverter Conn
7 EXP-CARD CONN 29 SPEAKER Conn
10 SATA HDD CONN 31 CIR CONN
20 Bluetooth Conn 32 Kill_SW
22 Power Board Conn 34 SW
23 Internal Mic Conn 35 Camera Conn
24 LED 36 Read Switch
25 T/P Board to MLB
3-1
