JHL90 Service Manual
1.22 Removing the RJ11 Cable
To remove the RJ11 Cable, first remove the logic upper, LED board, and
:
h the cable to remove it from
motherboard as described in the preceding sections. Then follow the steps below

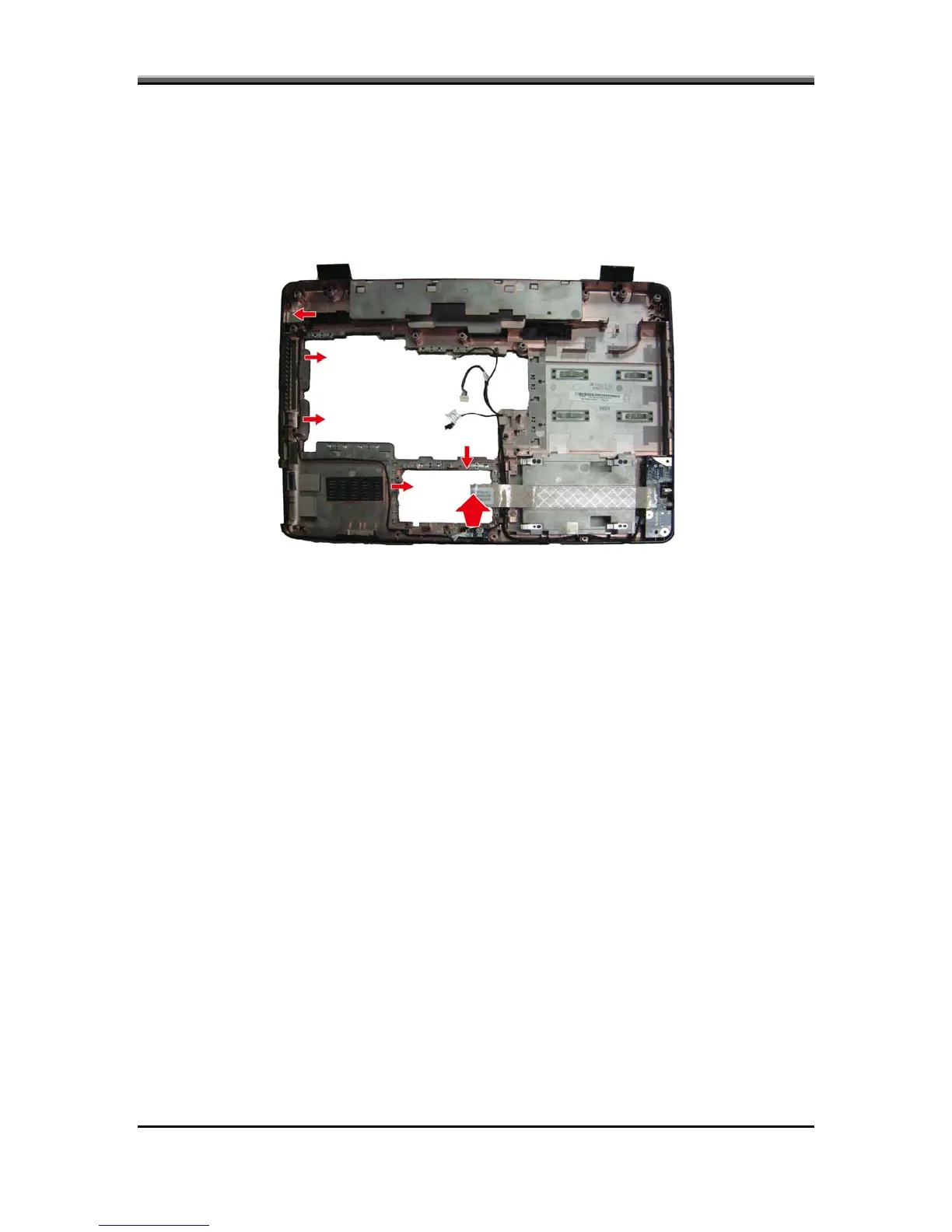

1. Lift the RJ11 Cable from its housing and detac
the logic upper.
5-34
