DEEP LEARNING PLUS USER MANUAL
LINE CROSSING DETECTION
Line Crossing Detection is a function that is triggered whenever a new target object crosses
a configured line within the video source field of view in the specified direction. For example,
the system can be set to trigger if a car is driving the wrong way. Detection is based upon the
centre point of a target object.

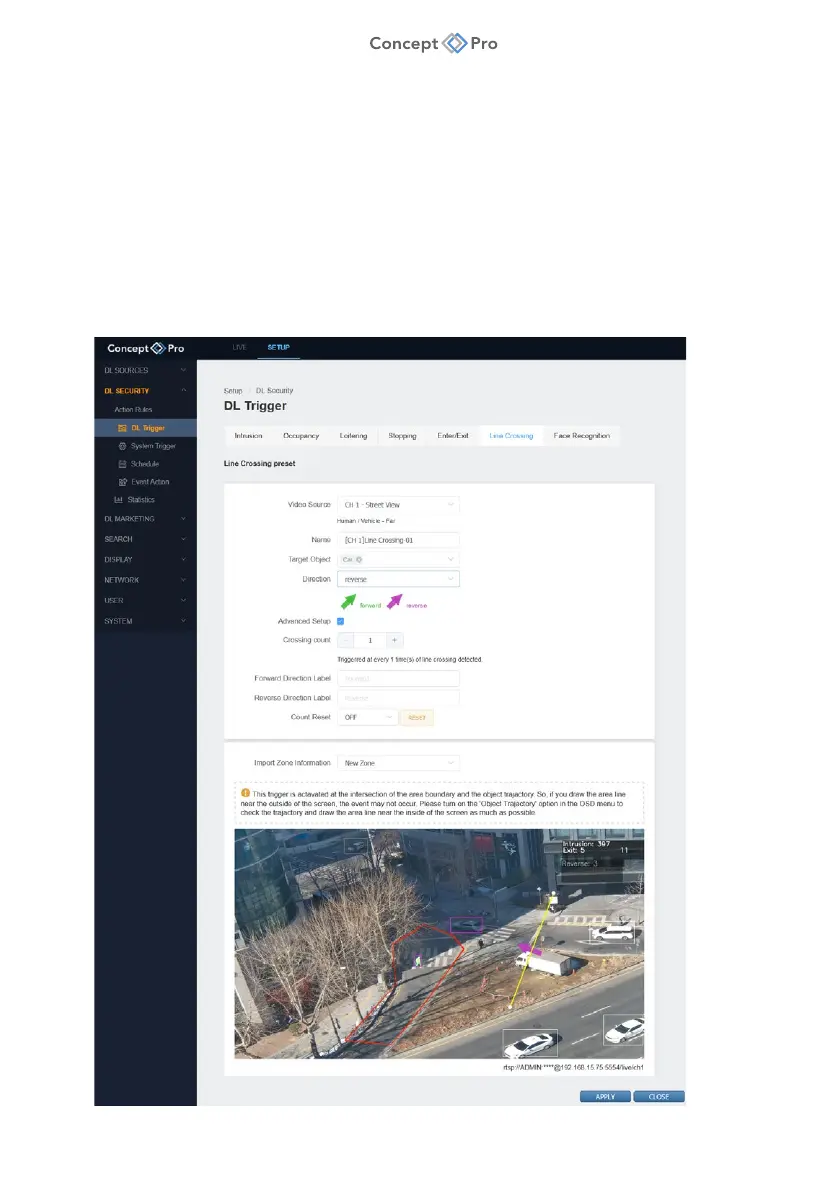

To configure a Line Crossing Detection DL Trigger, please follow the steps below:
1. From the <SETUP> tab, navigate to <DL SECURITY> - <DL TRIGGER> menu.
2. Select the <LINE CROSSING> tab.
3. Click the <ADD> button to create a new Line Crossing Detection DL Trigger.
