3.8.3 Connecting the CRC or CRC-NA to the Condair RS/RS OC

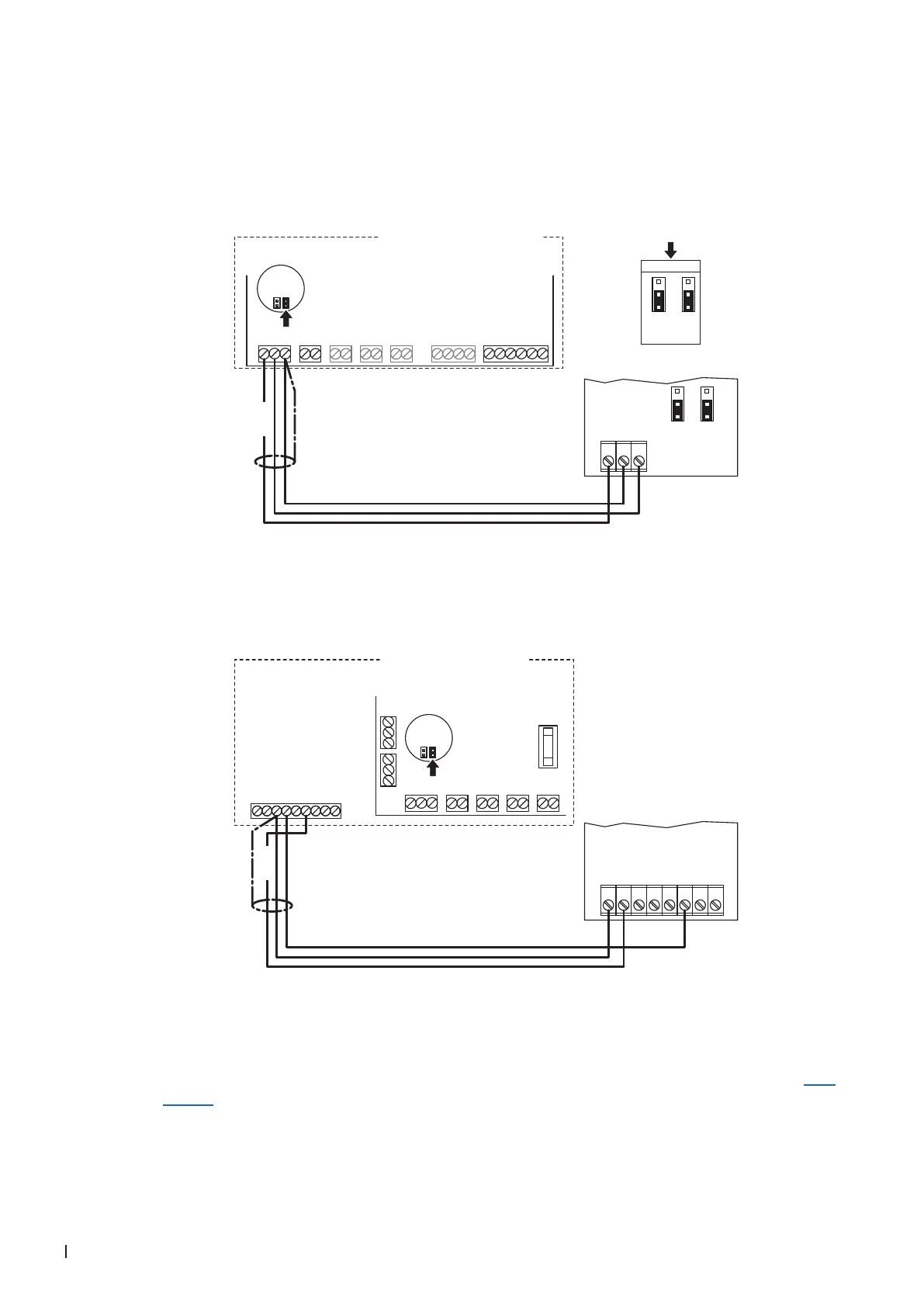

1. Connect the CRC to the corresponding terminals on the driver board of the Condair RS/RS OC
(ROW) according to the following diagram.
Note: The voltage supply of the CRC is established via the terminals "V+" and "GND" of terminal
block "X8" or via an external 24 V AC/DC voltage supply.
MAINS SUPPLY
L N SC1SC2PEPE
MODULE B
24VDCBLOWERLIMIT ENABLECONTROL
V+
X8
X9 X12 X11 X10 X7 X1
INGND IN GND 24V IN24V IN 24V GND
JP2 (24V) JP1 (10V)
***
0...10V
JP1
2
3
1
JP3
2
3
1
Condair RS/RS OC (ROW)
24 VDC
24V AC/DC 0V/GND H OUT
JP1
2
3
1
JP3
2
3
1
1 2 3
Driver board Condair RS/RS OC Module A
CRC
Connect the CRC-NA to the appropriate terminals of the terminal block "XE2" of the Condair RS/RS
OC (NA) according to the following diagram.
Note: The voltage supply of the CRC-NA is established via the terminals "Control Signals (V+)" and
"Control Signals (GND)" of terminal block "XE2" or via an external 24 V AC/DC voltage supply.
24V AC/DC 0V/GND A0 2-10V
1 2 3 4 5 6 7 8
Condair RS/RS OC (NA)
BLOWERLIMIT ENABLECONTROL
V+
X8
X9 X12 X11
INGND IN GND 24V IN24V IN
RS485-1 RS485-2
GND D–D+ GND D–D+
24VAC External Safety Loop Control signal (GND) Control signal (IN) Limit signal (IN) Control signal (V+) Limit signal (GND) Safety circuit BP Safety circuit BP
1 2 3 4 5 6 7 8 9
XE2
24 VDC
24VDC
X10
24V GND
JP2 (24V) JP1 (10V)
Driver board
Condair RS/RS OC
Module A
CRC-NA
2. Set a jumper on JP2 (24V) on the driver board of the Condair RS/RS OC and remove the jumper
on JP1 (10V), if present.
3. Only for CRC: Set the output signal of the CDC to "0-10V" using the Jumpers JP1 and JP3 on the
control board of the CRC.
Note: other output signal settings (e.g. 4-20mA) are also possible, see CRC jumper settings in Sec-
tion 3.7.
