- 19 -
-
-
-
5.
5.
5.
5. V
V
V
V iewBed
iewBed
iewBed
iewBed
This monitor can view one parameter waveform and measured data from another patient monitor
(viewbed monitor) on the same monitoring network.
To
enter the following screen, open FACE SELECT
menu, select VIEWBED SCREEN, and then select EXIT.

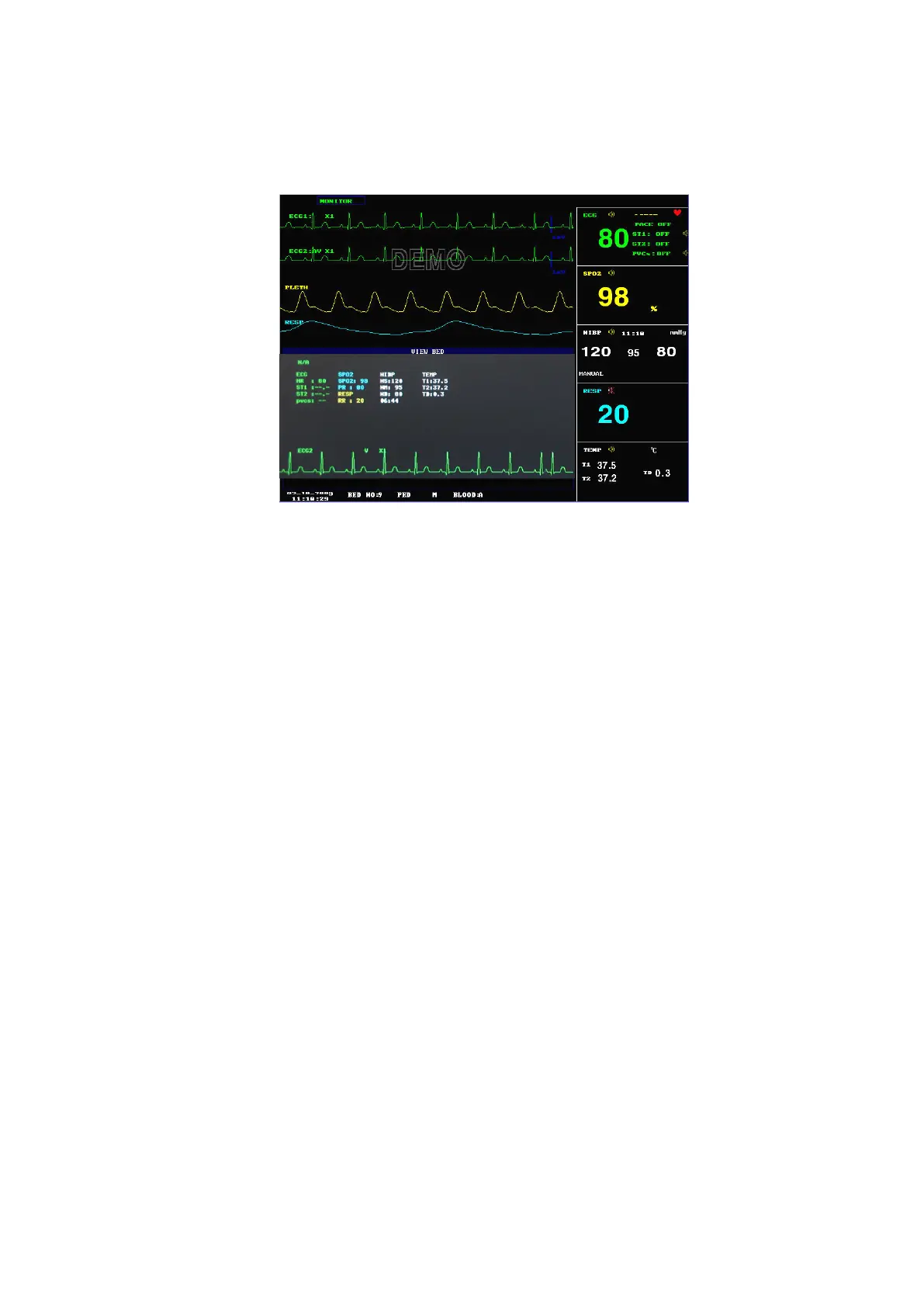

Figure
Figure
Figure
Figure 3-1
3-1
3-1
3-1 2
2
2
2 V
V
V
V iewBed
iewBed
iewBed
iewBed S
S
S
S creen
creen
creen
creen
The monitor you are viewing from is called “ host monitor ” . The monitor being viewed is called “ viewbed
monitor ” . The viewbed screen is always displayed at the lower part of the host monitor ’ s waveform area.
I t consists of the following parts.
1. Viewbed monitor label
The viewbed monitor lable allows you to select the viewbed monitor you want to view. It displays the
bed number of the viewbed monitor. If the host monitor is not connected with any other monitor on the
same network, the label displays N/A.
2 . Viewbed parameter area
All parameter data of the viewbed monitor is displayed in this area.
3 . Viewbed waveform label
The viewbed waveform label allows you to select a waveform of the viewbed monitor. If the viewbed
monitor does not dispaly any waveform, this label displays N/A.
4 . Viewbed waveform area
The viewbed waveform area is located beneath the viewbed waveform label. It displays the waveform
selected through the viewbed waveform label. I nformation relating to the viewbed waveform is shown
above the waveform.
3.4.
3.4.
3.4.
3.4. 2
2
2
2 Wave
Wave
Wave
Wave Setup
Setup
Setup
Setup
Select the [ WAVE SE TUP ] item in the “ SYSTEM SETUP ” menu to call up the following menu:
