the result exceeds set ST HI value or falls below ST LO value.
ALM LEV: used to set up the ST alarm level. There are three selections: HIGH, MED and LOW.
ALM REC: pick "ON" to enable report printing upon ST analysis alarm.
ALM HI: used to set up the upper limit of ST alarm. The max. higher limit is 2.0. The minimum
higher limit is 0.1 larger than the set lower limit.
ALM LOW: used to set up the lower limit of ST alarm. The minimum lower limit is – 2 .0. The max.
lower limit is 0.1 lower than the set higher limit.
ST analysis alarm limits:
Max. ST HI M in . ST LO Step
ST 2.0 mv -2 . 0 mv 0.1
■ DEF POINT pick this item to access the DEF POINT window, in which the position of ISO and ST
point can be set up.
ISO Base point. .
ST Measurement point.
Figure
Figure
Figure
Figure 11-9
11-9
11-9
11-9 DEF
DEF
DEF
DEF POINT
POINT
POINT
POINT window
window
window
window

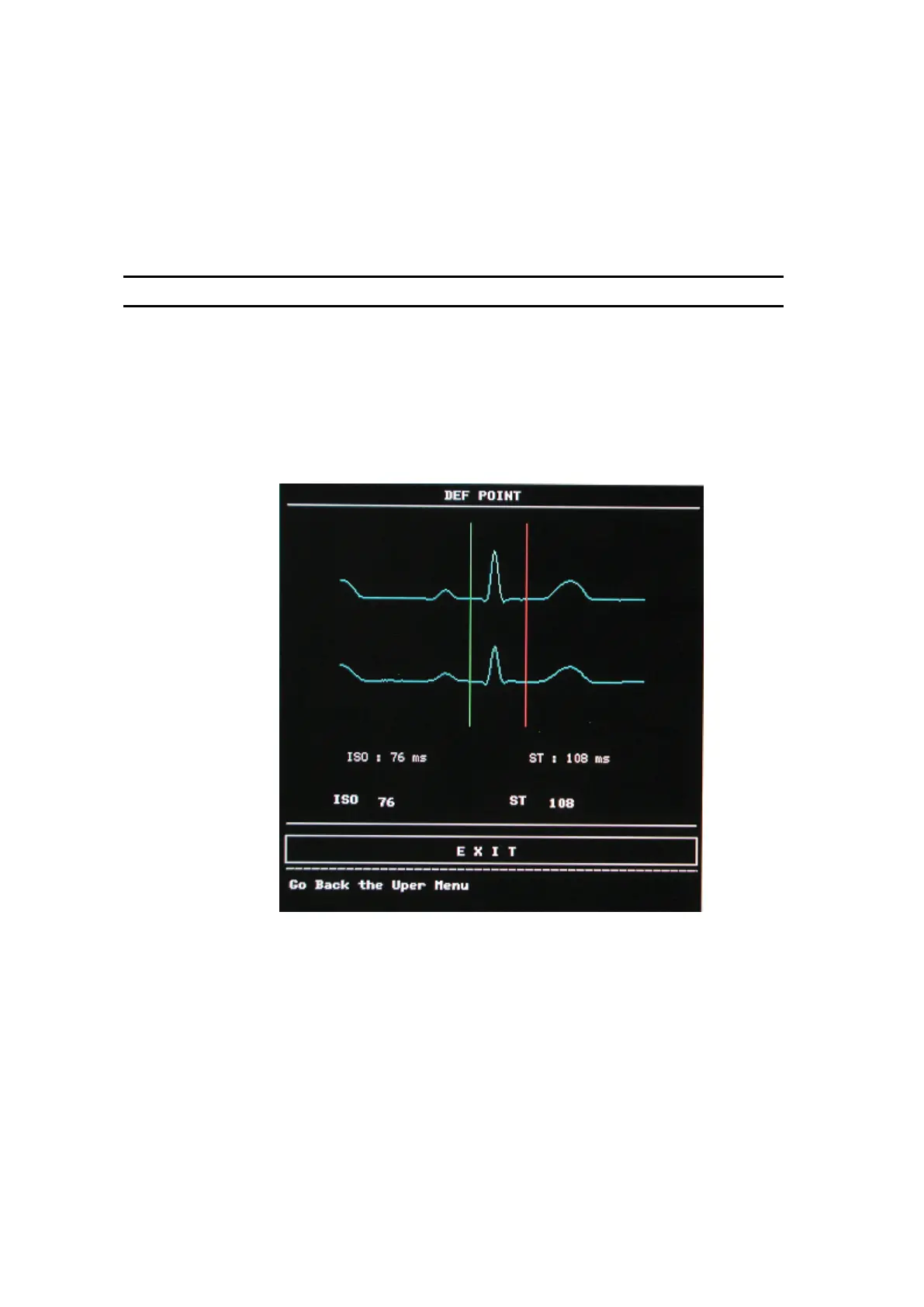

The operator can adjust the position of both ISO and ST measurement points.
The reference point is the position where the peak of R-wave locates ( see Figure
11
-10 ).
