- 82 -
-
-
-
Figure
Figure
Figure

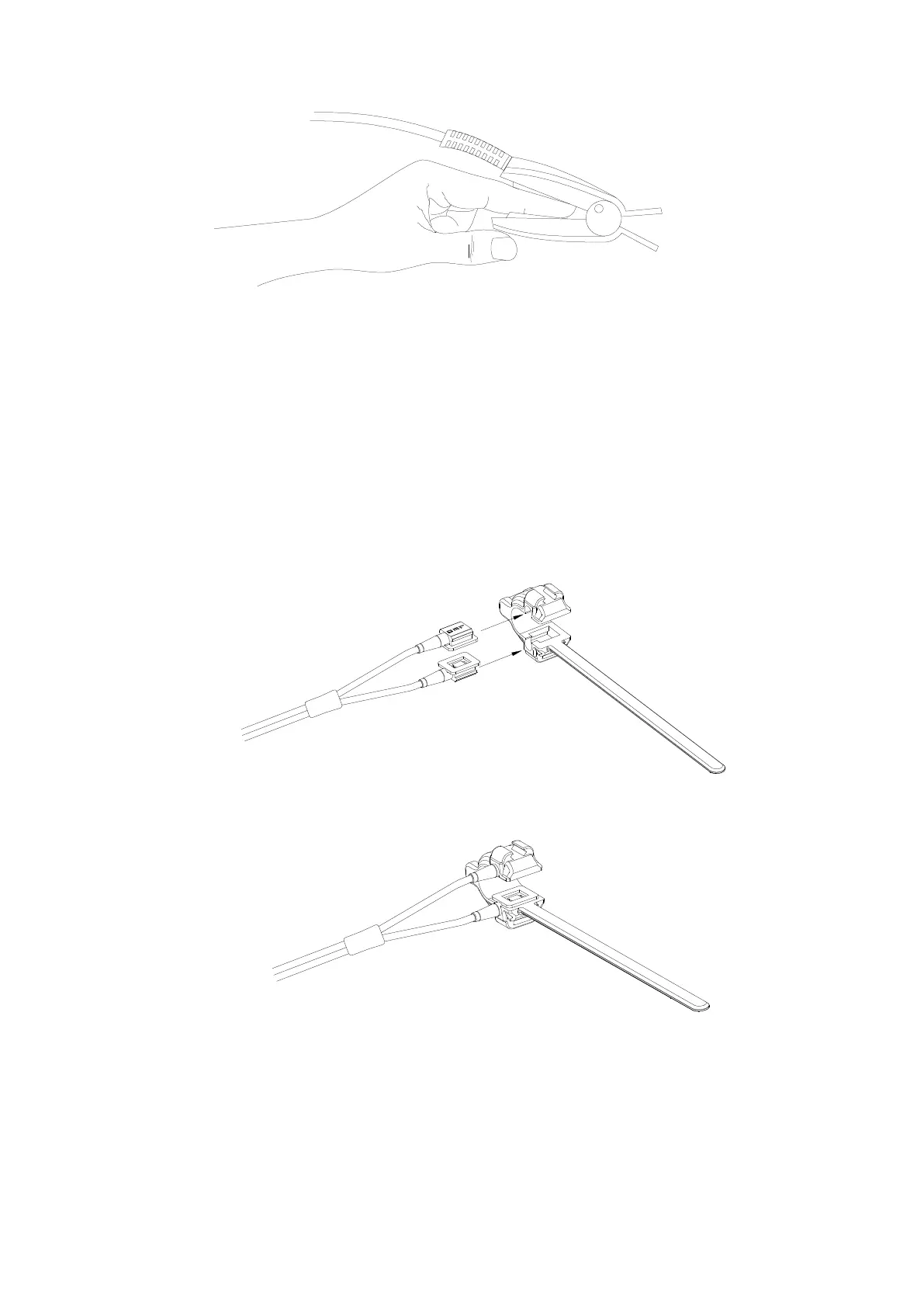

Figure 12-1
12-1
12-1
12-1 Mounting
Mounting
Mounting
Mounting of
of
of
of the
the
the
the sensor
sensor
sensor
sensor
■ Neonate
Neonate
Neonate
Neonate SpO
SpO
SpO
SpO
2
2
2
2
Measurement
Measurement
Measurement
Measurement
The process of measuring neonate SpO
2
is similar to that of measuring adult SpO
2
. Below is the
description of neonate SpO
2
sensor and its installation.
1. Neonate SpO
2
sensor
Neonate SpO
2
sensor consists of Y-form SpO
2
sensor and its sheath. Insert the LED and PD ends of
the Y-form SpO
2
sensor respectively into the upper and lower grooves on the sheath (figure 12-2).
Figure 12-3 shows us the neonate SpO
2
sensor after insertion.
Figure
Figure
Figure
Figure 12-2
12-2
12-2
12-2 Neonate
Neonate
Neonate
Neonate SpO
SpO
SpO
SpO
2
2
2
2
sensor
sensor
sensor
sensor (1)
(1)
(1)
(1)
Figure
Figure
Figure
Figure 12-3
12-3
12-3
12-3 Neonate
Neonate
Neonate
Neonate SpO
SpO
SpO
SpO
2
2
2
2
sensor
sensor
sensor
sensor (2)
(2)
(2)
(2)
2. Attaching Neonate SpO
2
sensor
Wind the SpO
2
sensor around a hand or foot. Hold the sensor, pull the belt and fit one of its sides with
“ V ” edge into the “ V ” groove on the corresponding side of the sheath. Appropriately elongate the belt
(about 20mm) and fit the “ V ” edge of the other side of the belt into the “ V ” groove of the other side of the
