FM-3 Programming Module Reference Manual
Jog View
Jogging produces rotation of the motor at controlled velocities in a positive or negative
direction. The jog is initiated with the Jog.#.Initiate destination or from a program.

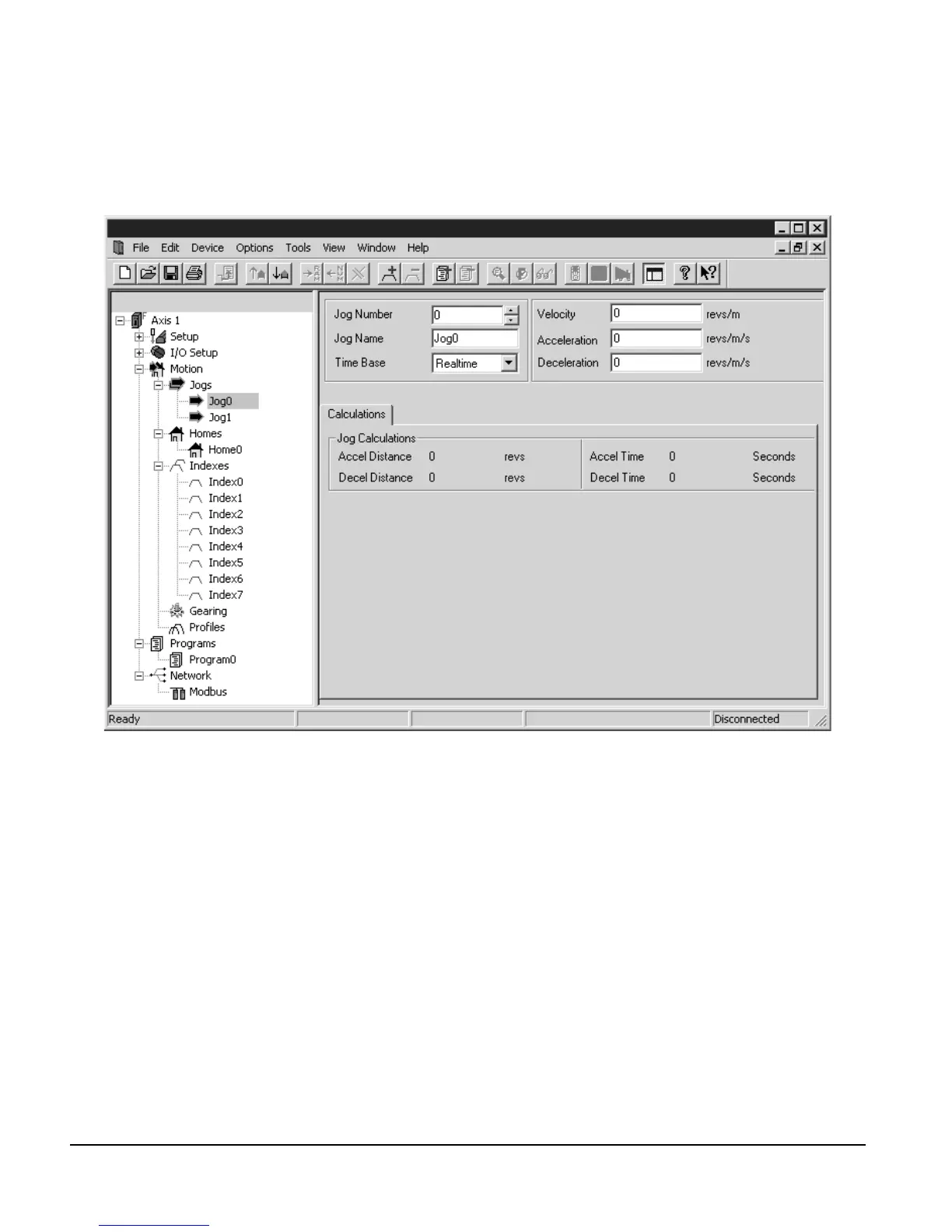

Figure 53: Jog View
Jog Number
This scroll box allows you to select between Jog0 and Jog1 setup views.
Jog Name
This is a descriptive character string which can be assigned to the specific jog. Giving a name
to a jog can make the motion setup easier to follow.
Time Base
This list box allows the user to select between a jog that is based on time (Realtime) as defined
by user units, normally in seconds, or a time based on Master position via an external encoder
(Synchronized) set in the Master Units View.
