Setting Up Parameters
Setup View
The Setup View contains all of the primary system setup parameters. These parameters must
be setup prior to using your system.
By selecting Setup in the Hierarchy View, the Setup view will appear on the right side of the
view (see Figure 28). The Setup view is divided into six groups, with an explanation of each
function. The groups are Identification, Configuration, Drive Encoder Output, Positive
Direction, Update Rate and Switching Frequency. Status Online will be shown when online
with the FM-3 module.

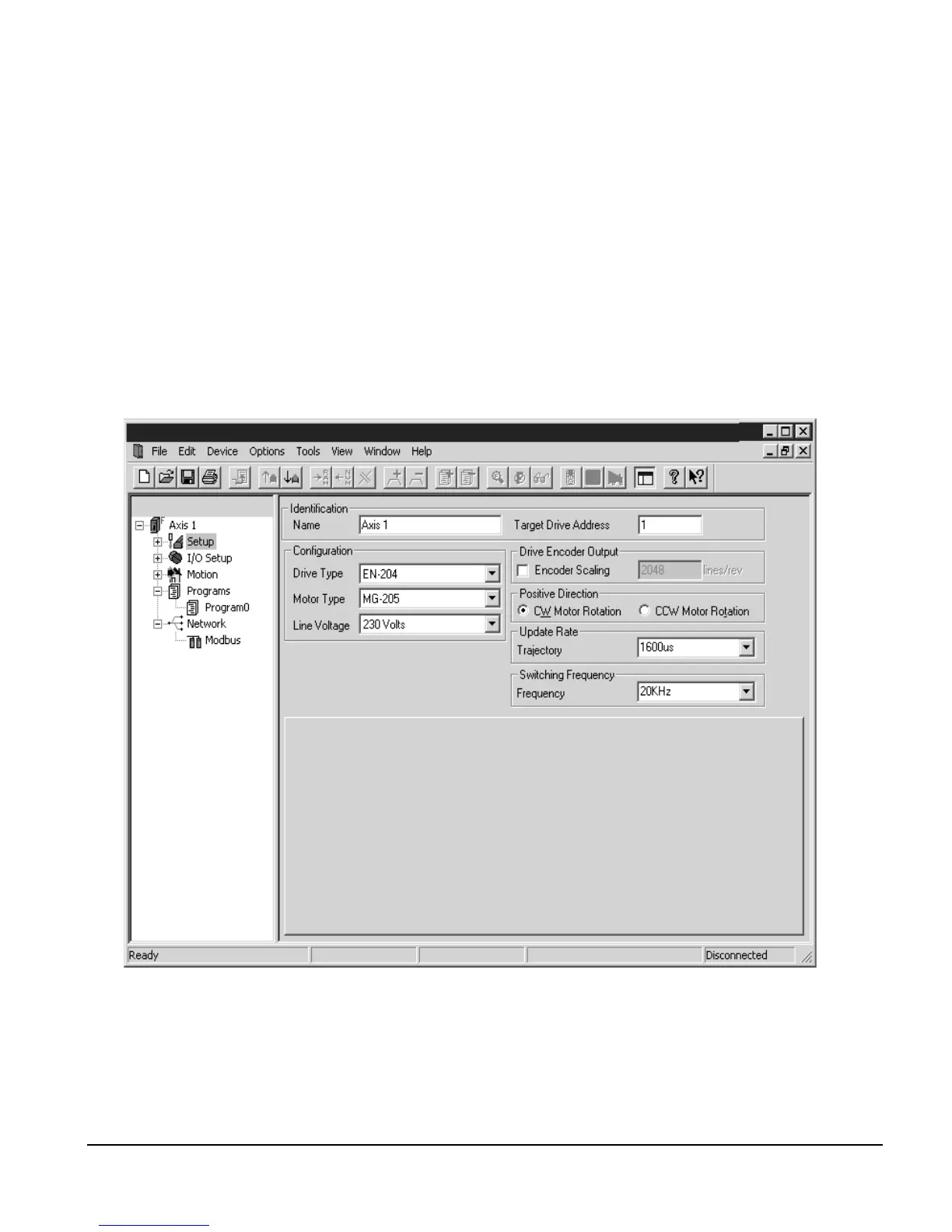

Figure 28: Setup View
Identification Group
The identification group consists of the Device Name and the Target Drive Address.
