FM-3 Programming Module Reference Manual

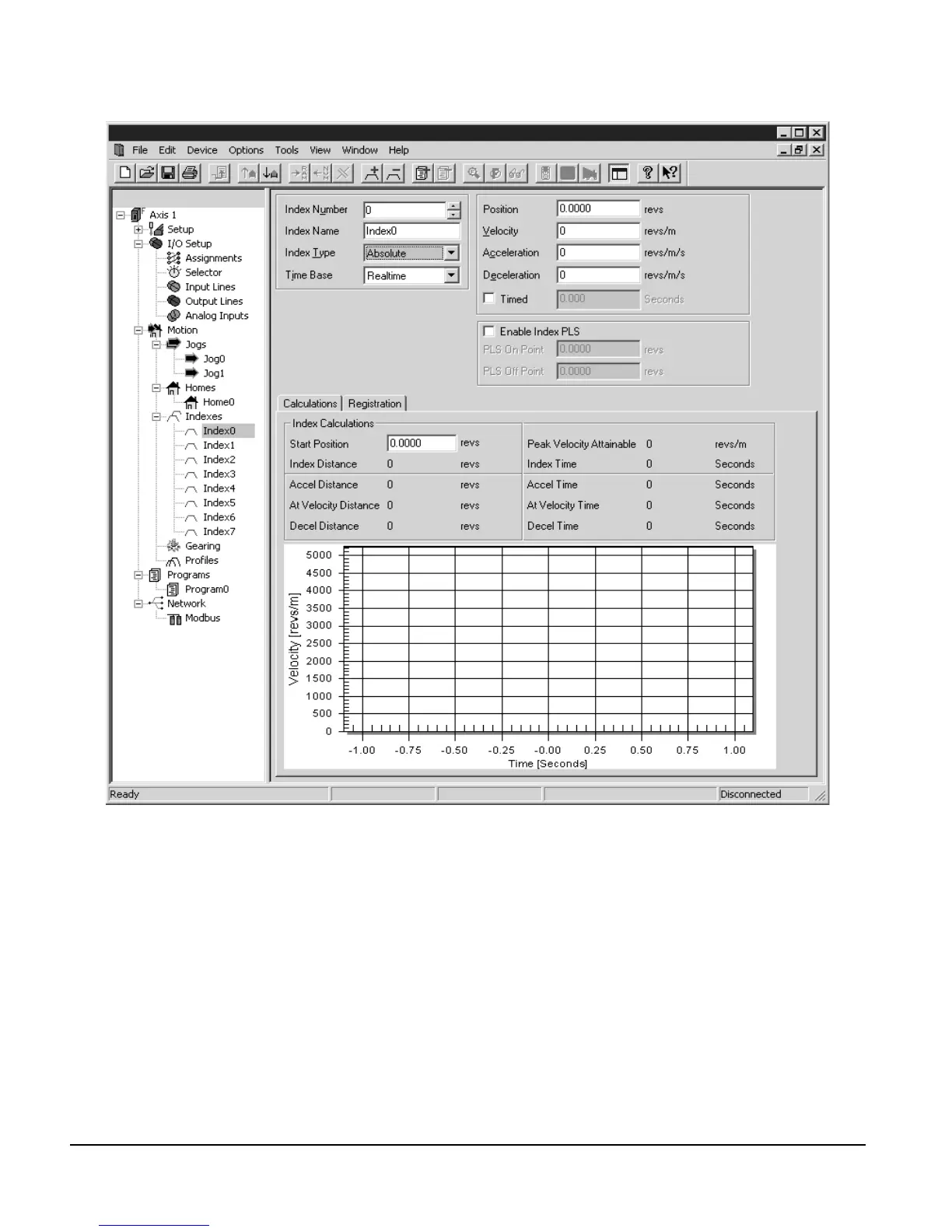

Figure 82: Index Setup View (Absolute Type)
Indexes use the following parameters:
Index Name - Is a 12-character string that gives a descriptive name to an index.
Index Type – Selects the desired type of index from the list box. An Absolute index means
the load will travel to an exact position with respect to the home reference point. This index
will cause motion in either a positive or negative direction depending on current position of
the load with respect to the home reference point. An Incremental index means that the load
travels an exact distance from the start of the index.
