Control Techniques FM-3 User Manual

99
Setting Up Parameters

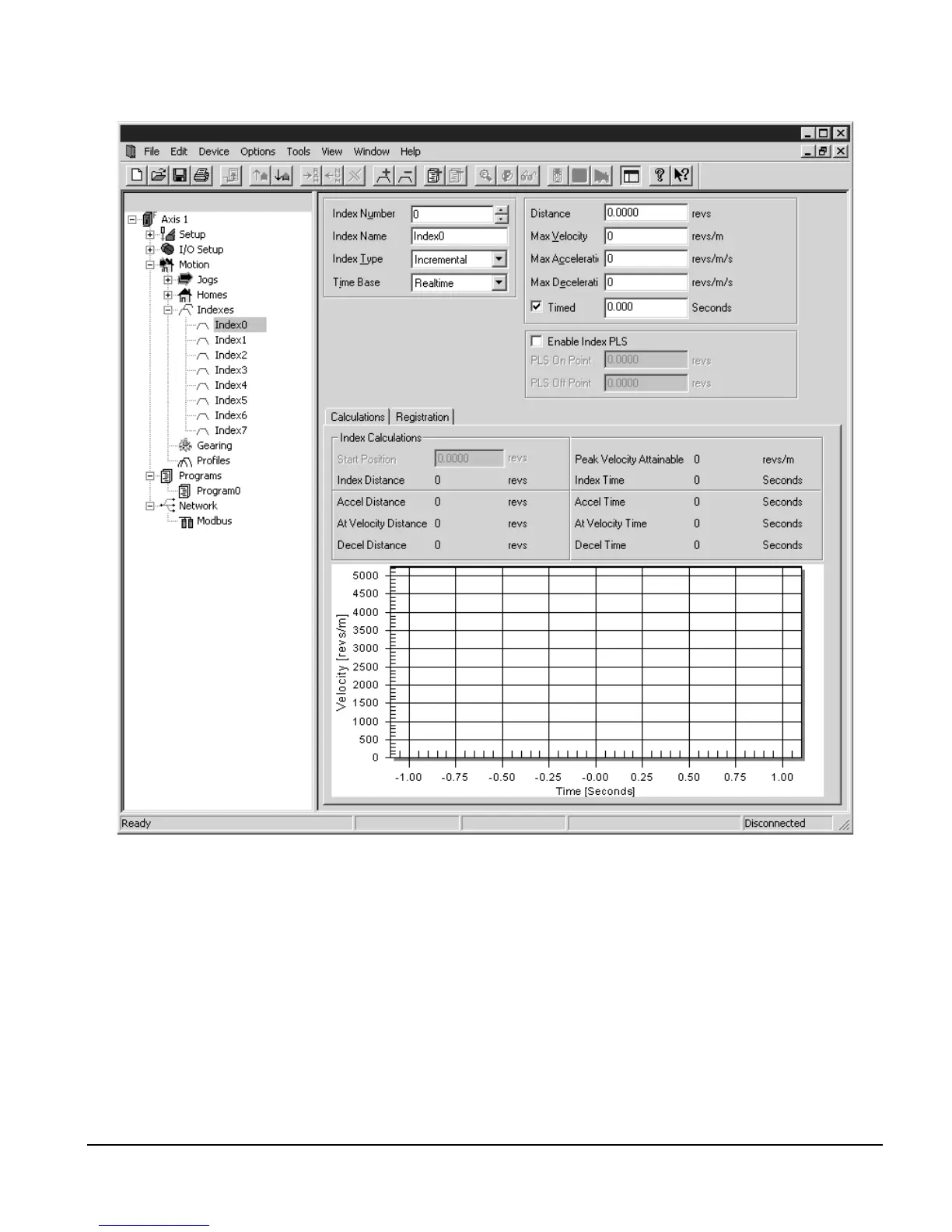

Figure 59: Time Checkbox Enabled
If the values for Max.Velocity, Max.Acceleration, and Max.Deceleration are such that the
distance cannot be covered in the specified time, the Index.ProfileLimited flag will activate
when the index is initiated, indicating the index cannot be performed as desired. The internal
calculation are performed only when the index is initiated, and therefore is the only time the
flag will activate. The Index.ProfileLimited flag will remain active until cleared using the
Index.ResetProfileLimited assignment or program instruction. In this situation, the index
will still operate, but the time will be extended. In other words, the profile will be performed
using the maximums values and still cover the specified distance, but not in the specified
time.
