249
Specifications
Power consumption: 3W from drive power supply.
I/O Supply Voltage: 10-30 VDC.

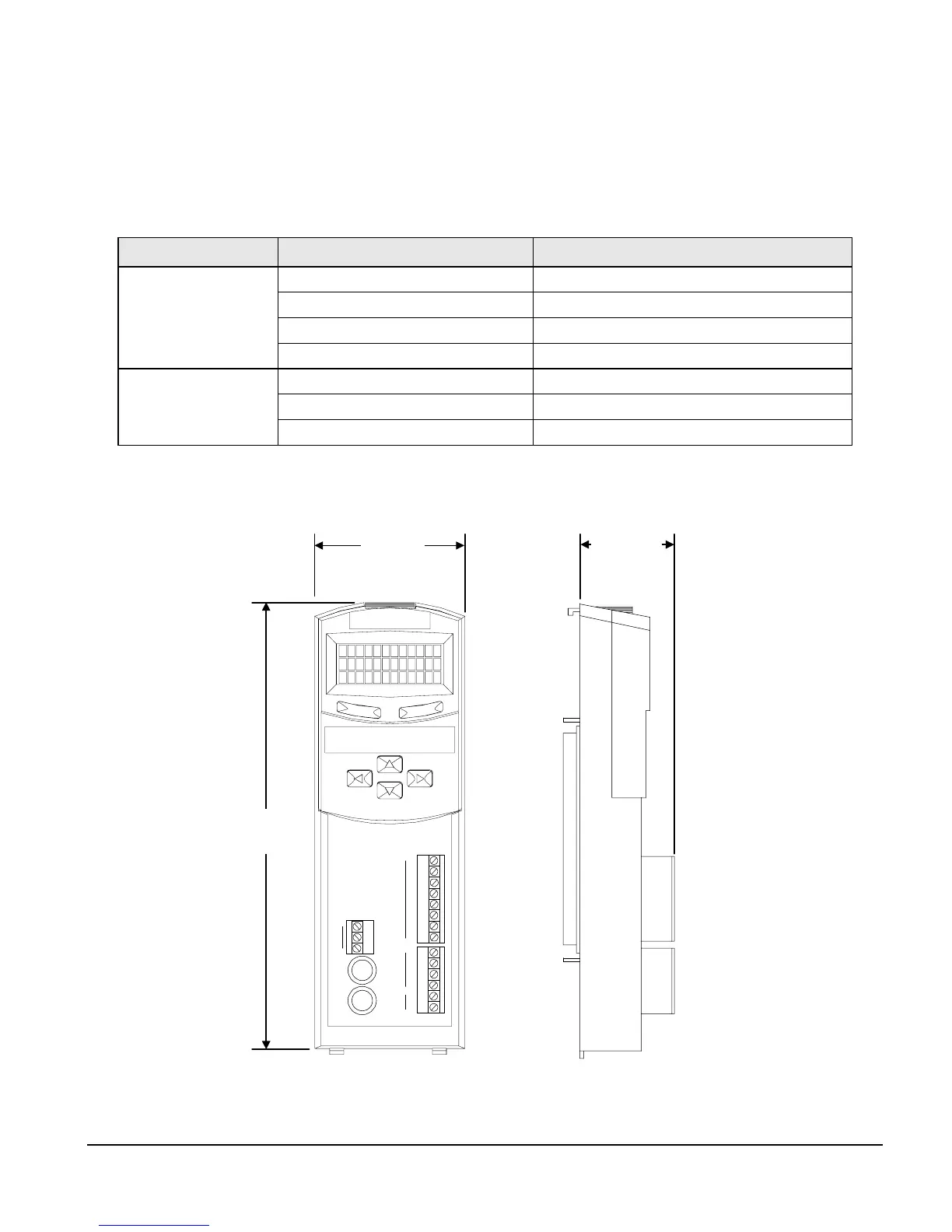

Dimensions and Clearances
Function Electrical Characteristics
Inputs
ON State Voltage 10-30 VDC
ON State Current 2mA-6.5mA
OFF State Voltage 0-3VDC
OFF State Current 0-400µA
Outputs
Max. ON State Voltage I/O Supply Voltage -1.5V
Max. ON State Current 150mA
Max. OFF State Current 100µA
7.187
(182.5)
2.5
(63.5)
1.25
(31.75)
485 +
485 -
SHLD
1
2
3
4
5
6
7
8
1
2
3
4
+
-
Programming Module
Inputs Outputs
10-30
VDC
Exp. I/O
Sync.
Input
Sync.
Output
FM-3 Programming Module Reference Manual
