5
Operational Overview

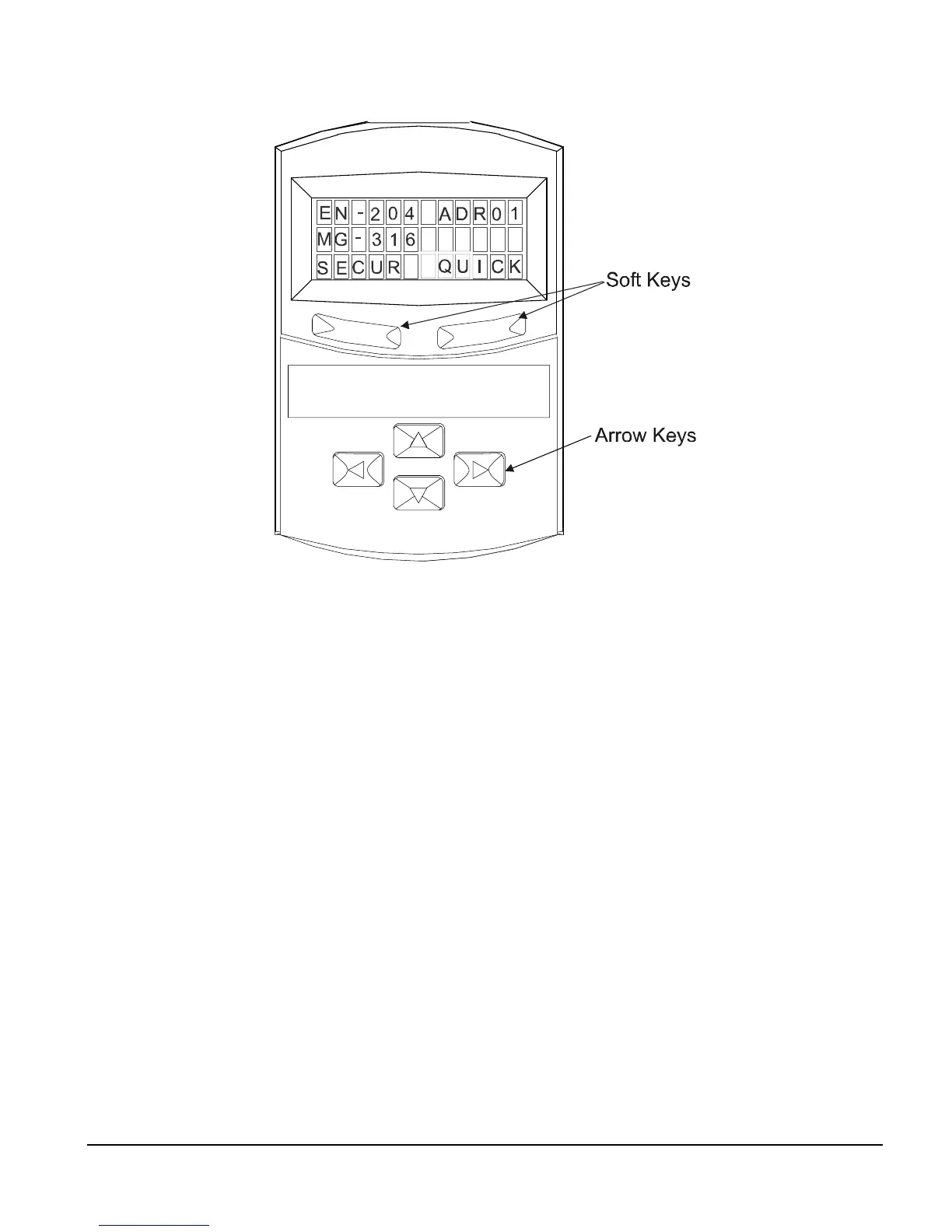

Figure 4: FM-3 Display Screen and Keypad
On the Menu screen, the drive type and axis address are always shown on the top line of the
display. The second line shows the motor type. If a user defined motor is selected, the user
defined motor name will appear. The third line shows two parameter group names, one above
each of the soft keys.
From the Menu screen, the user selects a group of drive parameters to work with. The group
names are scrolled using the left/right direction keys. The groups correspond roughly to the
tabs used by the PowerTools software. The groups are shown cyclically and wrap around.
The drive parameters available with the FM-3 keypad are arranged into seven groups (see list
below). Upon power-up the FM-3 module will display the default parameter groups
“SECUR” (left soft key) and “QUICK” (right soft key).
• QUICK (Quick)
• PROG (Program)
• INDEX (Index)
• HOME (Home)
• JOG (Jog)
• RAMPS (Ramps)
• SECUR (Security)
