Control Techniques FM-3

59
Setting Up Parameters
Faults View

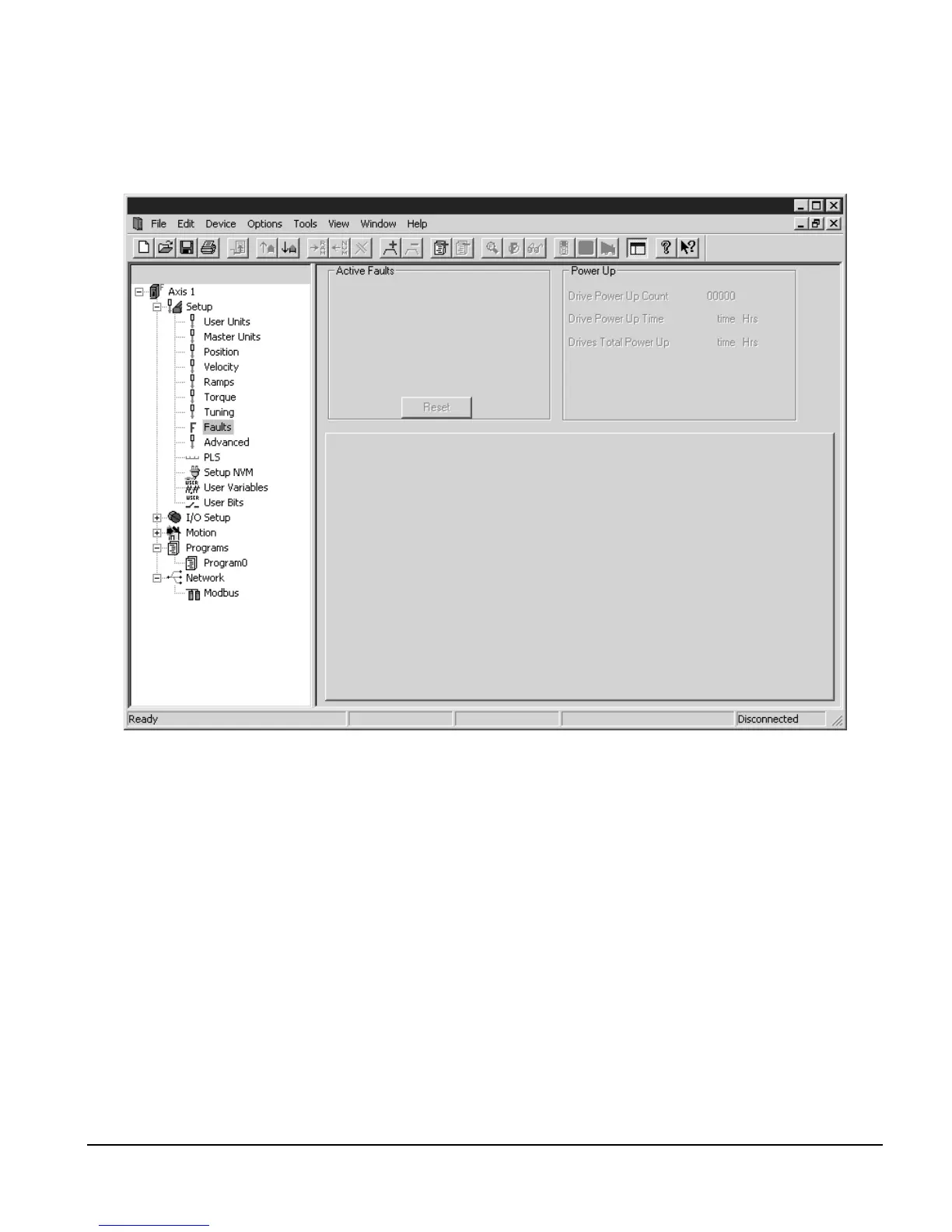

The Faults View displays any active faults. Figure 37 below shows the Faults view.
Figure 37: Faults View
Active Faults Group
The Active Faults group contains the Active Faults window.
Active Faults Window
This window displays any active faults in the system. Those faults which do not require a
reboot can be cleared by clicking on the Reset button. For more detailed fault information,
refer to “Diagnostics and Troubleshooting” on page 225.
