How Indexes Work
An index is a complete motion sequence that moves the motor a specific incremental distance
or to an absolute position. This motion sequence includes an acceleration ramp to a
programmed velocity, a run at velocity, and a deceleration to a stop.

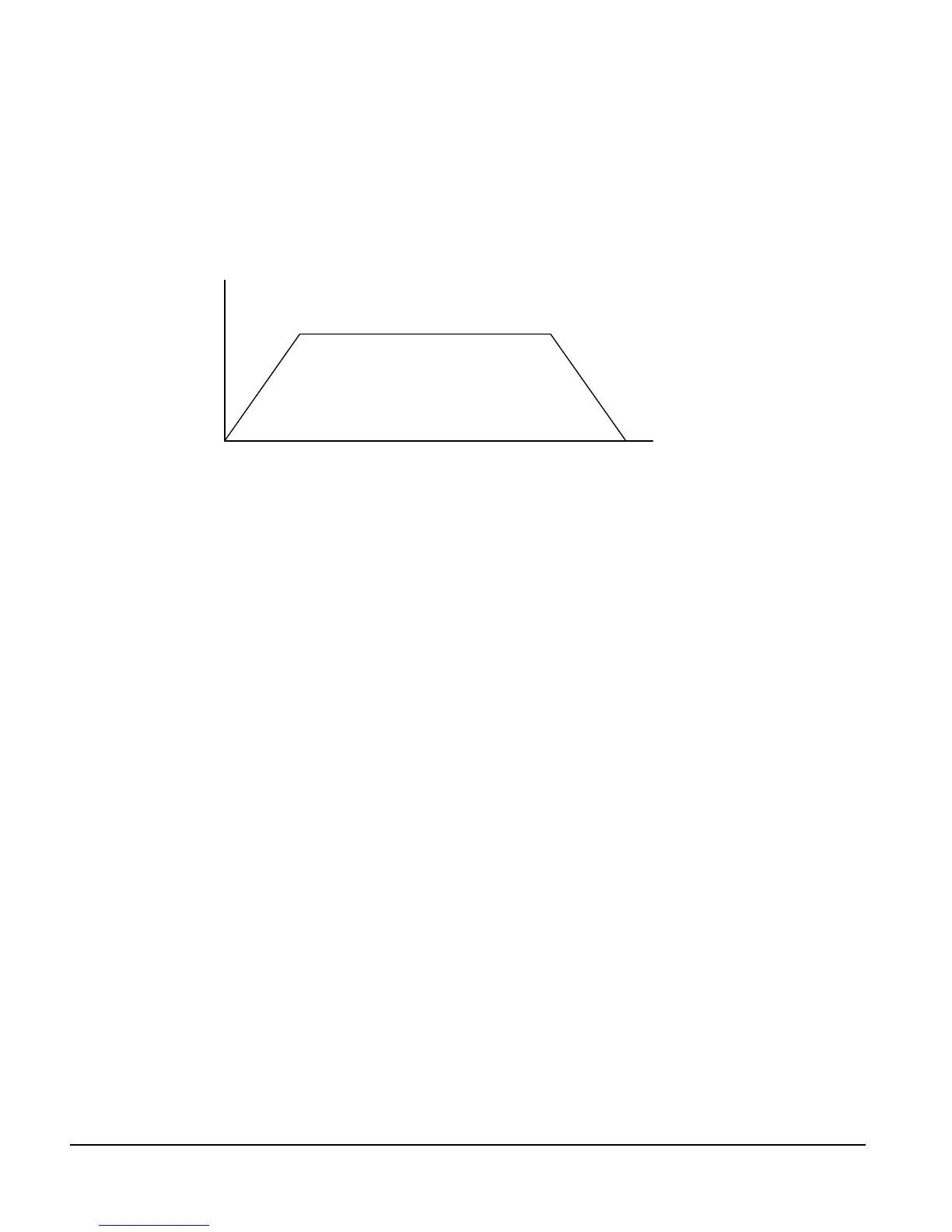

Figure 21: Index Motion Sequence
Velocity
Time
Acceleration
Deceleration
Run at Velocity
