FM-3 Programming Module Reference Manual
User Units View
The User Units View is used to scale the desired application units into known values. All
information for distance, velocity, and accel/decel units are set up here and used throughout
the system setup.
By selecting User Units in the Hierarchy View, the User Units View will appear on the right
(see Figure 30).

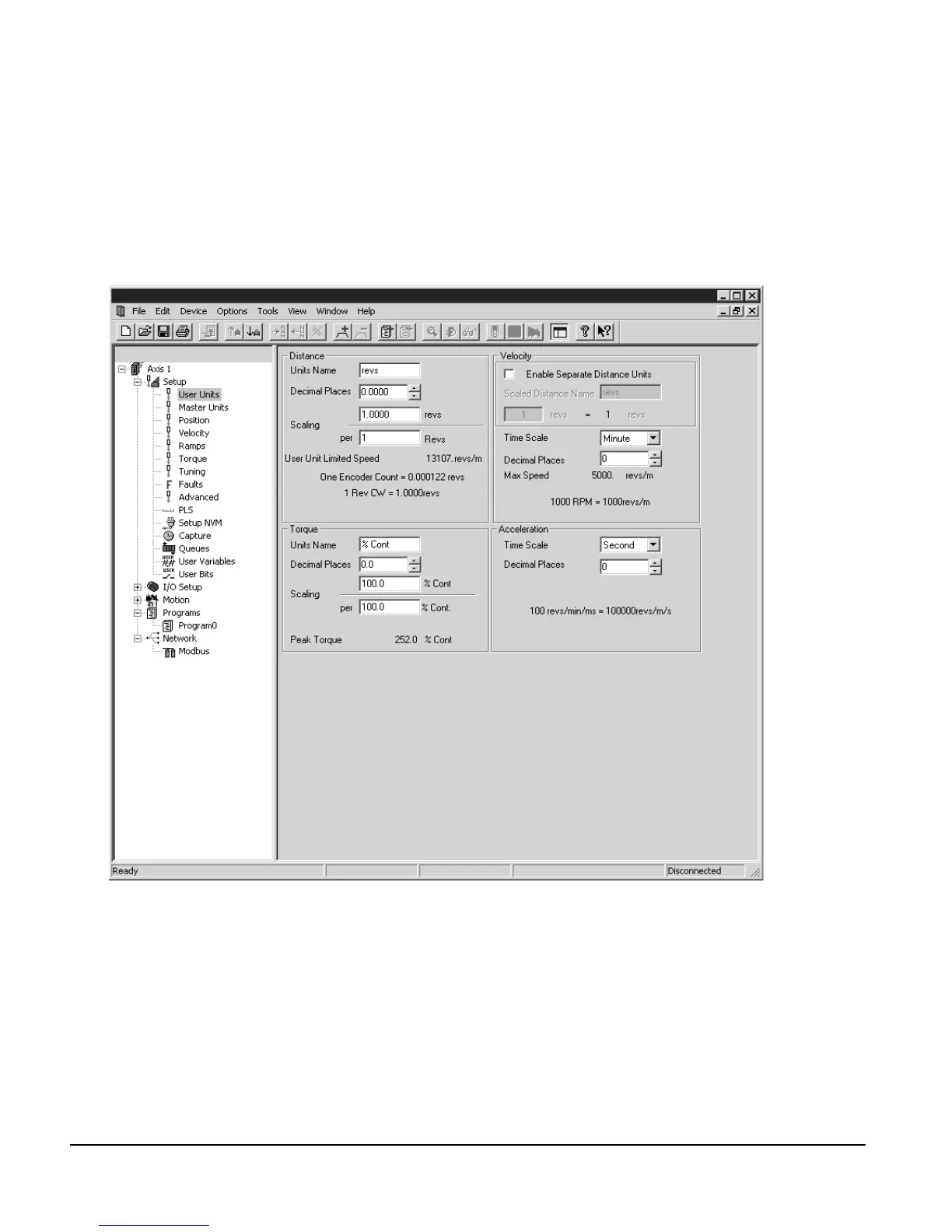

Figure 30: User Units View
Distance Group
Units Name
This is a 10-character name for the distance user units you want to use in your application.
