09
V. ASSEMBLY
1. Install Z-axis Limit Switch Assembly and Z-axis Profiles
Short
1
1
Printer Base x 1
9
9
10
10
Z-axis Profile
(left) x 1
Z-axis Profile
(right) x 1
7
7
31
31
Hexagon Socket
Head Spring Washer
Combination Screw
M5X45 x 5
Z-axis Limit Switch
Assembly x 1

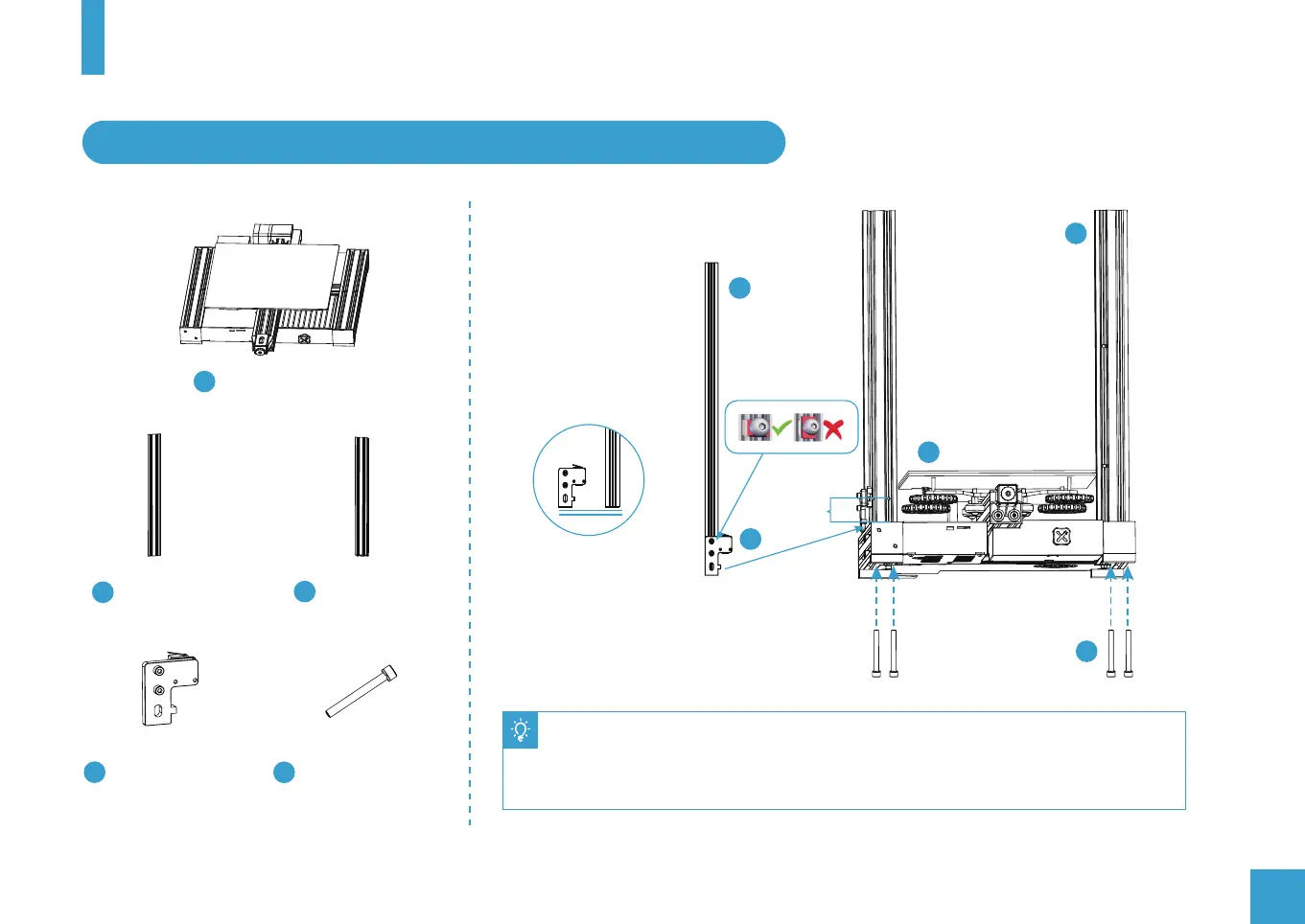

● Slide the Z axis limit switch onto the Z-axis Profile (left) as in the picture above and
loosely tighten. Then use four M5X45 screw to fix the Z-axis profiles to the base.
● Slide the Z axis limit switch down until it touches the base profile and tighten the bolts.
