Creality ENDER-3 V2 User Manual

16
8. Install Filament Holder, Gantry Cover and Extruder Knob
27
14
15
30
16
34
14
Filament Holder
Upright x 1
15
Filament Holder
Pipe and Nut x 1
16
2020 Profile
Cover x 2
34
Extruder
Knob x 1
30
M5T Nut x 2
27
Hexagon Socket
Flat Round Head
Screw M5X8 x 2

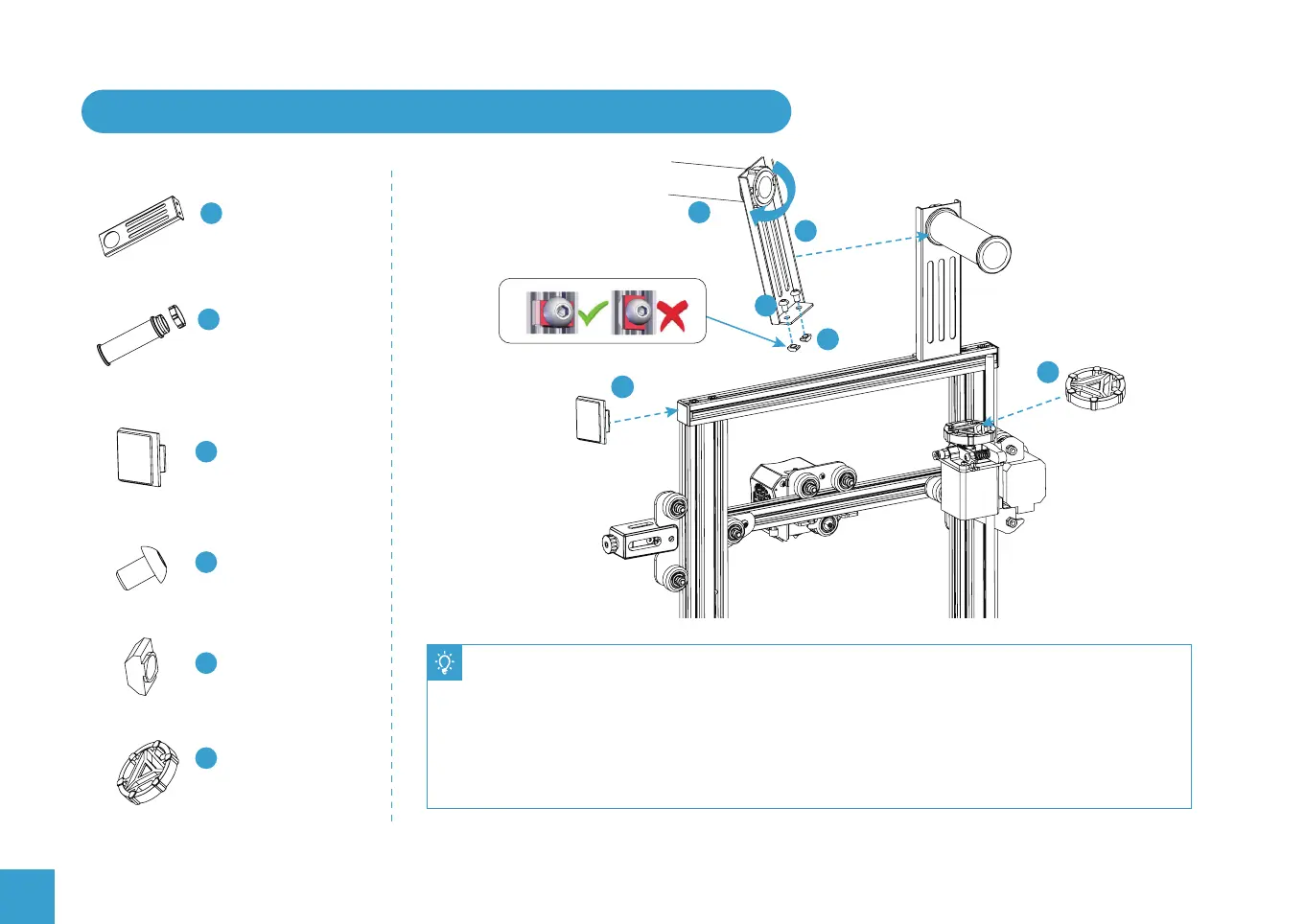

● Insert the M5X8 bolts through the holes on the Filament holder upright and loosely attach the T nuts.
● Align the T Nuts in the top profile groove (The flat side faces towards the back of the printer) and
tighten the nuts, the T nuts will turn in the grove as it tightens.
● Attach the filament holder and secure with the plastic nut.
● Place the extruder knob onto the top of the extruder motor shaft and push the profile covers in on
both sides of the top profile.

Creality ENDER-3 V2 Specifications

General

Build Volume	220 x 220 x 250 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Bed Leveling	Manual
Extruder Type	Bowden
Power Supply	MeanWell 350W
Build Surface	Carborundum Glass
Printing Technology	FDM (Fused Deposition Modeling)
Max. Nozzle Temperature	255°C
Max. Bed Temperature	100°C
Machine Dimensions	475 x 470 x 620 mm
Machine Weight	7.8 kg
Connectivity	USB, SD Card
Supported Materials	PLA, ABS, TPU, PETG
Display Screen	4.3-inch Color LCD
Print Speed	180 mm/s
