Creality ENDER-3 V2 User Manual

10

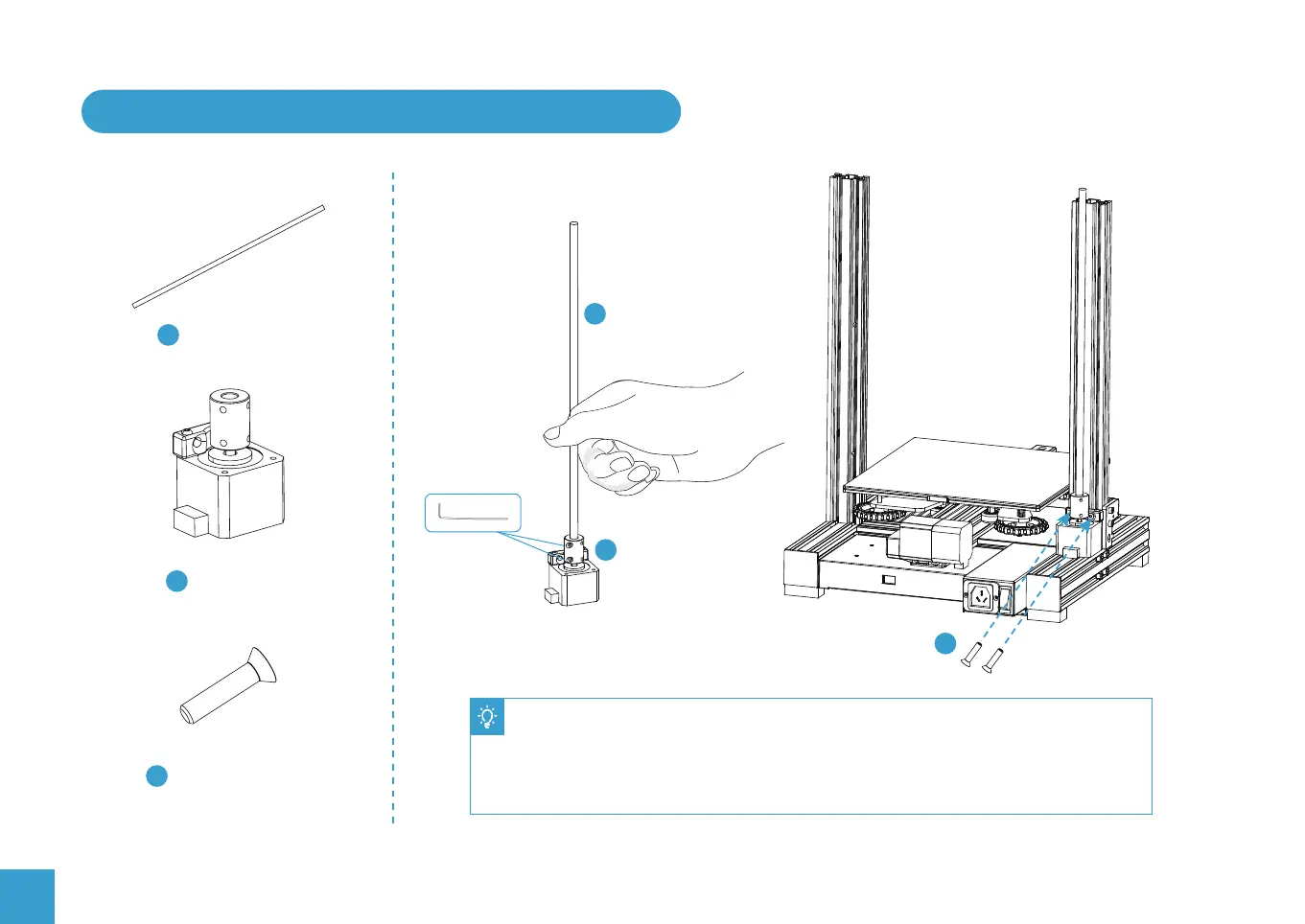

2. Install Z-axis Motor Assembly and Lead Screw
● Attach the motor to the profile using two M4x18 screws it needs to be secure but do
not over tighten.
● Slide the lead screw into the top of the coupler and tighten the set screw to clamp it
securely in place.
6
6
28
28
Hexagon Socket
Countersunk Head
Screw M4X18 x 2
13
13
Lead Screw x 1
Z-axis Motor
Assembly x 1

Creality ENDER-3 V2 Specifications

General

Build Volume	220 x 220 x 250 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Bed Leveling	Manual
Extruder Type	Bowden
Power Supply	MeanWell 350W
Build Surface	Carborundum Glass
Printing Technology	FDM (Fused Deposition Modeling)
Max. Nozzle Temperature	255°C
Max. Bed Temperature	100°C
Machine Dimensions	475 x 470 x 620 mm
Machine Weight	7.8 kg
Connectivity	USB, SD Card
Supported Materials	PLA, ABS, TPU, PETG
Display Screen	4.3-inch Color LCD
Print Speed	180 mm/s
